4.1 CONTROL DESCRIPTIONS __________________________________________________

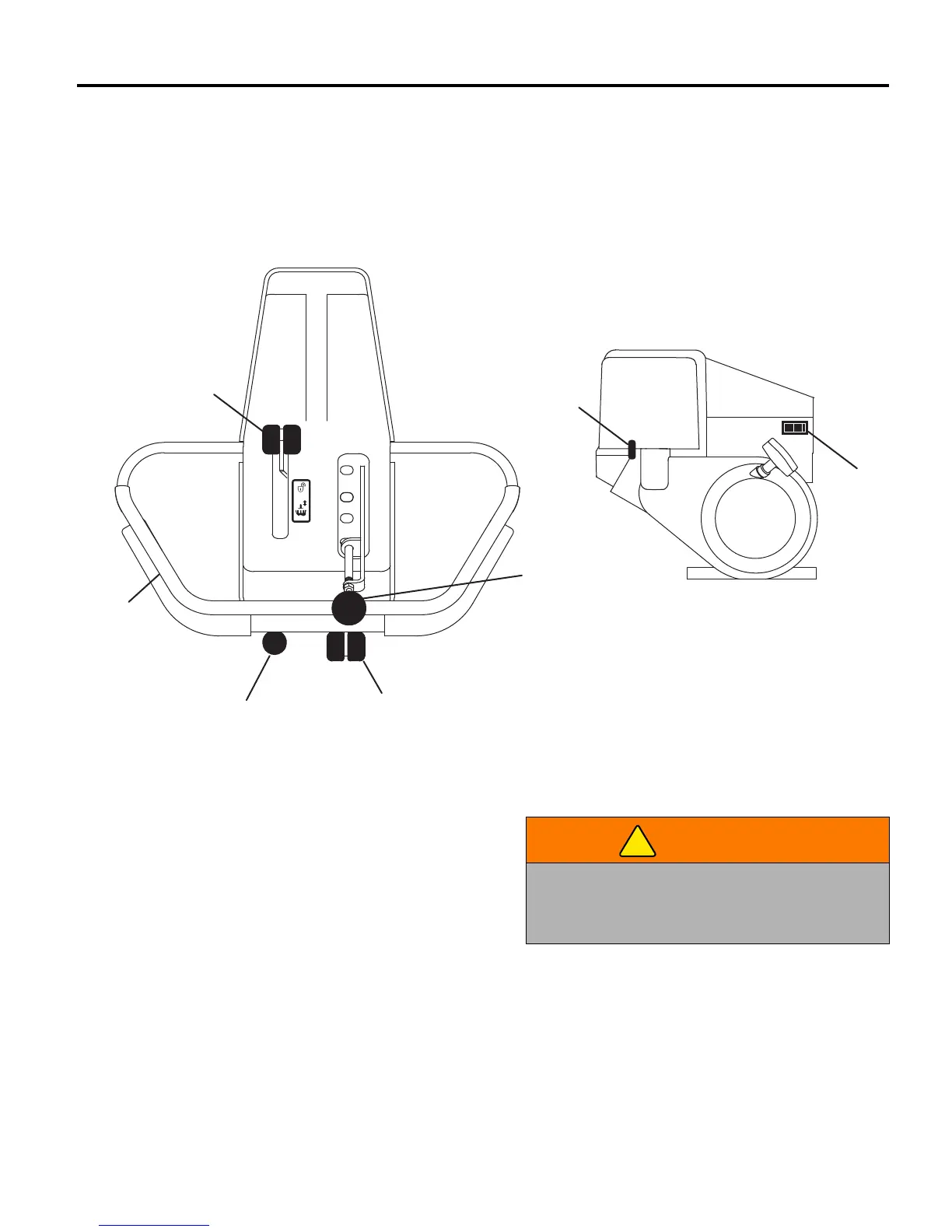

A. Clutch Control Lever
Clutch control lever engages and disengages power
to tine operation clutch and latches OPC handle.
Pull
lever until OPC handle (E) closes for Transport. Pull
handle until it clicks and locks in place for tine
operation. Release the OPC handle to disengage.
B. Throttle
Controls the ground speed of the unit. Position lever
between SLOW and FAST to set desired ground
speed. Fully raise lever to STOP position to shut off
engine.
C. Shift Control Lever
Four position lever used to operate different
functions of machine.
R (Reverse): Engages reverse traction. Tine
operation is locked out.
N (Neutral): Disengages both traction and tine
operation.
H (High): Engages transport speed only. Tine
operation is locked out.
L (Low): Engages aerating traction speed. Tine
operation can be engaged.
A
L
H
N
R
C
D
B
E
F
G
WARNING
Damage to turf and/or equipment may occur if aerator
head is not fully raised before engaging OPC handle
with shift control lever (C) in R (Reverse) or H (High)
position.
