Jacobsen JMP653F User Manual

en-51
CONTROLS 5

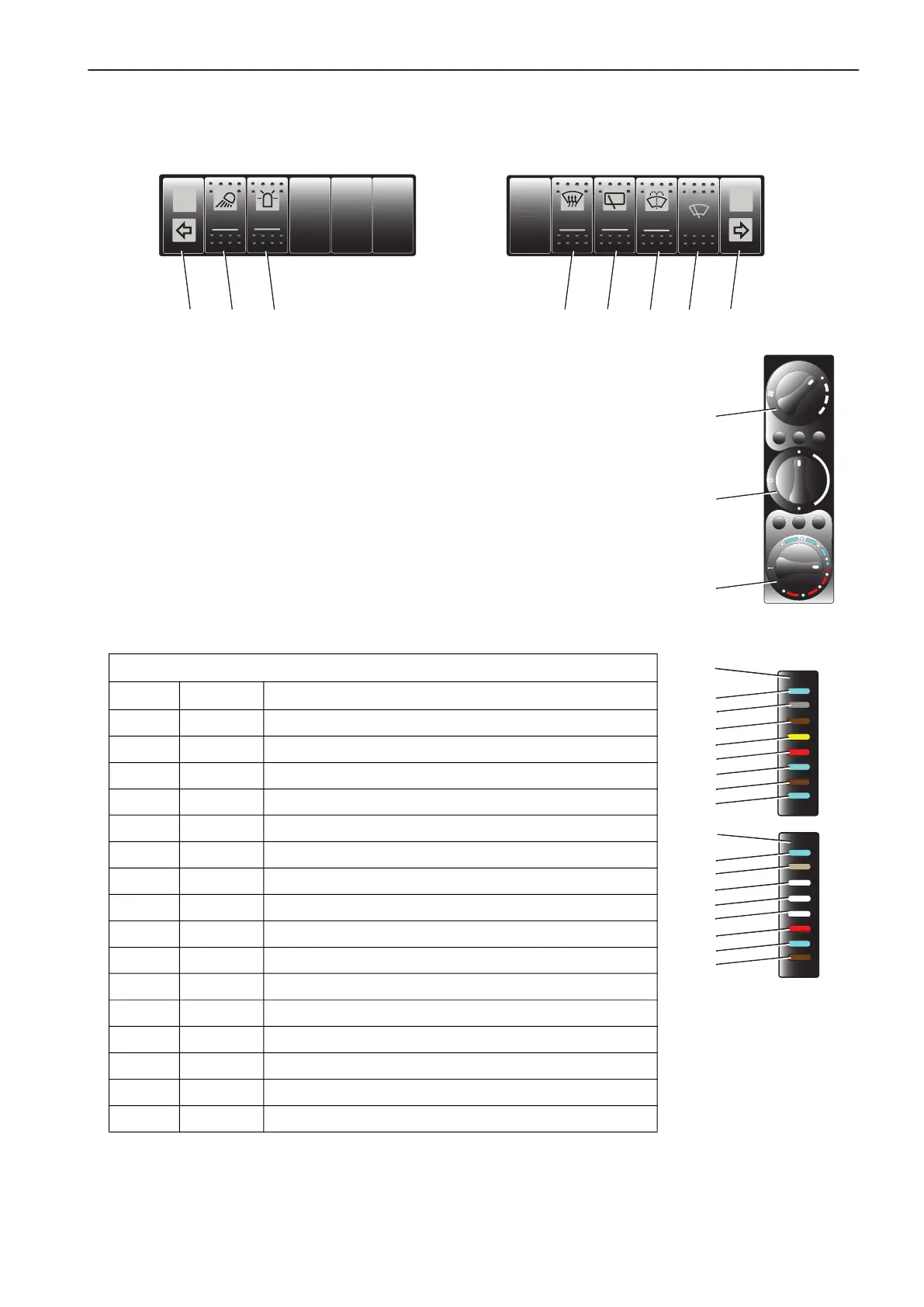

5.19 CABIN CONTROLS ____________________________________________________
A
B
CH
G
F
E
D
3
2
1
0
A
/
C
O
F
F
F
O
F
15
25
7.5
20
10
15
7.5
15
15
5
10
15
7.5
J
K
L
N
8
7
6
5
4
3
2
1
8
7
3
2
1
6
5
4
M
A Left Turn Signal Lamp
B Working Lights Switch (Optional)
C Beacon Switch
D Front Screen De-Mist Switch
E Rear Screen Wiper Switch (Optional)
F Front Screen Wash Switch
G Front Screen Wiper Switch
H Right Turn Signal Lamp
J Fan Control
K Air Conditioning Control
L Temperature Control
M Fuse Holder
N Fuse Holder
FUSE HOLDER
Fuse Rating Protected Circuits
M8
15A Wiper Front
M7
25A Front Screen Heating
M6
7.5A Radio (15)
M5
20A Working Lights / Locater Lighting Left
M4
10A Wiper Rear / Marker Lights
M3
15A Air Condition (Fan Condenser)
M2
7.5A Air Condition
M1
15A Air Condition (Fan)
N8
15A Low Beam
N7
5A Parking Lights (15)
N6
- -
N5
- -
N4
- -
N3
10A Radio (30) / Interior Light
N2
15A Beacon
N1
7.5A Air Condition (Enable Signal Compressor)
