Jacuzzi J-200 User Manual

J-200

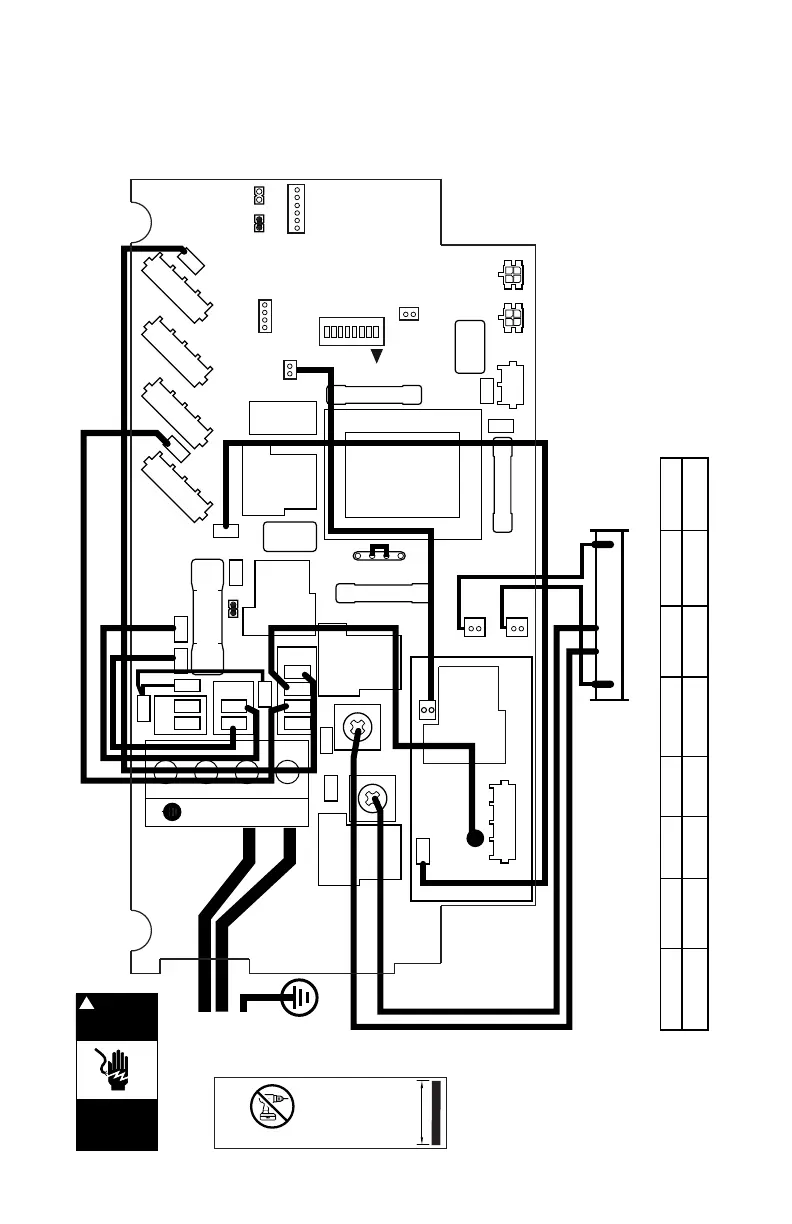

16.0 Circuit Board Diagrams
16.1 2-Pump Models
A. This wiring diagram is used for the 240V 3-Wire 60 Hz spa models.
DANGER
Turn power off
before servicing. This
task should only be
performed by a quali-
fied technician.
!
RISK OF SHOCK OR
ELECTROCUTION!
EXPANDER X-P
J4
PUMP 2
K1
J6
J2
J7
EXPANDER X-P PN 59232
LOCATION DEVICE VOLTS AMPS FROM TO FROM TO
J6 PUMP 2 240V 12A J7 AREA 3 J4 J55
SENSOR A SENSOR B
5.5 kW HEATER
BLK RED
GRN
1A SLO-BLOW
F4
1A SLO-BLOW
F5
0.1A SLO-BLOW
F3
TB1
1 2 3
K5 K1
K2
K4
K3
F6 30A 250VAC
T1
J16 J17
J23
SERIAL
J5
REMOTE
RELAY BOARD
J28 AUX FRZ
J35
J34
K7
K12
120V 120V
240V
J24
J9
PUMP 1
J19
J21
OZONE
J33
A/V
1
2
J4
J8
J18
J55
J3
J6
J51
J1
J27
J110
J13
HEATER 1
J2
J7
3
J20
J10
J12
J88
J22
ON
S1
J31 J30
J109
J15
LIGHT
J52
J46
J38
J11
HEATER 2
1
8
J56
J57
UV
HAND TIGHTEN WITH PHILIPS SCREWDRIVER.
WIRE STRIP LENGTH
11/16” (0.69”, 17.5mm)
BARE METAL
56
