JWI-700C 4
2) ā key Decimal point ; toggles between upper limit and lower limit setting when HI-LO-OK
function is enabled .(see 7-2-1)
3) PRINT key Outputs data when Prt.Pr (print stably) is selected as the print mode.
4) ZERO key Zeros the display (within 2% of max.capacity) or cancels Tare action.
5) TARE key Inputs the weight of the object on the weighing pan as a Tare value ; Inputs
the indicated value entered via the numeric keys as a pre-set Tare value ; cancel tare
action.
6) CE key Clears the indicated input values.
7) MC/CK key Short press deletes accumulation records; long press to initial Upper
& Lower Quantity Limit setting.
8) MR key Recalls and displays the total Accumulation data (weight, total count and
number of weightments ) and the first 10 records in details.
9) UWS key Inputs the indicated unit weight value entered via numeric keys
10) M+ key Adds the indicated weight or piece count value into Accumulation
memory.
11) SMPL key Short press enters the sampling mode.

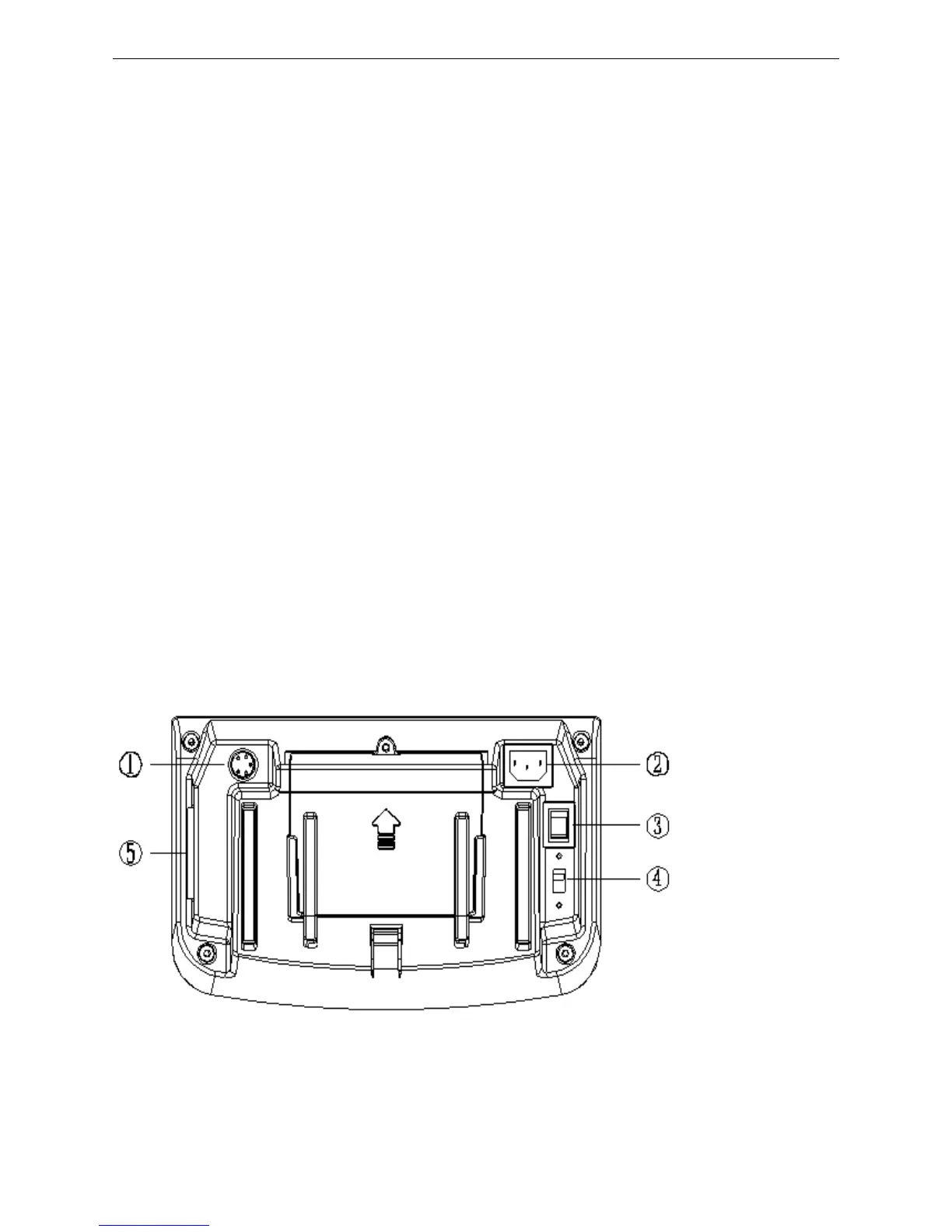

3-3 Rear Panel
1) Port for connecting load cell.
2) power socket
3) power ON/OFF switch
4) Two-stage switch(110V or 220V)
5) RS-232 port: Serial interface port (computer, printer and Light Tower)
