jcb 8020 CTS User Manual

Attachments
Quickhitch
94 9821/6100-4 94

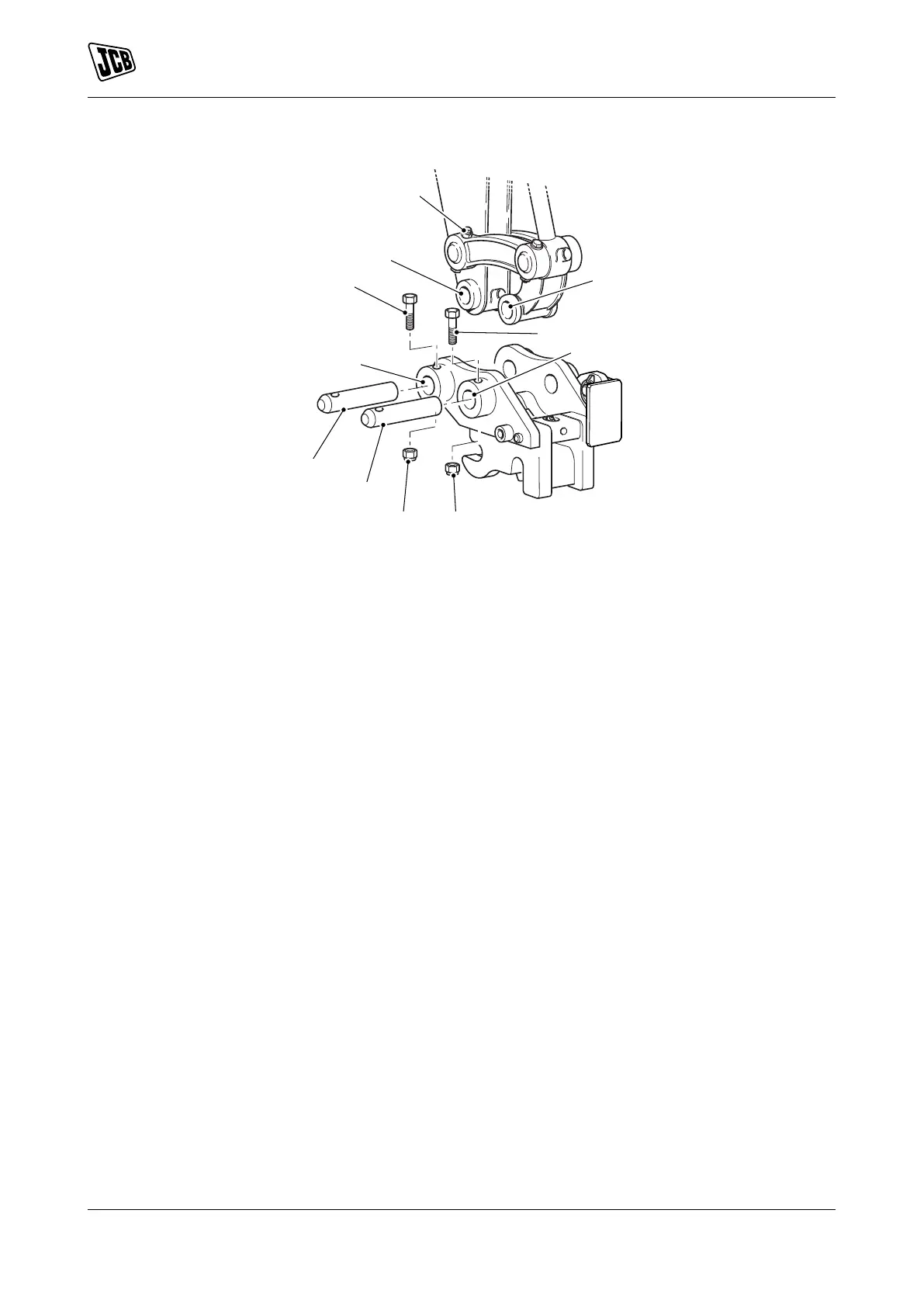

Figure 80.
A
B
C
D
E
F
G
H
J
K
L
A Nut (tipping lever - locking bolt) B Hole (tipping link)
C Bolt (tipping link - pivot pin) D Hole (Quickhitch)
E Nut (tipping link - pivot pin) F Nut (dipper - pivot pin)
G Pivot pin (tipping link) H Pivot pin (dipper)
J Hole (Quickhitch) K Bolt (dipper - pivot pin)
L Hole (dipper arm)
Removal
The removal of the Quickhitch is a reversal of the installation procedure. Pay particular attention to safety
notices.
Maintenance
Examine the Quickhitch daily for broken or missing parts.
Remove any debris from the latch hook locking mechanism.
If the Quickhitch is cleaned by high pressure water, always grease the latch hook pivot pin. Always grease the
latch hook pin every week.
