Operation
Operating Levers/Pedals
61 9821/6100-4 61
Swing Pedal
CAUTION The slew pedal must be in the locked position when not in use.

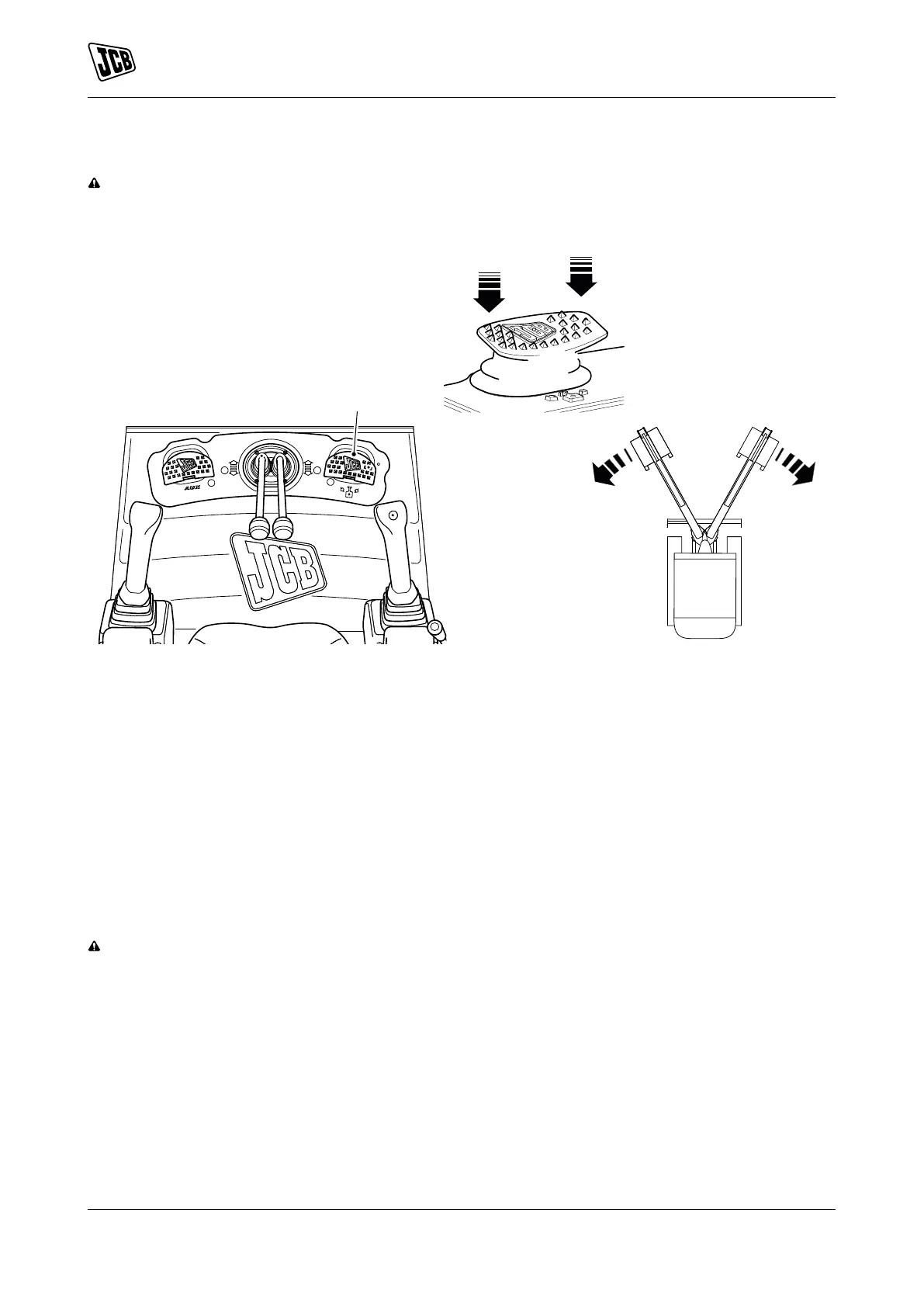

Figure 50.
A Swing left B Swing right
C Swing pedal
To swing the boom to your left:
• Unlock the swing pedal. (Pivot the swing pedal forward into its operating position).
• Push the swing pedal to the left side.
• Release the pedal when the excavator end has reached the required position.
To swing the boom to your right:
• Unlock the swing pedal. (Pivot the swing pedal forward into its operating position).
• Push the swing pedal to the right side.
• Release the pedal when the excavator end has reached the required position.
Dozer Blade Controls
Notice: Before operating the dozer blade, make sure that large rocks or other objects will not jam the dozer
mechanism.
The dozer is operated by a single control lever on the right side of the cab.
The lever is spring loaded to the central position. In this position the dozer will not move.
To raise the dozer pull the lever backwards. At the required position release the lever.
To lower the dozer push the lever forward until an increased resistance is felt and the blade moves. At the
required position release the lever.
