jcb 8020 CTS User Manual

Operation
Preparing for Travel
48 9821/6100-4 48

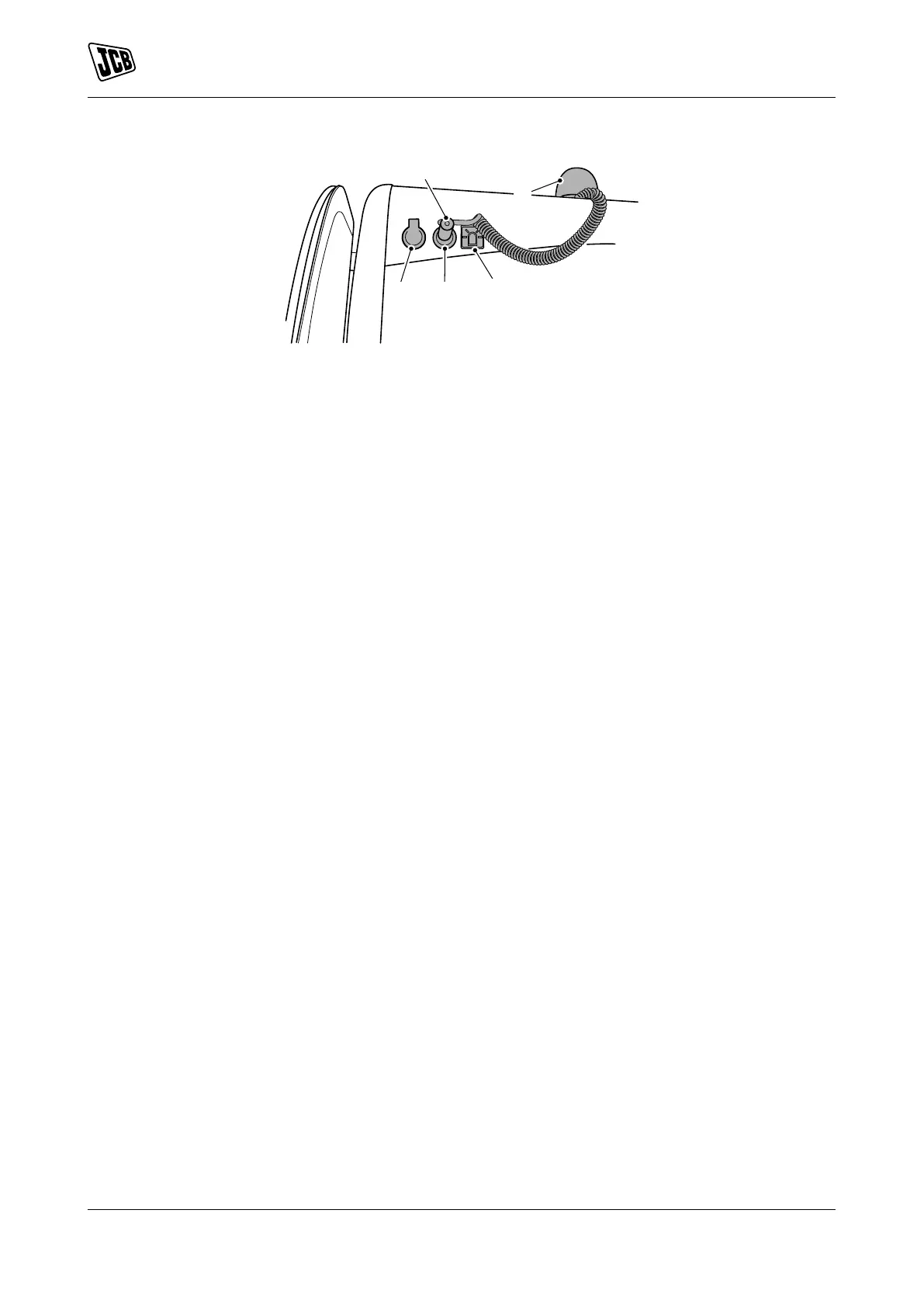

Figure 34.
A
B
E
C
D
A Beacon B Plug
C Socket for green beacon D Socket for amber beacon
E Green beacon label
1. Put the beacon on the cab roof. A magnetic base keeps the beacon in position.
2. Put the plug into the socket on the cab roof.
3. Use the beacon switch in the cab on the console to operate the amber beacon. The indicator light in the
switch illuminates when the beacon is operating. Refer to Figure 34.
The green beacon will only illuminate when the seat belt is fastened.
