Operation

Instruments

54 9821/6100-4 54

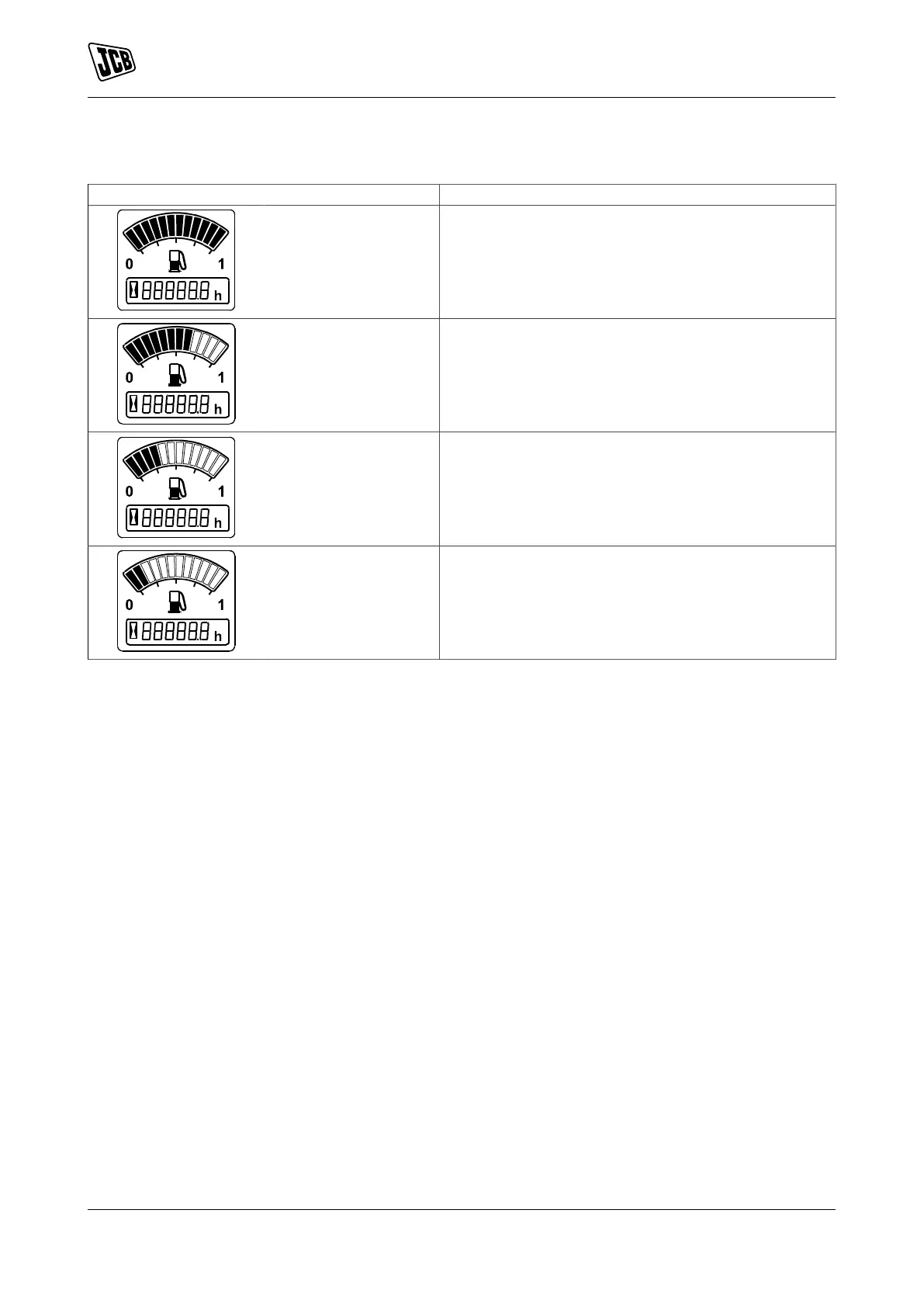

Table 5. Bars

Number of bars Description

Full Tank All bars illuminated. Pump symbol illuminated.

4 bars to Full Pump symbol illuminated. All bars illuminated and re-

ducing as level drops ie. 11 bars, 10 bars, 9 bars etc.

4 bars to 3 bars Buzzer gives 3 short beeps. Pump symbol starts to

flash.

3 bars to 1 bar Pump symbol remains flashing. 1 bar illuminated (nearly

empty). 0 bars illuminated (tank empty).

The flashing of all fuel level bars and the filler pump symbol indicates a fault in the fuel sender circuit. Contact

your JCB distributor.
