Optional Attachments
Buckets
273 273
9811/9950-1
4 Apply a downward pressure on the bar to release the
buckets' rear pivot pin from the latch hook,
K
Fig 108. ( T 272) at Z. Remove the tommy bar
from the Quickhitch.
5 Rest the bucket on the ground.

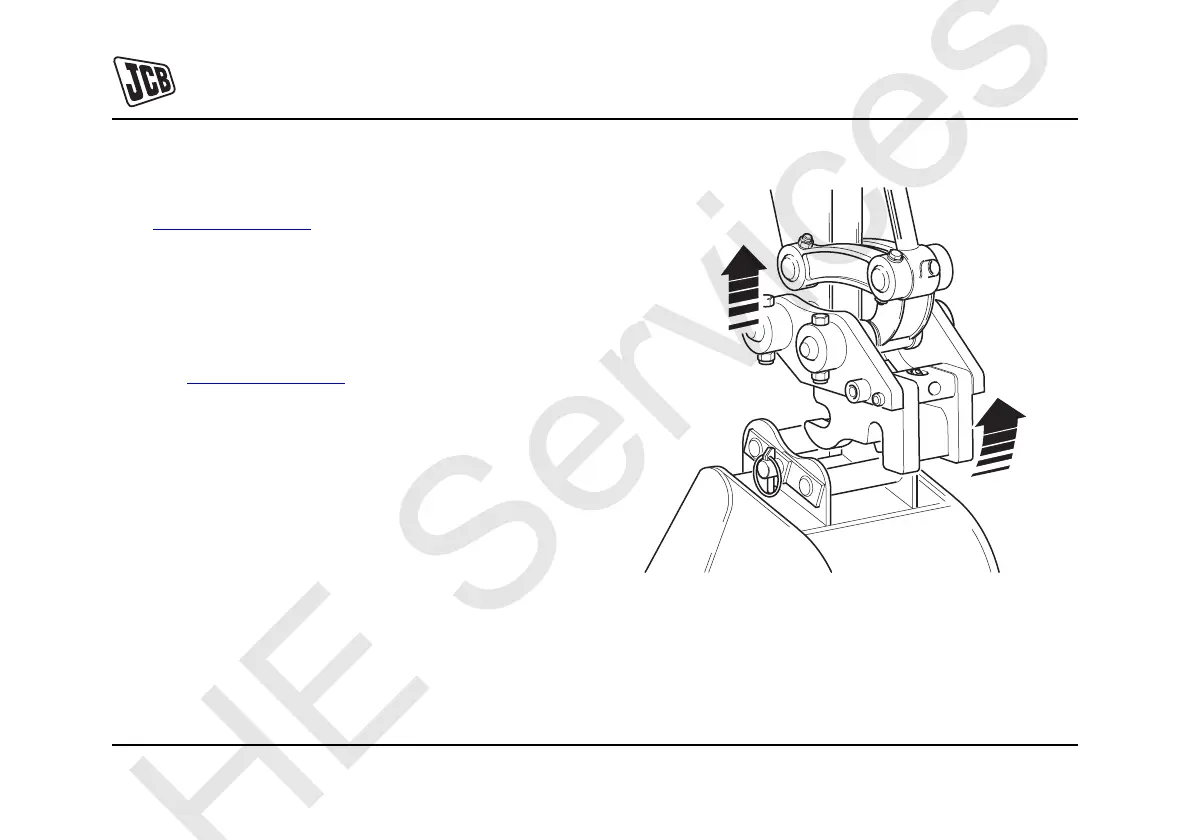

6 Slowly roll the Quickhitch back and simultaneously
raise the dipper arm to release the buckets' front pivot
pin, K
Fig 109. ( T 273) at Y.
Note: Quickhitch procedure applies to most attachments.
See your attachments instructions for specific procedures.
