Maintenance
Engine
97 9831/7750-1 97
Refer to: Fluids, Lubricants and Capacities (Page 135).
8.3. Replace the dipstick.
8.4. Remove the dipstick.
8.5. Check the oil level, if necessary add more oil.
8.6. Replace the dipstick
8.7. Replace the filler cap.
9. Close and secure the engine cover (if applicable).
Replace
WARNING Before draining the oil make sure you loosen the oil filler plug or the breather (if installed), and
wait until the internal pressure is completely released. Remove the oil draining plug and drain oil only when
the pressure is completely released.
CAUTION Keep your face away from the drain hole when removing the drain plug.
CAUTION It is illegal to pollute drains, sewers or the ground. Clean up all spilt fluids and/or lubricants.
Used fluids and/or lubricants, filters and contaminated materials must be disposed of in accordance with
local regulations. Use authorised waste disposal sites.
Remote Oil Drain
Remote oil drain plug is located on the left hand side of the front frame. Refer to Figure 52.

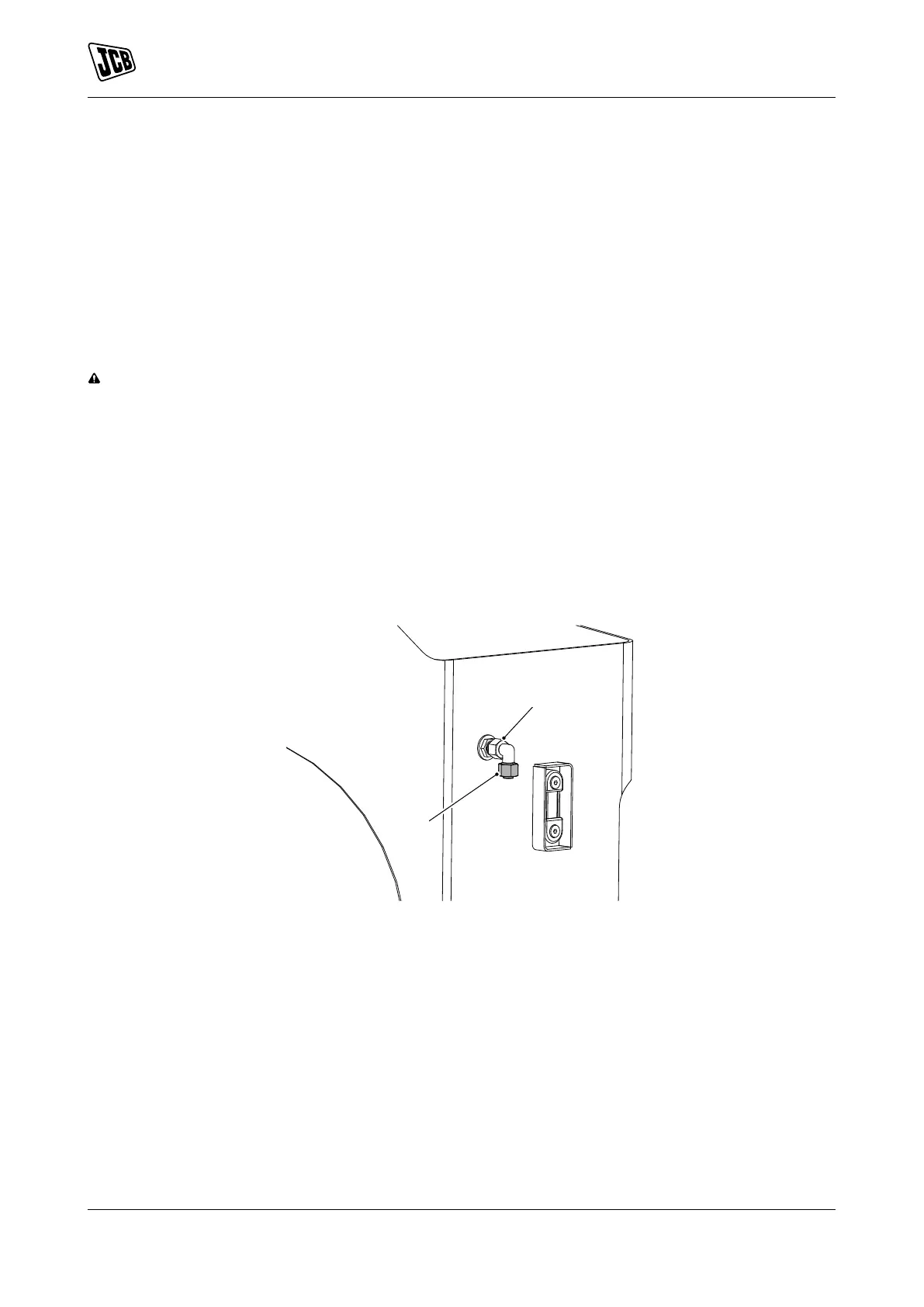

Figure 52.
A Drain fitting B Drain plug
1. Make the machine safe.
Refer to: Maintenance Positions (Page 87).
2. Put a container with of a specific capacity below the drain fitting.
Volume: 20 L
3. Remove the plug from the drain fitting and allow the oil to drain into the container. Refer to Figure 52.
4. Clean and install the plug.
