Operation
Instruments
46 9831/7750-1 46
Instruments
Instrument Panel
The instruments and warning lights are grouped together on an instrument panel.
When a warning light comes on an alarm will sound (depending on severity of the condition). The only way to
cancel the alarm is to set the ignition switch to position '0'. The problem can then be rectified.
Do not use the machine if it has a fault condition, or you may damage the engine and/or the transmission.

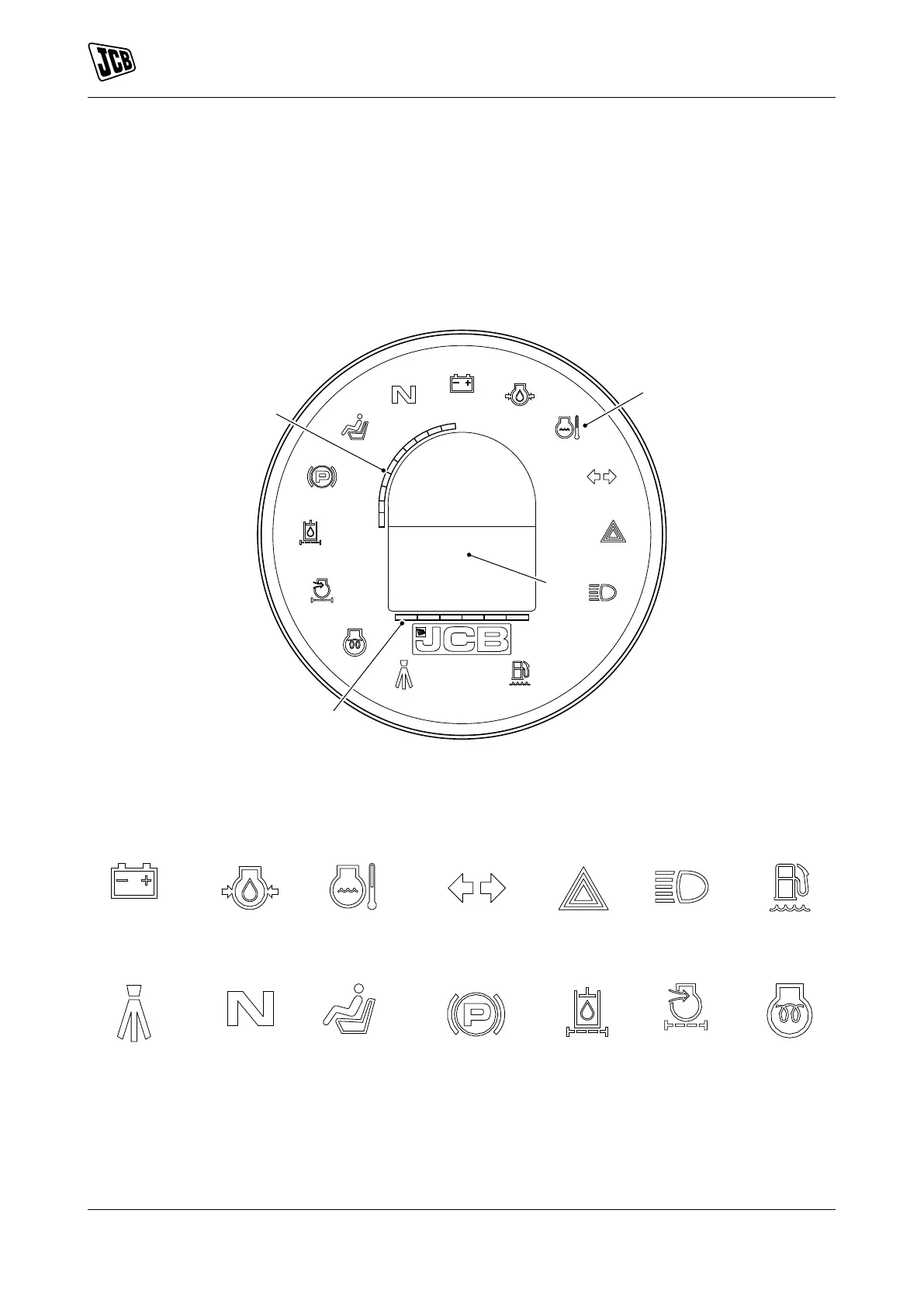

Figure 24.
A Fuel level indicator bar B Warning and notification symbols
C Hourmeter D Battery voltage indicator bar
Warning and notification symbols
Figure 25.
