Jenny Science XENAX Xvi 48V8 User Manual

74

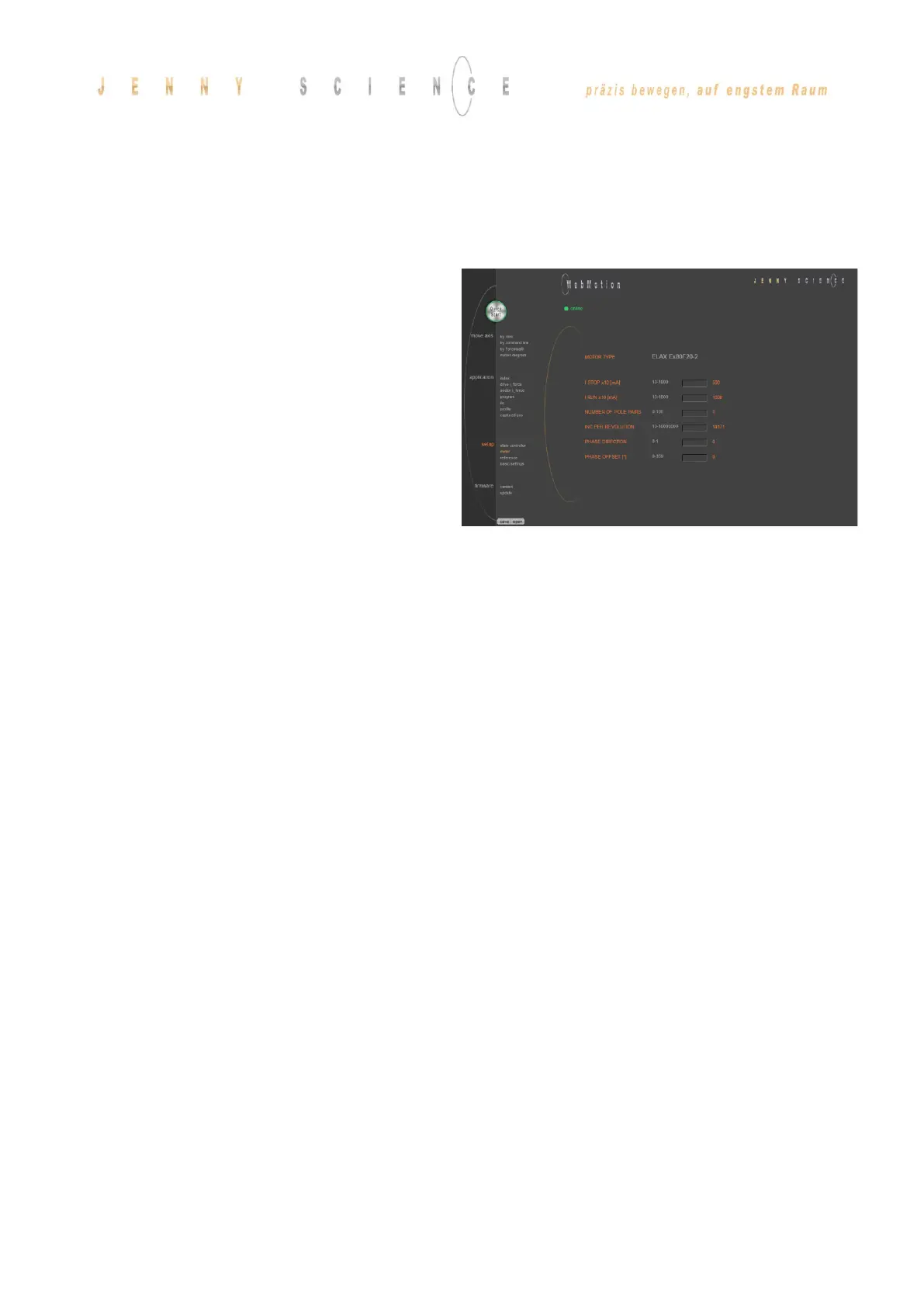

10.17 Motor
10.17.1 Motors LINAX® and ELAX®
MOTOR TYPE
The connected motor type of LINAX® and ELAX®
series will be recognized and shown automatically.
I STOP
Continuous current limitation in standstill.
I RUN
Continuous current limitation while moving.
NUMBER OF POLE PAIRS
LINAX® Lx and ELAX® Ex linear motor pole pairs = 1
INC PER REVOLUTION
Number of encoder increments per revolution.
Linear motor axis:
Lxc 44F04, INC PER REVOL = 12'000
other LINAX® products Lxc, Lxe, Lxu, Lxs,
INC PER REVOL = 24'000
ELAX®, INC PER REVOL =14’171
PHASE DIRECTION
Direction of phase control
U, V, W or V, W, U, depending on motor type.
LINAX® / ELAX® linear motor, PHASE DIR = 0
PHASE OFFSET
Correction of electrical angle, in accordance with the
orientation of the coil to the magnet. Value for all
LINAX® and ELAX® products and the most of rotary
motors PHASE OFFSET = 0
