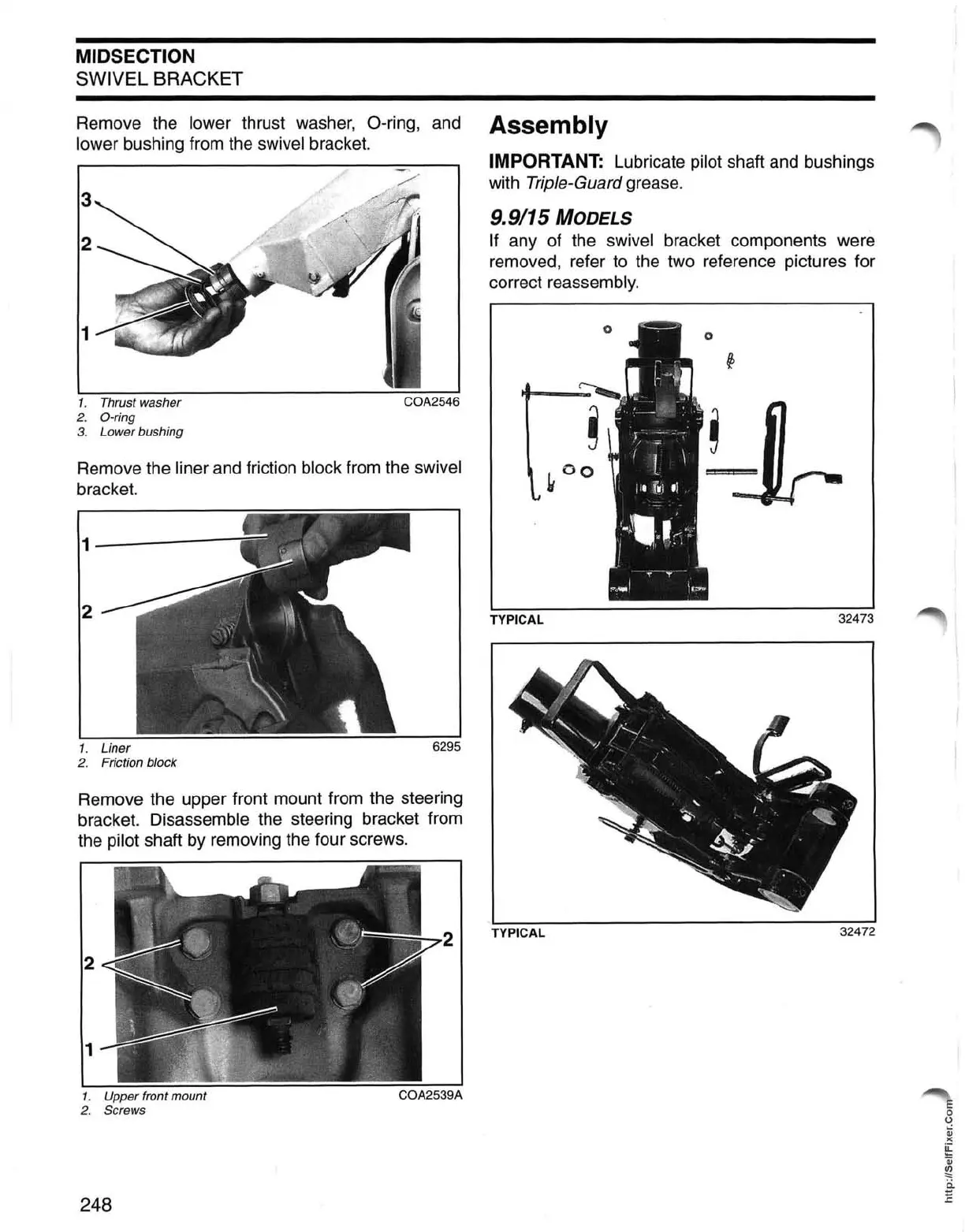

MIDSECTION
SWIVEL BRACKET
Remove the lower thrust washer, O-ring, and Assembly
lower bushing from the swivel bracket.
1. Thrust washer
COA2546
2. O-ring
3. Lower bushing
Remove the liner and friction block from the swivel
bracket.
1. Liner
6295
2. Friction block
Remove the upper front mount from the steering
bracket.
Disassemble the steering bracket from
the pilot shaft by removing the four screws.
1. Upper front mount
2.
Screws
248
IMPORTANT: Lubricate pilot shaft and bushings
with
Triple-Guard grease.
9.9/15 MODELS
If any of the swivel bracket components were
removed, refer to the two reference pictures for
correct reassembly.
TYPICAL
E
o
o
~
><
~
OJ
~
i:i
E
