I

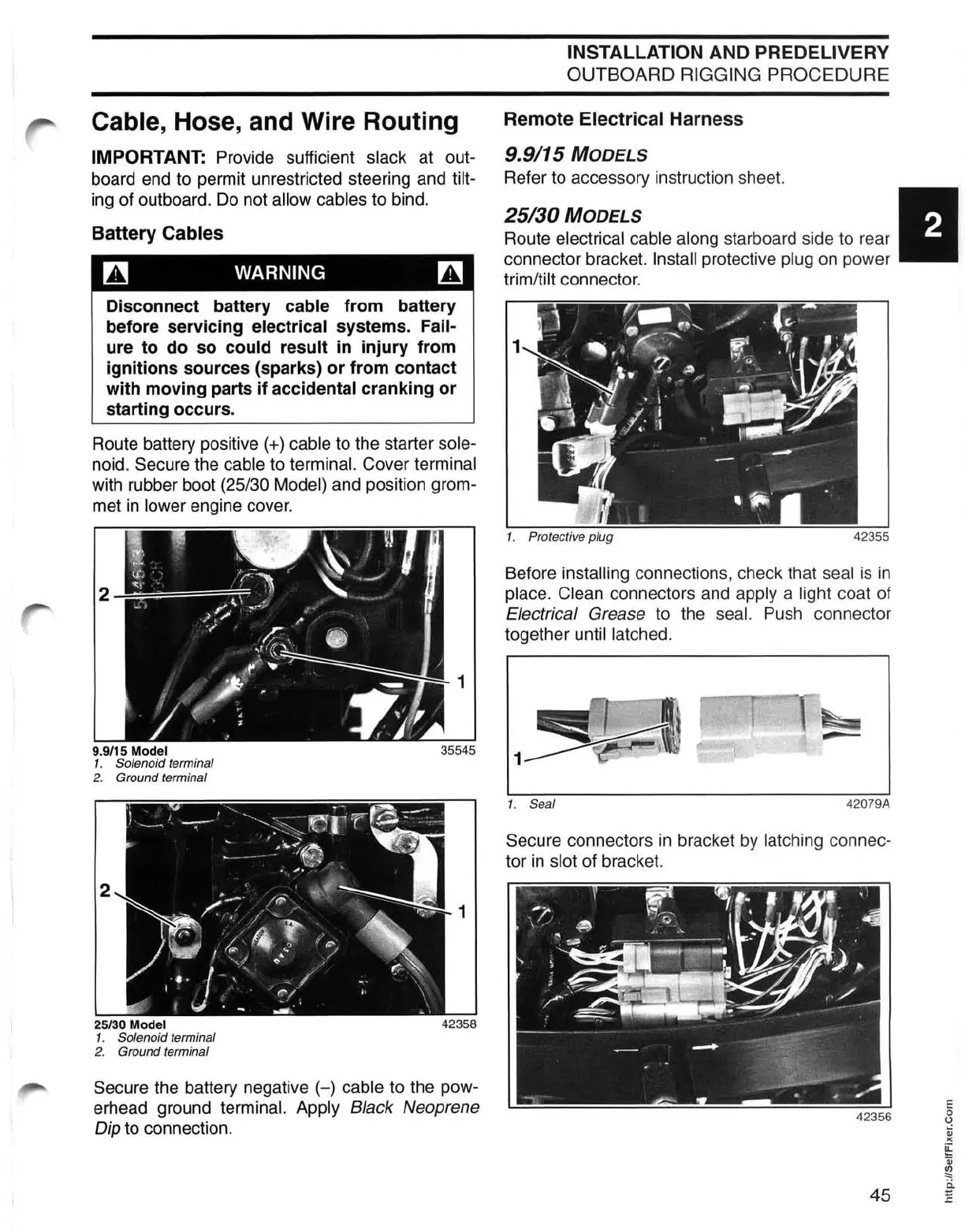

Cable, Hose, and Wire Routing
IMPORTANT: Provide sufficient slack at out-
board end to permit unrestricted steering and
tilt-
ing of outboard.
Do
not allow cables to bind.
Battery Cables
~
WARNING
~
Disconnect battery cable from battery
before servicing electrical systems. Fail-
ure to do
so
could result
in
injury from
ignitions sources (sparks) or from contact
with moving parts if accidental cranking or
starting occurs.
Route battery positive (+) cable to the starter sole-
noid. Secure the cable to terminal. Cover terminal
with rubber boot (25/30 Model) and position grom-
met
in
lower engine cover.
1
9.9/15 Model
35545
1.
Solenoid terminal
2.
Ground terminal
25/30 Model
42358
1. Solenoid terminal
2.
Ground terminal
Secure the battery negative
(-)
cable to the pow-
erhead ground
terminal. Apply Black Neoprene
Dip to connection.
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING PROCEDURE
Remote Electrical Harness
9.9/15
MODELS
Refer to accessory instruction sheet.
25/30
MODELS
2
Route electrical cable along starboard side to rear
connector bracket.
Install protective plug on power
trim/tilt connector.
1. Protective plug
42355
Before installing connections, check that seal
is
in
place. Clean connectors and apply a light coat of
Electrical Grease to the
seal. Push connector
together
until latched.
1
1.
Seal
42
079A
Secure connectors
in
bracket
by
latching connec-
tor
in
slot of bracket.
45
E
o
o
~
><
~
OJ
~
i:i
E
