ELECTRICAL
CHARGING SYSTEM TESTS

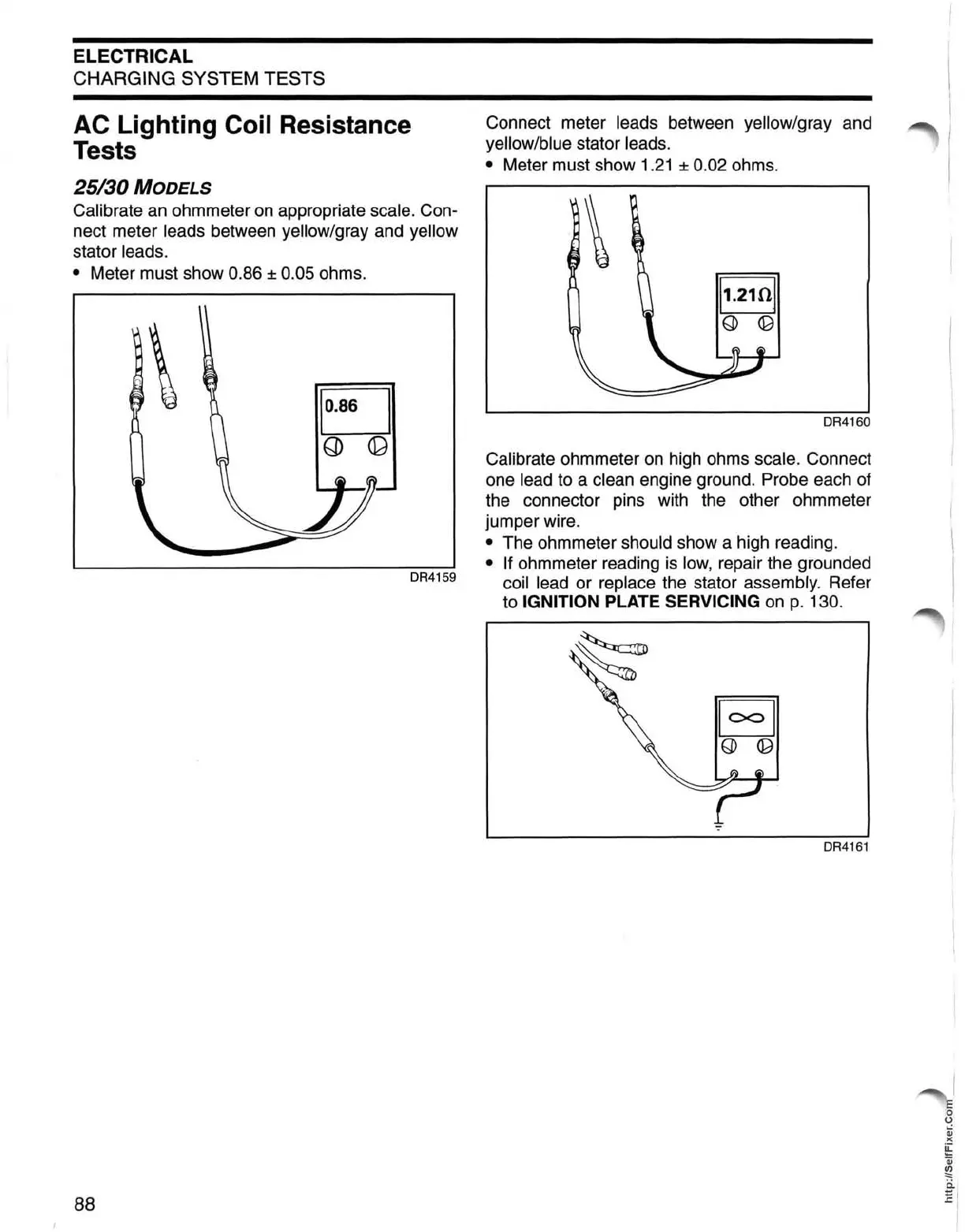

AC Lighting Coil Resistance
Tests
25/30 MODELS
Calibrate an ohmmeter on appropriate scale. Con-
nect meter leads between yellow/gray and yellow
stator leads.
•
Meter must show 0.86 ± 0.05 ohms.
DR4159
88
Connect meter leads between yellow/gray and
yellow/blue stator leads.
•
Meter must show 1.21 ± 0.02 ohms.
DR4160
Calibrate ohmmeter on high ohms scale. Connect
one
lead to a clean engine ground. Probe each of
the connector pins with the other ohmmeter
jumper wire.
• The ohmmeter should show a high reading.
• If ohmmeter reading is low, repair the grounded
coil lead or replace the stator assembly. Refer
to
IGNITION PLATE SERVICING on p. 130.
DR4161
E
o
o
~
><
~
OJ
~
~ I
I
