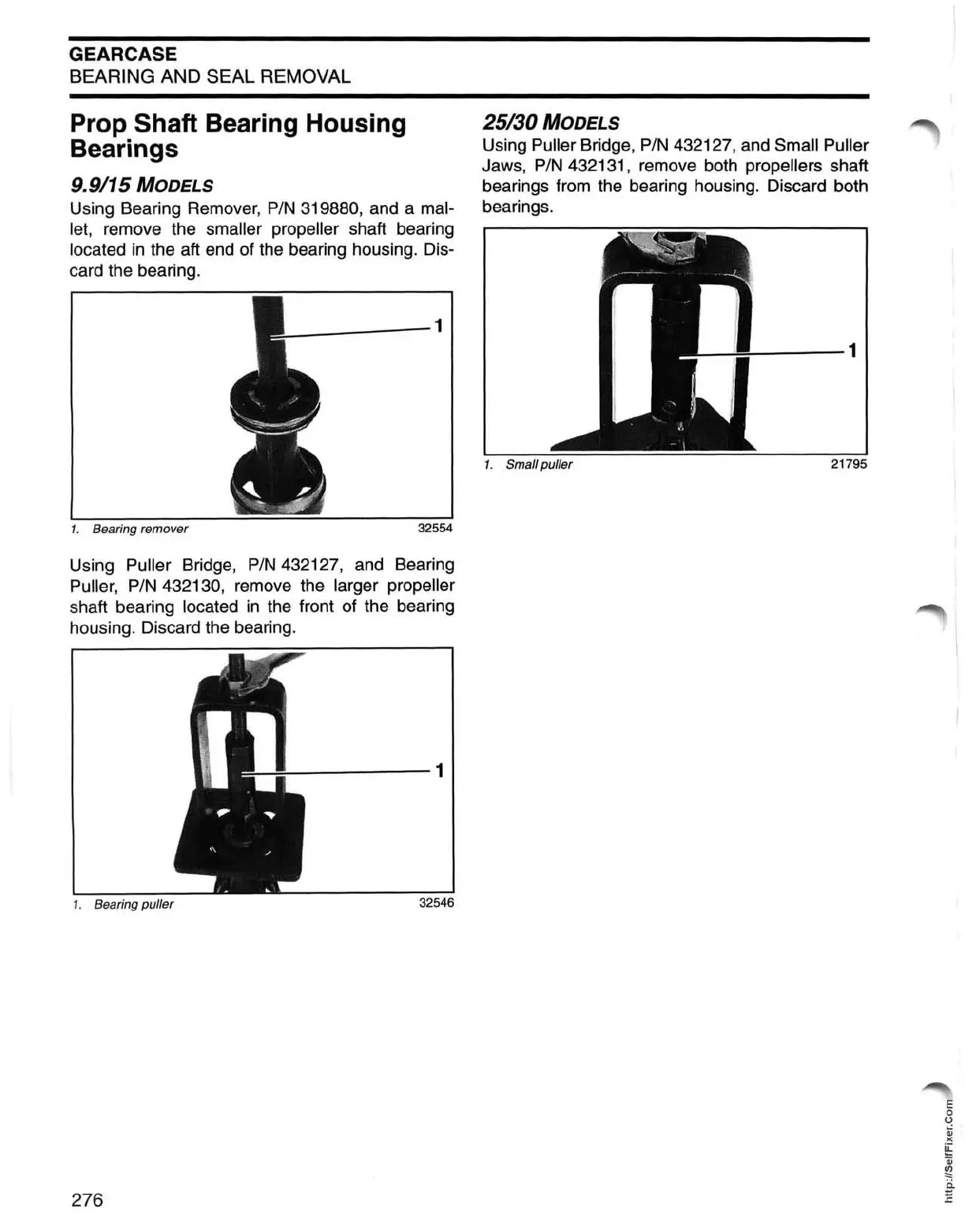

GEARCASE
BEARING AND SEAL REMOVAL
Prop Shaft Bearing Housing
Bearings
9.9/15 MODELS
Using Bearing Remover, PIN 319880, and a mal-
let,
remove the smaller propeller shaft bearing
located in the aft end of the bearing housing. Dis-
card the bearing.
L-_----1
1. Bearing remover
32554
Using Puller Bridge, PIN 432127, and Bearing
Puller, PIN 432130, remove the larger propeller
shaft bearing located in the front of the bearing
housing. Discard the bearing.
~~-----1
1. Bearing puller
32546
276
25/30 MODELS
Using Puller Bridge, PIN 432127, and Small Puller
Jaws, PIN 432131, remove both propellers shaft
bearings from the bearing housing. Discard both
bearings.
1. Small puller
21795
