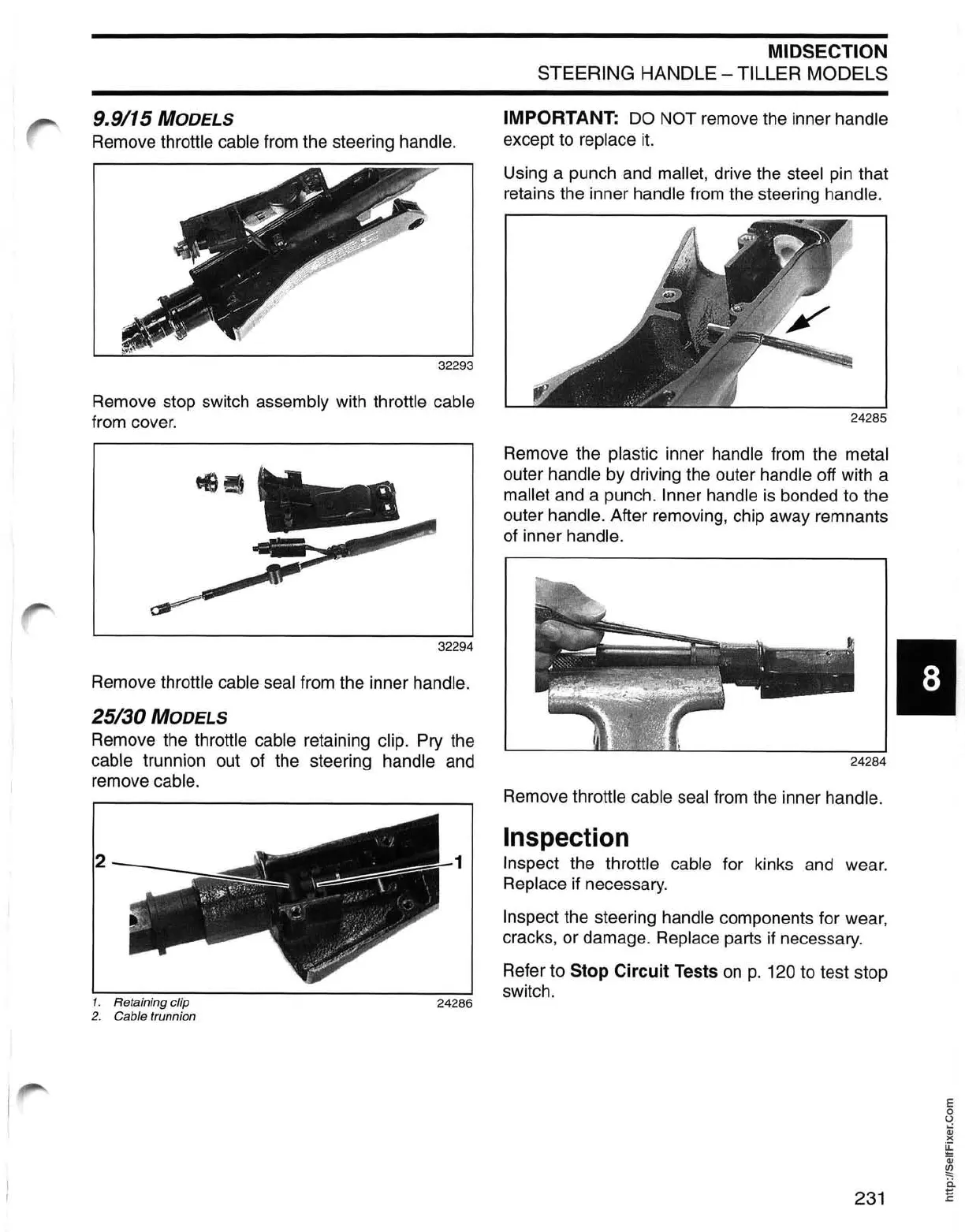

Johnson J10RLSRD User Manual

9.9/15 MODELS
Remove throttle cable from the steering handle.
Remove stop switch assembly with throttle cable
from cover.
32294
Remove throttle cable seal from the inner handle.
25/30 MODELS
Remove the throttle cable retaining clip. Pry the
cable trunnion out of the steering handle and
remove
cable.
2
1. Retaining clip
24286
2. Cable trunnion
MIDSECTION
STEERING
HANDLE - TILLER MODELS
IMPORTANT:
DO NOT remove the inner handle
except to replace it.
Using a punch and mallet, drive the steel pin that
retains the inner
handle from the steering handle.
24285
Remove the plastic inner handle from the metal
outer handle by driving the outer handle off with a
mallet and a punch. Inner handle is bonded to the
outer
handle. After removing, chip away remnants
of inner
handle.
24284
Remove throttle cable seal from the inner handle.
Inspection
Inspect the throttle cable for kinks and wear.
Replace if necessary.
Inspect the steering handle components for wear,
cracks, or damage.
Replace parts if necessary.
Refer to
Stop Circuit Tests on p. 120 to test stop
switch.
