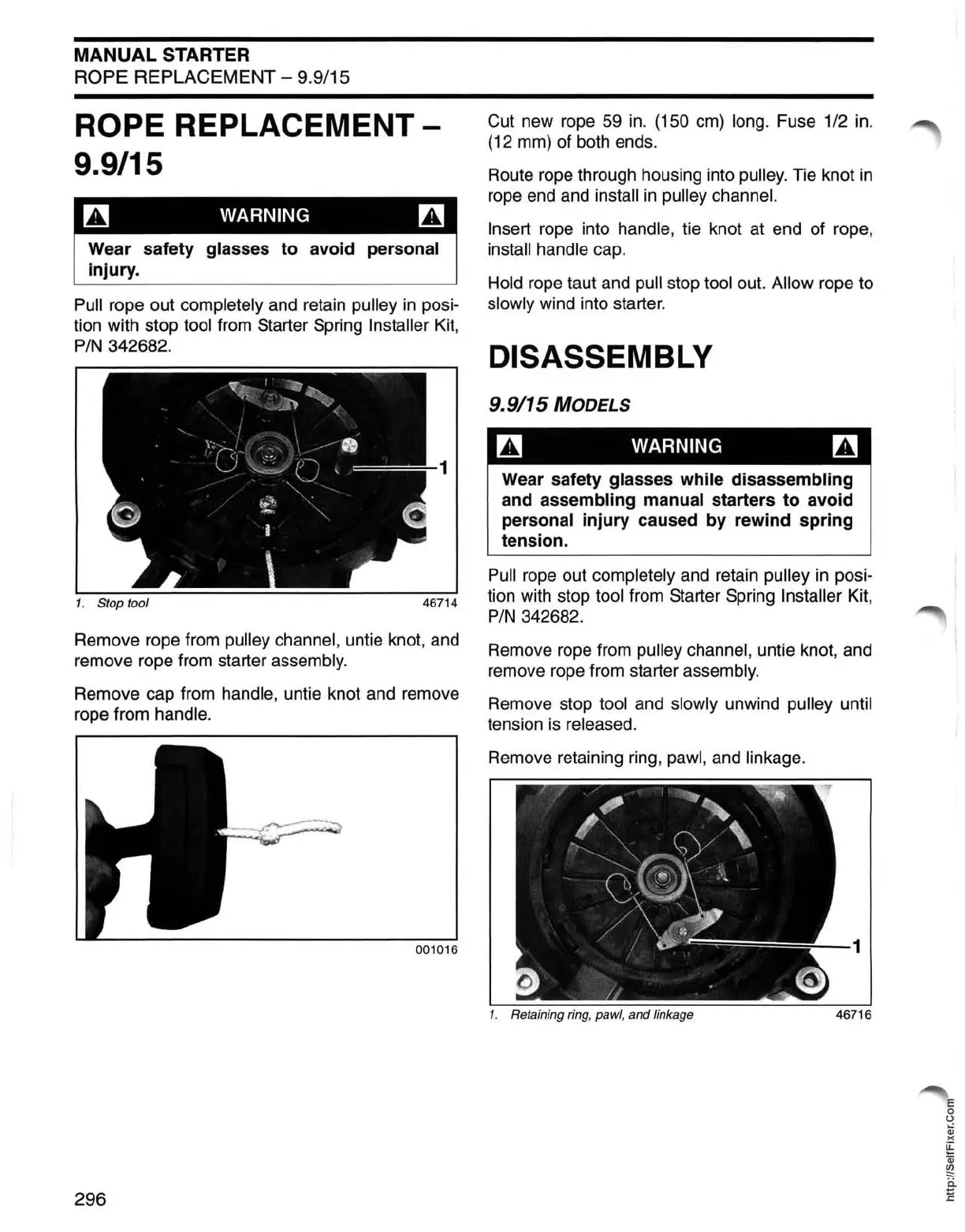

Johnson J10RLSRD User Manual

MANUAL STARTER
ROPE REPLACEMENT - 9.9/15
ROPE REPLACEMENT -
9.9/15
~ WARNING ~
Wear safety glasses to avoid personal
injury.
Pull rope out completely and retain pulley in posi-
tion with stop
tool from Starter Spring Installer Kit,
PIN 342682.
1
1. Stop tool
46714
Remove rope from pulley channel, untie knot, and
remove rope from starter
assembly.
Remove cap from handle, untie knot and remove
rope from
handle.
296
Cut new rope 59 in. (150 cm) long. Fuse 1/2 in.
(12 mm) of both ends.
Route rope through housing into
pulley. Tie knot in
rope end and install in pulley channel.
Insert
rope into handle, tie knot at end of rope,
install handle cap.
Hold rope taut and pull stop tool out. Allow rope to
slowly wind into starter.
DISASSEMBLY
9.9/15 MODELS
m WARNING m
Wear safety glasses while disassembling
and assembling manual starters to avoid
personal injury caused by rewind spring
tension.
Pull rope out completely and retain pulley in posi-
tion with stop
tool from Starter Spring Installer Kit,
PIN 342682.
Remove rope from
pulley channel, untie knot, and
remove rope from starter
assembly.
Remove stop tool and slowly unwind pulley until
tension is released.
Remove retaining ring, pawl, and linkage.
1
1. Retaining ring, pawl, and linkage 46716
