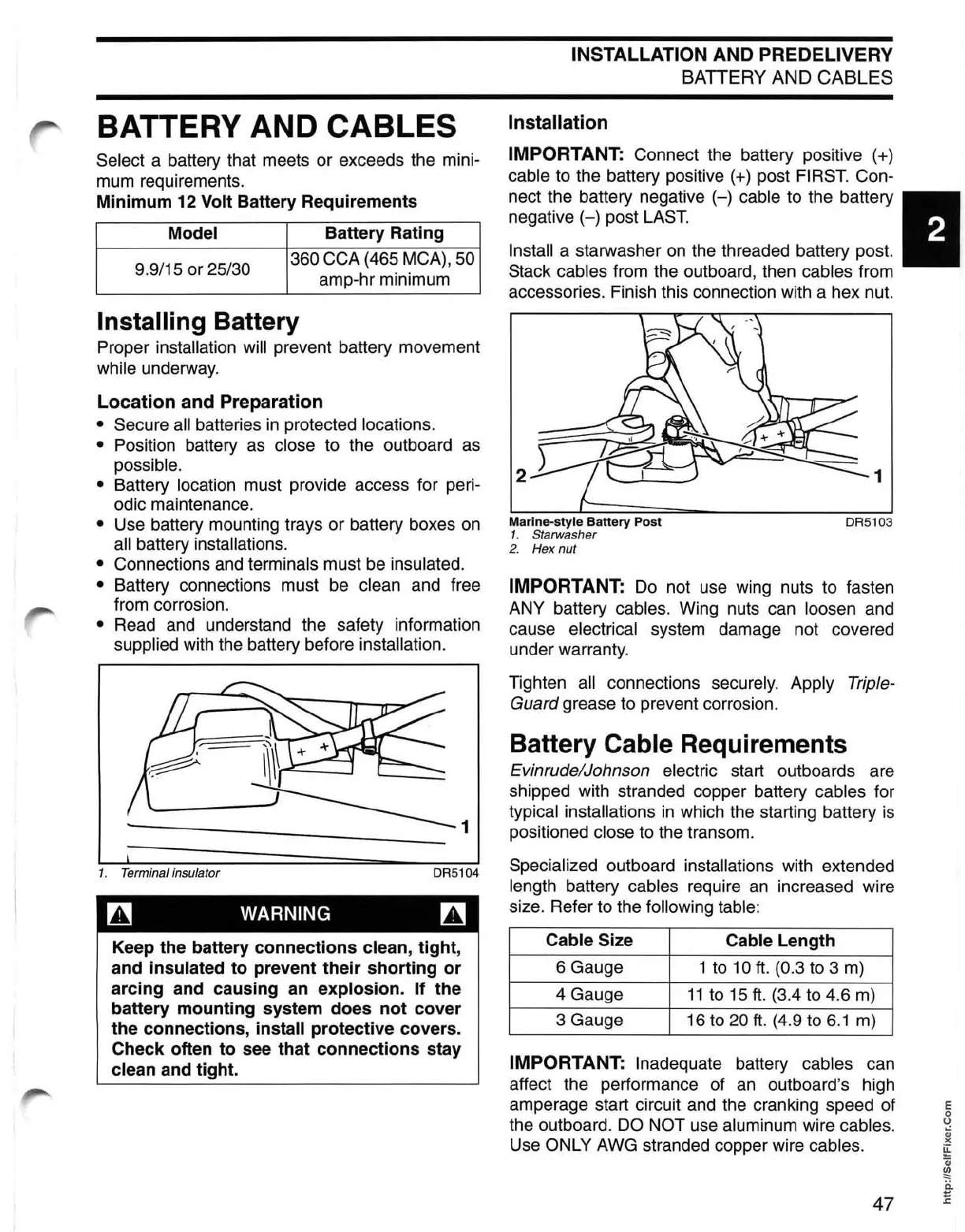

BATTERY AND CABLES
Select a battery that meets or exceeds the mini-
mum
requirements.
Minimum 12
Volt Battery Requirements
Model Battery Rating
9.9/15 or 25/30
360
CCA (465 MCA), 50
amp-hr minimum
Installing Battery
Proper installation will prevent battery movement
while underway.
Location and Preparation
• Secure
all
batteries
in
protected locations.
•
Position battery
as
close to the outboard
as
possible.
•
Battery location must provide access for peri-
odic maintenance.
• Use battery mounting trays or battery boxes
on
all battery installations.
•
Connections
and
terminals must be insulated.
•
Battery connections must be clean and free
from corrosion.
• Read
and
understand the safety information
supplied with the battery before installation.
1
1. Terminal insulator DR5104
~
WARNING
~
Keep the battery
connections
clean, tight,
and insulated
to
prevent
their
shorting
or
arcing and causing an explosion. If
the
battery mounting system
does
not
cover
the connections, install protective covers.
Check often
to
see that
connections
stay
clean and tight.
INSTALLATION AND PREDELIVERY
BATIERY AND CABLES
Installation
IMPORTANT: Connect
the
battery positive (+)
cable to the battery positive
(+)
post
FIRST.
Con-
nect the battery negative
(-)
cable to the battery 2
negative
(-)
post
LAST.
Install a starwasher
on
the threaded battery post.
Stack cables from the outboard, then cables from
accessories. Finish this connection with a hex nut.
Marine-style
Battery
Post
DR5103
1. Starwasher
2. Hex
nut
IMPORTANT:
Do
not use wing nuts to fasten
ANY battery
cables. Wing nuts can loosen and
cause
electrical system damage not covered
under warranty.
Tighten
all
connections securely. Apply Trip/e-
Guard grease to prevent corrosion.
Battery Cable Requirements
Evinrude/Johnson electric start outboards are
shipped with stranded copper battery
cables for
typical installations
in
which the starting battery
is
positioned close
to
the transom.
Specialized outboard installations with extended
length battery cables require
an
increased wire
size. Refer
to
the following table:
Cable Size
Cable
Length
6 Gauge
1
to
10
ft.
(0.3 to 3
m)
4 Gauge
11
to
15
ft.
(3.4 to 4.6
m)
3 Gauge 16
to
20
ft.
(4
.9
to
6.1
m)
IMPORTANT: Inadequate battery cables can
affect the performance of
an
outboard's high
amperage start circuit
and
the cranking speed of
the outboard.
DO
NOT use aluminum wire cables.
Use ONLY
AWG
stranded copper wire cables.
