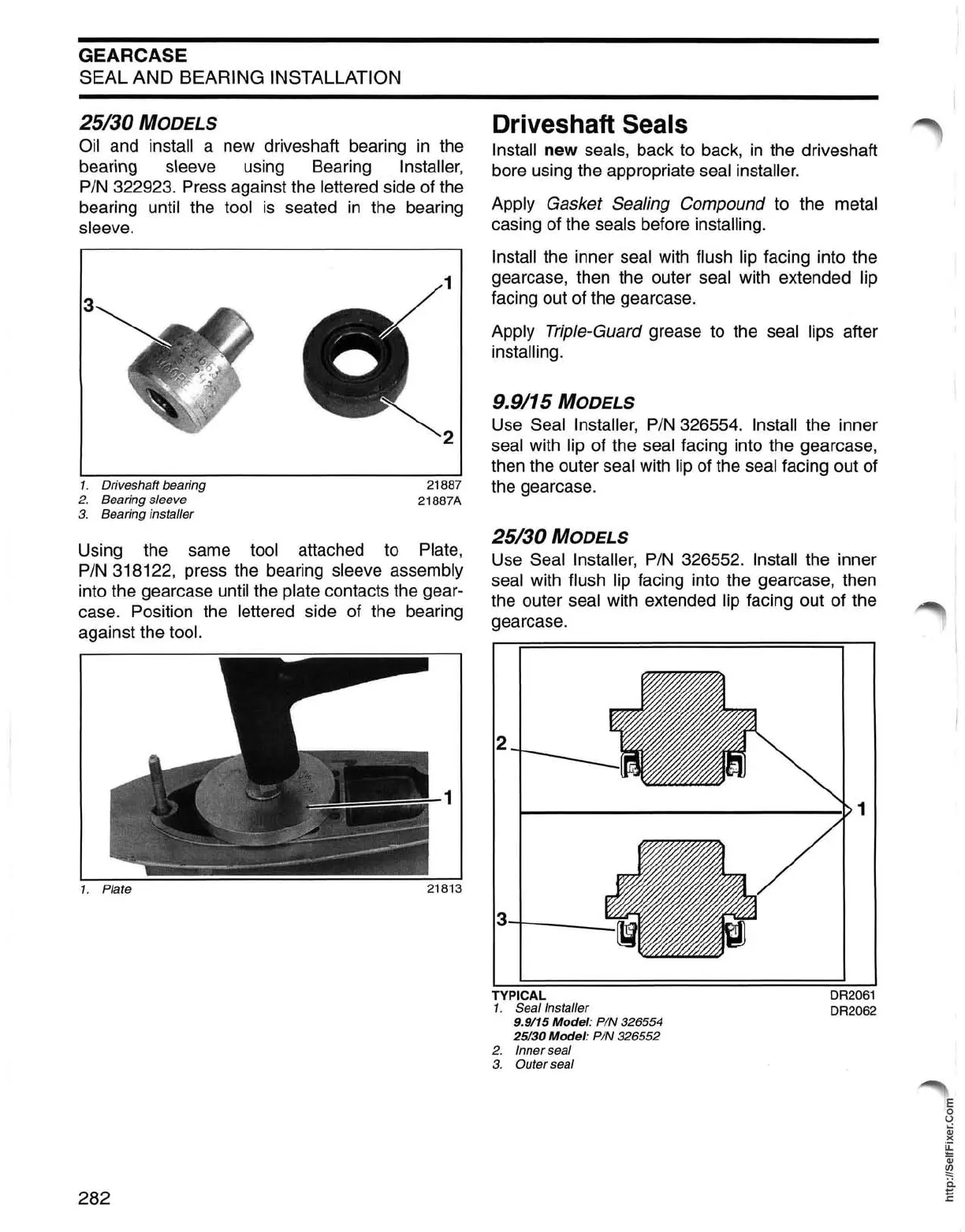

GEARCASE
SEAL AND BEARING INSTALLATION
25/30
MODELS
Oil
and install a new driveshaft bearing
in
the
bearing
sleeve using Bearing Installer,
PIN
322923. Press against the lettered side of the
bearing
until the tool
is
seated
in
the bearing
sleeve.
3
Driveshaft Seals
Install new seals, back to back,
in
the driveshaft
bore using the appropriate
seal installer.
Apply
Gasket Sealing Compound to the metal
casing of the seals before installing.
Install
the inner seal with flush lip facing into the
gearcase, then the outer
seal with extended lip
facing out of the gearcase.
Apply Triple-Guard grease to the seal lips after
installing.
9.9/15
MODELS
Use Seal Installer,
PIN
326554. Install the inner
seal with lip of the seal facing into the gearcase,
then the outer
seal with lip of the seal facing out of
21887 the gearcase.
1.
Driveshaft bearing
2.
Bearing sleeve
21887A
3. Bearing installer
Using the same tool attached to Plate,
PIN
318122, press the bearing sleeve assembly
into the gearcase until the plate contacts the gear-
case.
Position the lettered side of the bearing
against the
tool.
282
25/30
MODELS
Use Seal Installer,
PIN
326552. Install the inner
seal with flush lip facing into the gearcase, then
the outer
seal with extended lip facing out of the
gearcase.
~
_______________________
p1
TYPICAL
1. Seal Installer
9.9/15
Model
: PIN 326554
25/30 Model: PIN 326552
2. Inner seal
3.
Outer seal
DR2061
DR2062
E
o
U
Qj
)(
~
Qj
~
ii
E
