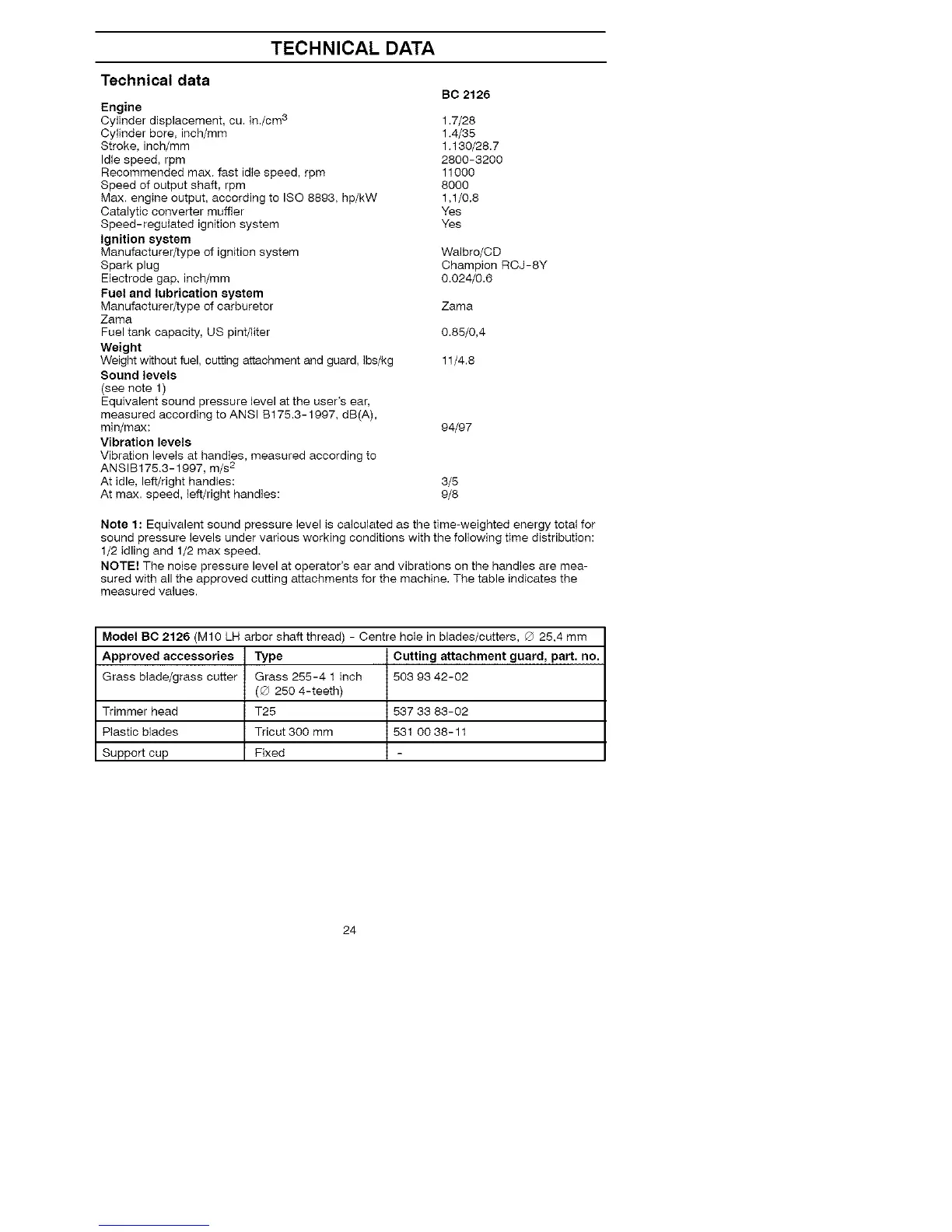

TECHNICAL DATA
Technical data
BC 2126
Engine
Cylinder displacement, cu. h_./cm3 1.7/28
Cylinder bore, inch/mm 1.4/35
Stroke, inch/ram 1.130/28.7
Idle speed, rpm 2800-3200
Recommended max. fast idie speed, rpm 11000
Speed of output shaft, rpm 8000
Max. engine output, according to ISO 8893, hp/kW 1,1/0,8
Catalytic converter muffler Yes
Speed-regulated ignition system Yes
Ignition system
Manufacturer/type of ignition system
Spark plug
Electrode gap, inch/mm
Fuel and lubrication system
Manufacturer/type of carburetor Zama
Zama
Fuel tank capacity, US pint/liter 0.85/0,4
Weight
Weight without fuel, cutting attachment and guard, Ibs/kg 11/4.8
Sound levels
(see note 1)
Equivalent sound pressure level at the user's ear,
measured according to ANSI B175.3-1997, dB(A),
min/max: 94/97
Vibration levels
Vibration levels at handles, measured according to
ANSIB175.3-1997, m/s 2
At idle, left/right handles: 3/5
At max. speed, left/right handles: 9/8
Walbro/CD
Champion RCJ-8Y
0.024/0.6
Note 1: Equivalent sound pressure level is calculated as the time-weighted energy total for
sound pressure levels under various working conditions with the following time distribution:
1/2 idling and 1/2 max speed.
NOTE! The noise pressure level at operator's ear and vibrations on the handles are mea-
sured with all the approved cutting attachments for the machine. The table indicates the
measured values.
Model BC 2126 (M 10 LH arbor shaft thread) - Centre hole in blades/cutters, O 25,4 mm
Approved accessories
Grass blade/grass cutter
Trimmer head
Plastic blades
Support cup
Type
Grass 255-4 1 inch
(O 250 4-teeth)
T25
Tricut 300 mm
Fixed
Cutting attachment guard, part, no.
503 93 42-02
537 33 83-02
53t 0038-11
24
