16 – English
WARNING!
Do not touch the silencer until it
has cooled down, otherwise you
may burn yourself.
Repair instructions
Remove the chain catcher and replace it with a
new one. Check that the vibration damping spring
locates correctly against the crankcase when you
bolt the new chain catcher in position.
A worn (damaged) chain catcher on CS 2141, CS
2145 or CS 2150 can be replaced with the same
chain catcher as CS 2149, (see fi gure above).
3
Turn the chain tensioner anticlockwise as far as it
will go.
Refi t:
• guide bar
• chain
• clutch cover

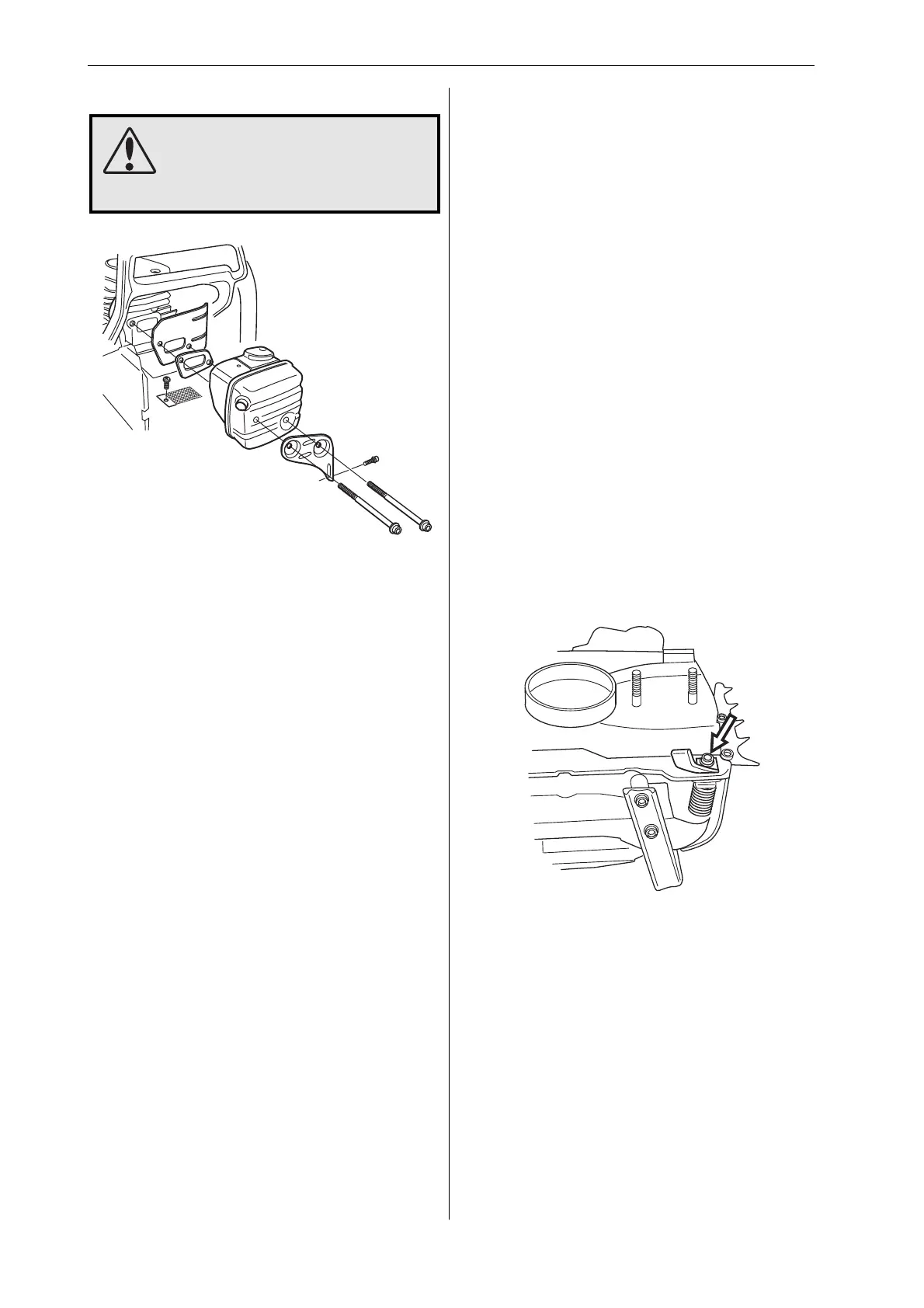

Silencer – removal
Remove the cylinder cover, silencer support, si-
lencer, gasket and cooling plate.
2
If the saw is fi tted with a spark arrestor mesh this
must also be removed.
Cleaning and inspection
Clean and inspect all parts carefully. If there are
any cracks or other defects replace the damaged
parts with new ones.
The spark arrestor mesh is best cleaned with a
wire brush. If the mesh is damaged it must be
replaced.
If the mesh is blocked the saw will overheat and
this will cause damage to cylinder and piston.
Never use the saw with a silencer that is in poor
condition. Always use original parts.
Silencer – refi tting
1
If the saw is equipped with a spark arrestor mesh
this should be fi tted fi rst.
2
Refi t
• cooling plate
• gasket
• silencer, tighten bolts to a torque of 8–10 Nm.
• silencer support
• cylinder cover
3
Run the saw for at least 1 minute, then retighten
the silencer bolts to 8–10 Nm.
Chain catcher – replacement
If the chain catcher is worn it must be replaced with
a new one.
1
Release the brake by pushing the kickback guard
backwards. Undo the guide bar bolts and remove
the clutch cover, chain and guide bar.
2
1
