English – 41
Repair instructions

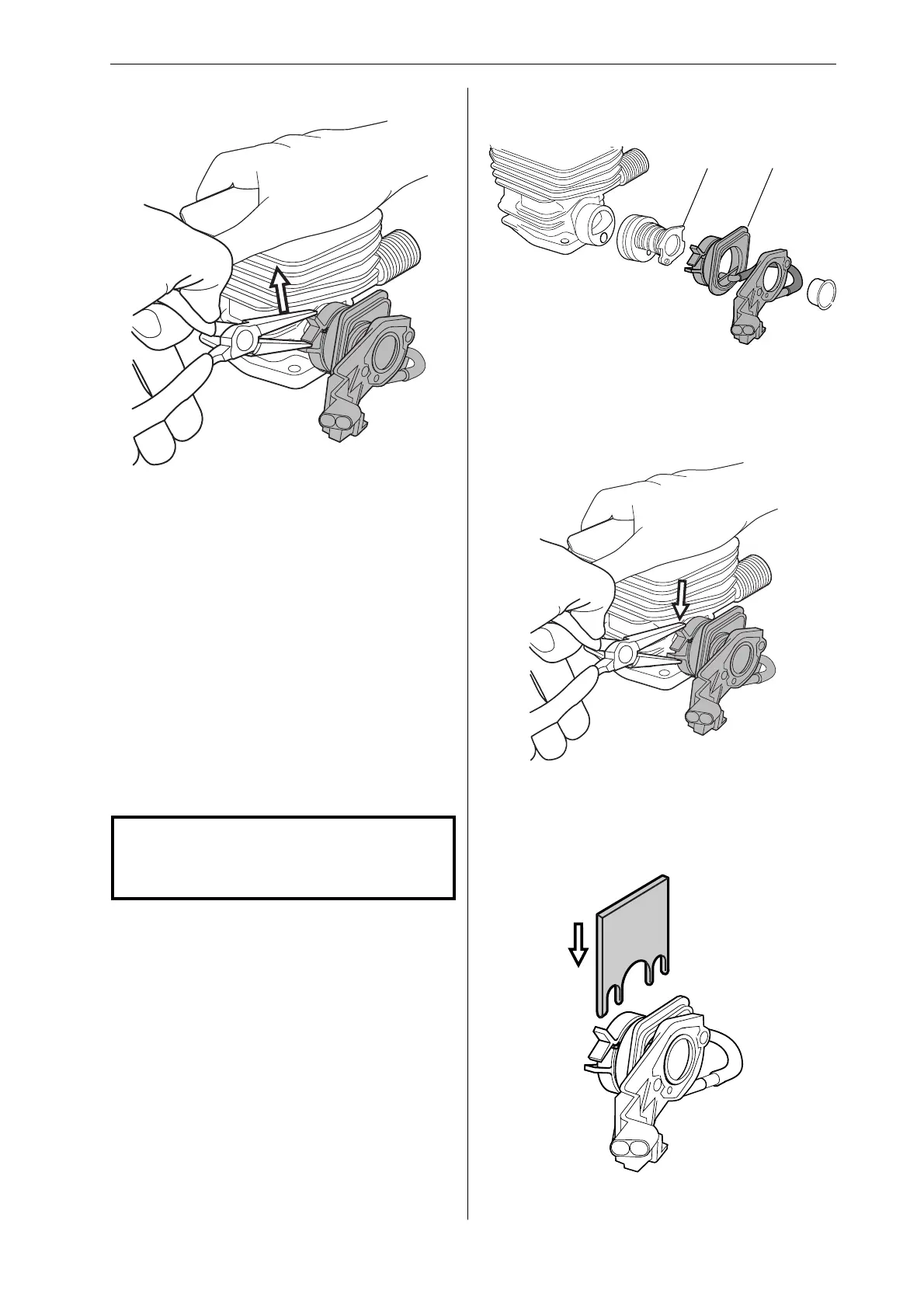

Free the insulating plate from the cylinder by
releasing the clamp using pliers. Remove the
complete air intake system.
6
Remove:
• support ring
• carburettor fl ange from the inlet manifold
• insulating plate
Cleaning and inspection
Clean and inspect all parts carefully. If there are
any cracks or other defects replace the damaged
parts with new ones. Always use original parts.
5
Air intake system – refi tting
1
Fit the inlet manifold (A) through the insulating plate
in the carburettor fl ange cut-out (B), and check that
the insulating plate’s impulse tube sits correctly in
the inlet manifold. Fit the perforated brass support
ring in the inlet manifold.
2
Position tool 502 54 17-01 between the carburettor
fl ange and the insulating plate.
Fit the air intake system on the cylinder and snap
the insulating plate into position. Check carefully
that the impulse tube is correctly seated against the
cylinder’s impulse channel.
3
AB
NOTE!
When replacing the impulse hose it must
not be lubricated with oil or grease.
