44 – English

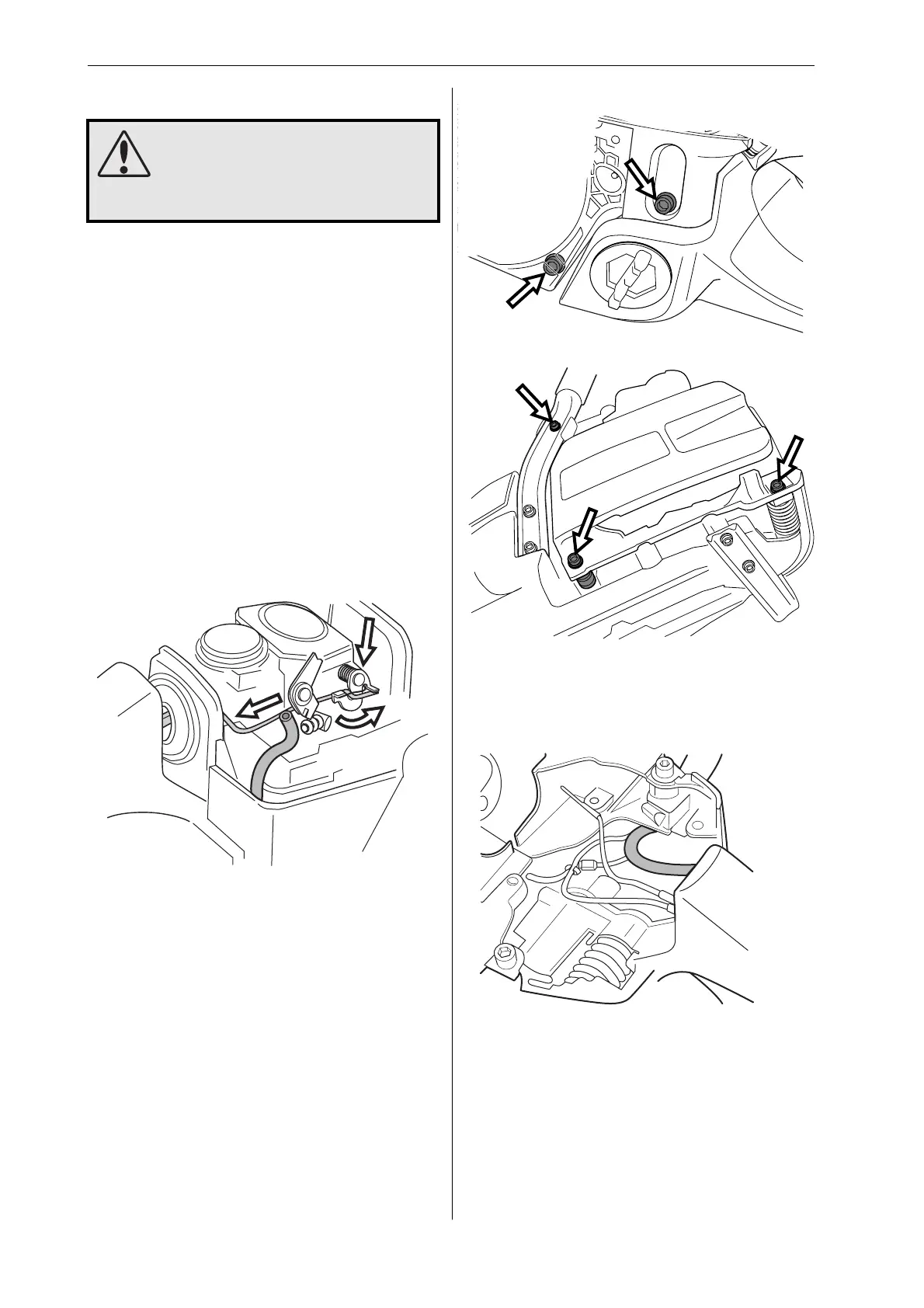

Repair instructions
5
Unscrew both stops and the three vibration damp-
ing springs from the fl ywheel side and clutch side
of the engine.
6
Disconnect and remove the fuel hose from the
crankcase.
1
Empty the fuel tank.
2
Remove the following:
• cylinder cover
• air fi lter
• clutch cover
• chain and guide bar
• starter assembly
• cable guide
3
Disconnect the fuel hose from the carburettor.
4
Fuel tank – removal
WARNING!
The fuel used in chainsaws is
harmful if inhaled, may cause
skin irritation and is highly fl am-
mable.
Disconnect the pushrod from the carburettor by
fi rst carefully prising up the spring over the end of
the rod, where it connects to the throttle lever (A).
Then press the throttle lever forwards (B) while
pressing the throttle pushrod backwards (C) and
lifting it off the lever. Withdraw the throttle pushrod
from the tank and lift it upwards without pulling it
through the rubber inlet manifold.
C
A
B
