Repair instructions

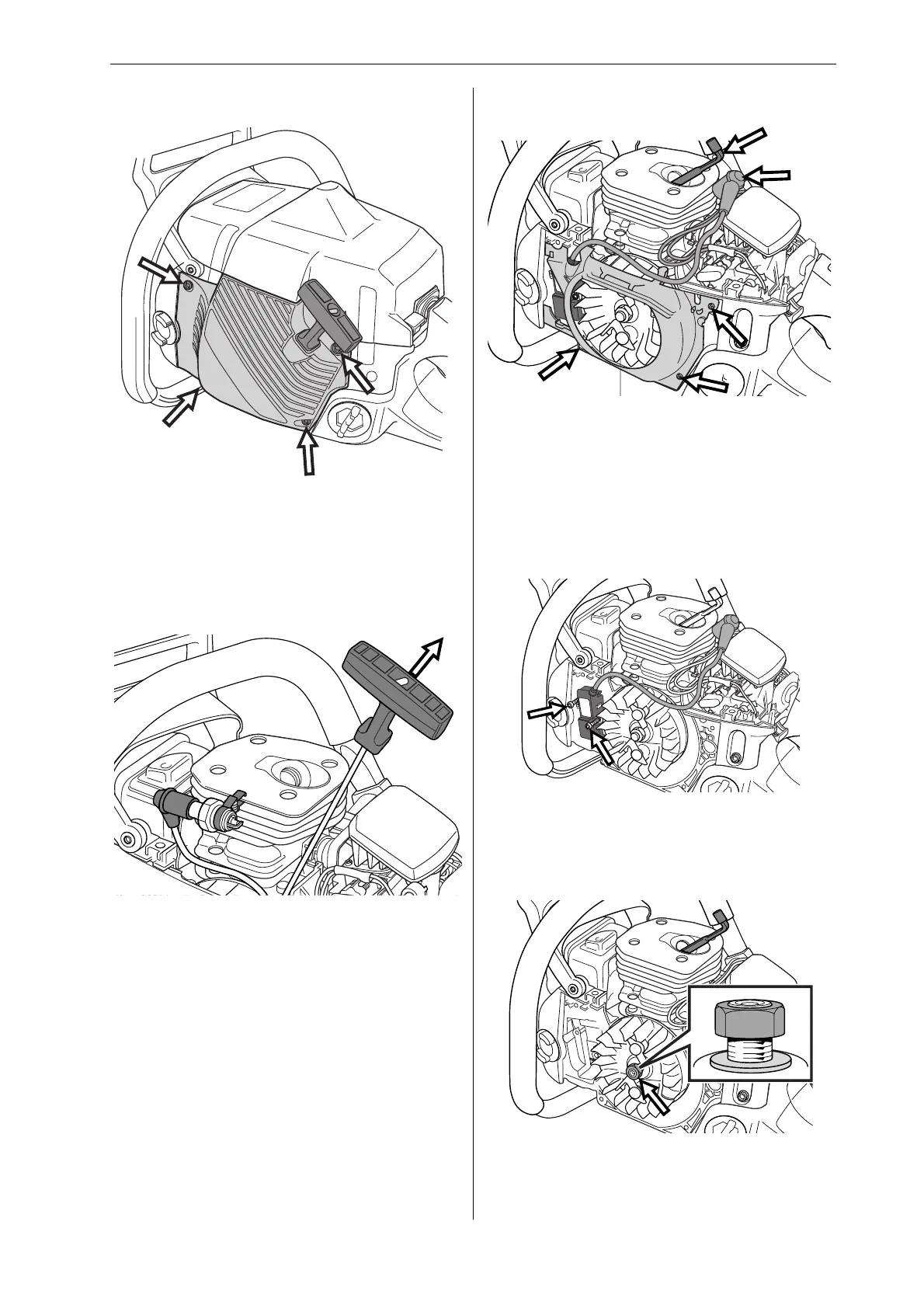

Position the starter assembly on the crankcase and
tighten the bolts to a torque of 2.5–3.5 Nm.
Ignition module – testing
If there is a fault in the ignition system the ignition
module must be tested before the ignition system
is removed.
Starter assembly – refi tting
1
Test the ignition module as follows:
• Connect a test spark plug 502 71 13-01 to the
ignition lead and clip the test spark plug onto the
cylinder.
• Turn the engine over using the starter cord.
• If the test spark plug produces a spark the igni-
tion module is OK.
Remove the cylinder cover. Disconnect the HT lead,
remove the spark plug and fi t piston stop 502 54
15-01 in its place. Take off the starter assembly, re-
lease the leads from the cable guide and remove it.
Model CS 2149, CS 2152:
Remove the cover from the hand grip.
2
If replacing the ignition module, disconnect its leads
and unscrew it. The ignition module can be left in
place if you are simply removing the fl ywheel.
3
Loosen the fl ywheel nut using a suitable socket and
unscrew it until it is fl ush with the end of the shaft.
Ignition module/fl ywheel – removal
1
