JUKI DDL-8700-7 Engineer's Manual

❷
❷
❶
❷
❸
❸
❸

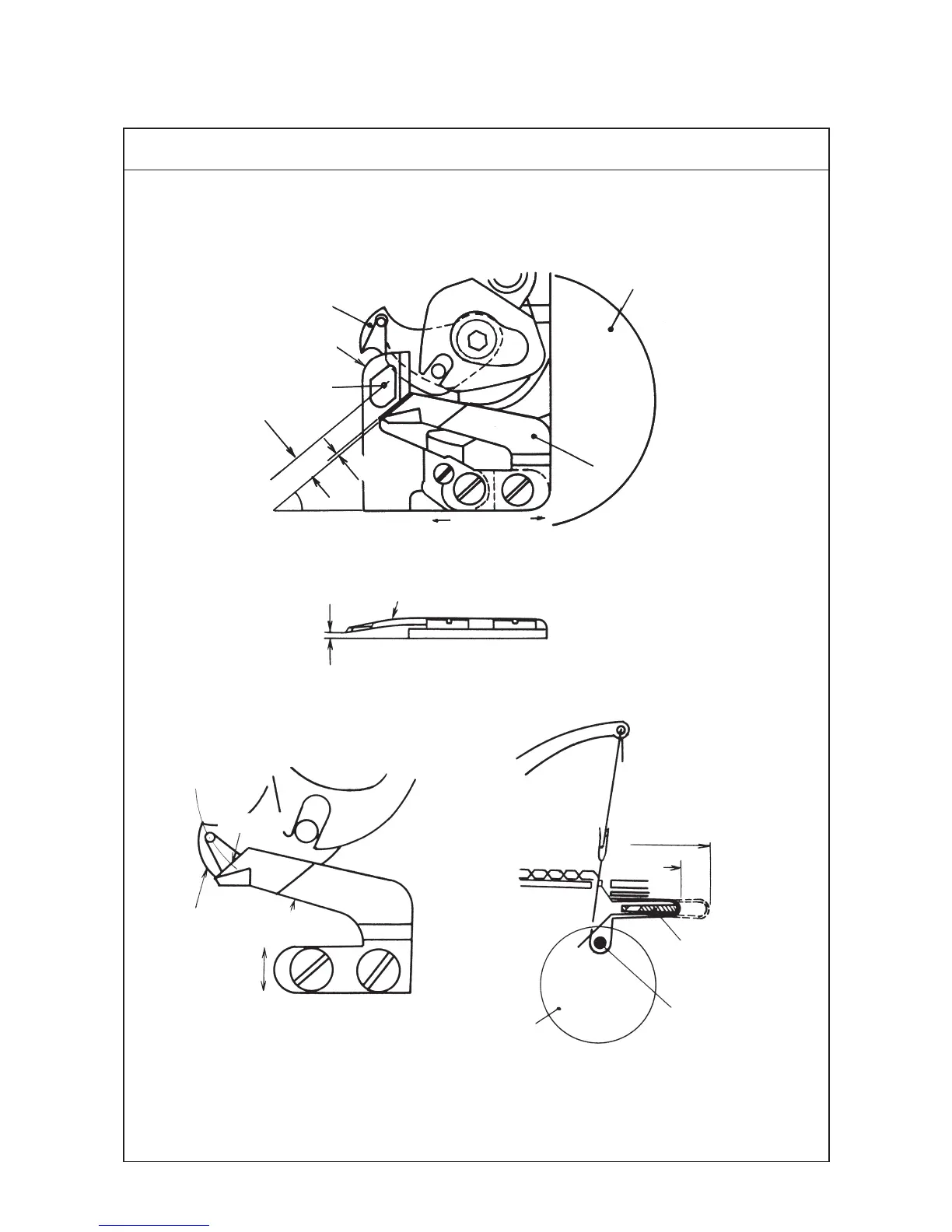

(8) Adjustment of the counter knife
Standard adjustment
Center of needle
Bottom face of
throat plate (bed)
Short
Length of thread remaining on needle
appro x.
4 mm
0.5 mm
Center
When counter knife
❷is
moved to right
Standard
Thread take-up picker
Hook
0.6 mm
Long
1) Properly installing the knife thread guide
2) Adjusting the counter knife
− 18 −

JUKI DDL-8700-7 Specifications

General

Max Stitch Length	5 mm
Needle Bar Stroke	30.7 mm
Lift of the Presser Foot	By hand: 5.5 mm, By knee: 13 mm
Lubrication	Automatic
Needle	DB×1
Hook	Full rotary hook
Power Requirement	Single-phase 100~120V, 200~240V
Motor	Direct-drive servo motor
Weight	45 kg
