JUKI DDL-8700-7 Engineer's Manual

(20) Setting and Ajusting for SC-920
(Caution) For the operation panel other than CP-18, refer to the Instruction Manual for the operation
panel to be used for the setting procedure of the machine head.
1.
Refer to "Ⅲ-(6) Setting for functions
of SC-920
Instruction Manual", and
call the function setting No. 95.
2. The type of machine head can be
selected by pressing
switch
(
switch ).
* Refer to "CAUTIONS WHEN SET-
TING UP THE SEWING MACHINE"
or "Machine head list" on the sepa-
rate sheet for the types of machine
heads.
3. After selecting the type of machine
head, by pressing
switch
(
switch ), the step proceeds to
96 or 94, and the display automati-
cally changes to the contents of the
setting corresponding with the type
of machine head.

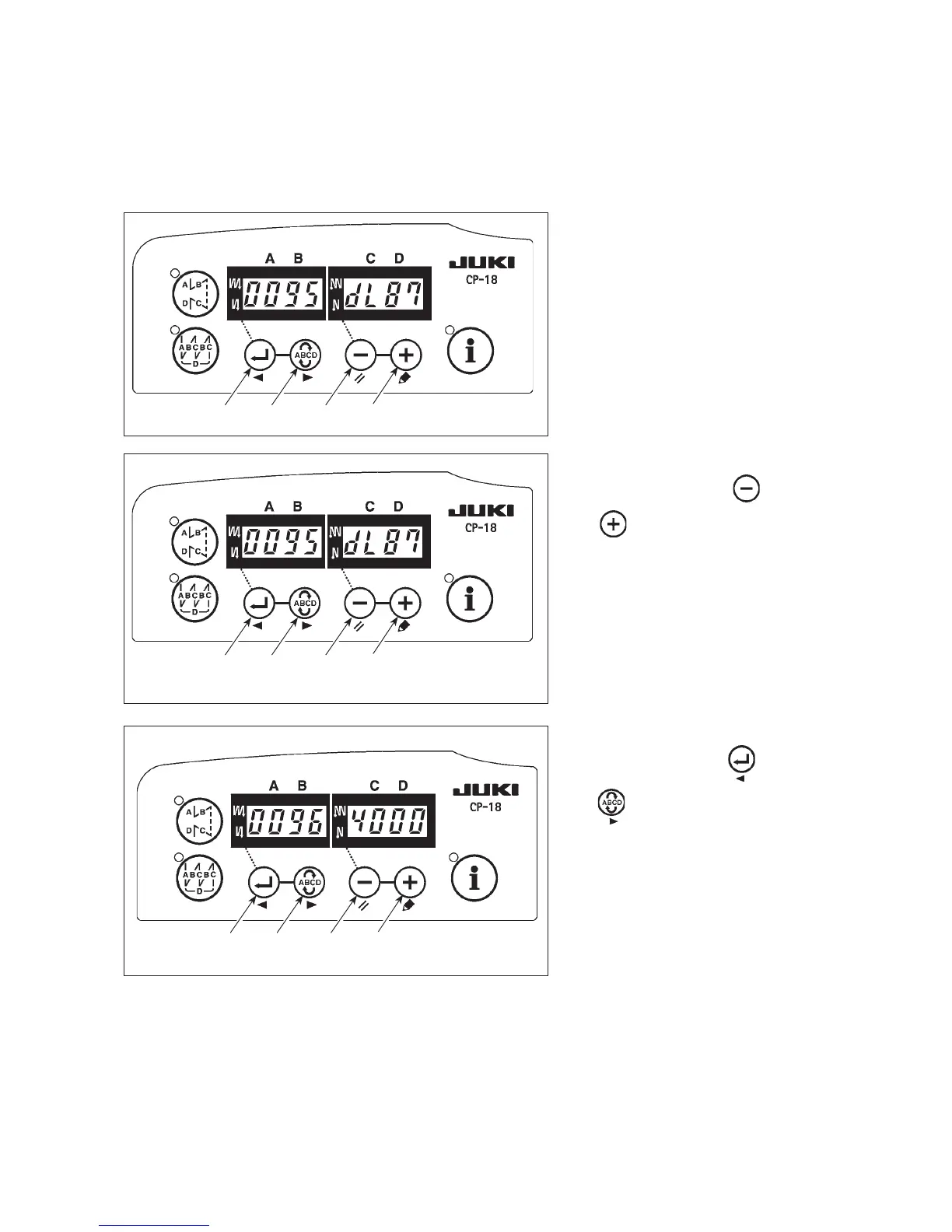

1) Setting procedure of the machine head
❸❹ ❺❻
❸❹
❸
❹
❺❻
❺
❻
❸❹ ❺❻
− 42 −

JUKI DDL-8700-7 Specifications

General

Max Stitch Length	5 mm
Needle Bar Stroke	30.7 mm
Lift of the Presser Foot	By hand: 5.5 mm, By knee: 13 mm
Lubrication	Automatic
Needle	DB×1
Hook	Full rotary hook
Power Requirement	Single-phase 100~120V, 200~240V
Motor	Direct-drive servo motor
Weight	45 kg
