(20) Second thread tension connection/disconnection

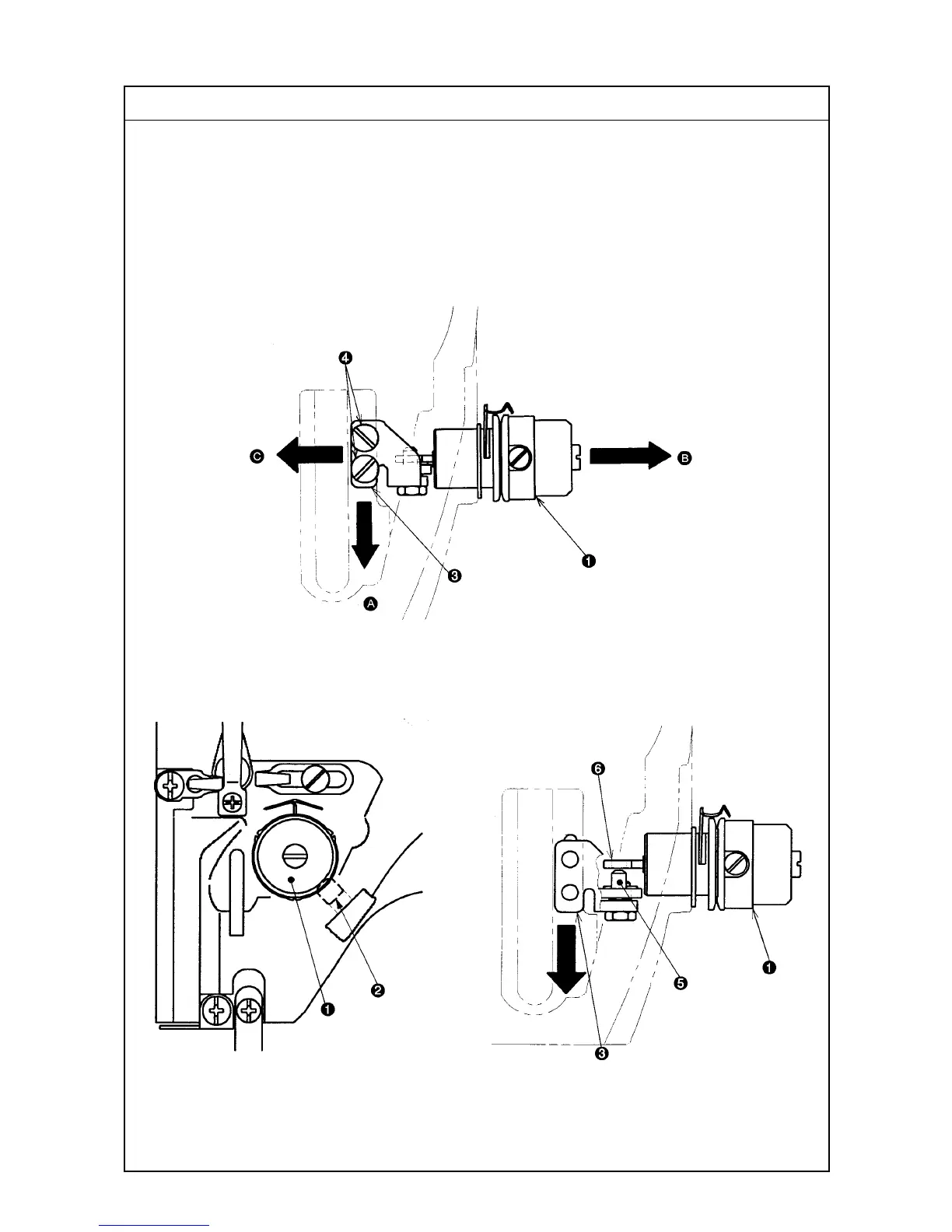

Procedures of disassembling/assembling
1. Loosen the set screw
2
.
2. Remove the two set screw
4
.
3. Move the AT link unit (front)
3
downwards (in the direction of the Arrow
A
), and pull out the pin block
5
from the hole of the thread tension releasing pin
6
of the second thread tension
1
.
4. Pull out the second thread tension
1
to remove it. (Arrow
B
)
5. For reassembly, follow the steps of 4. to 1. above.
