JUKI LK-1900AN User Manual

– 50 –

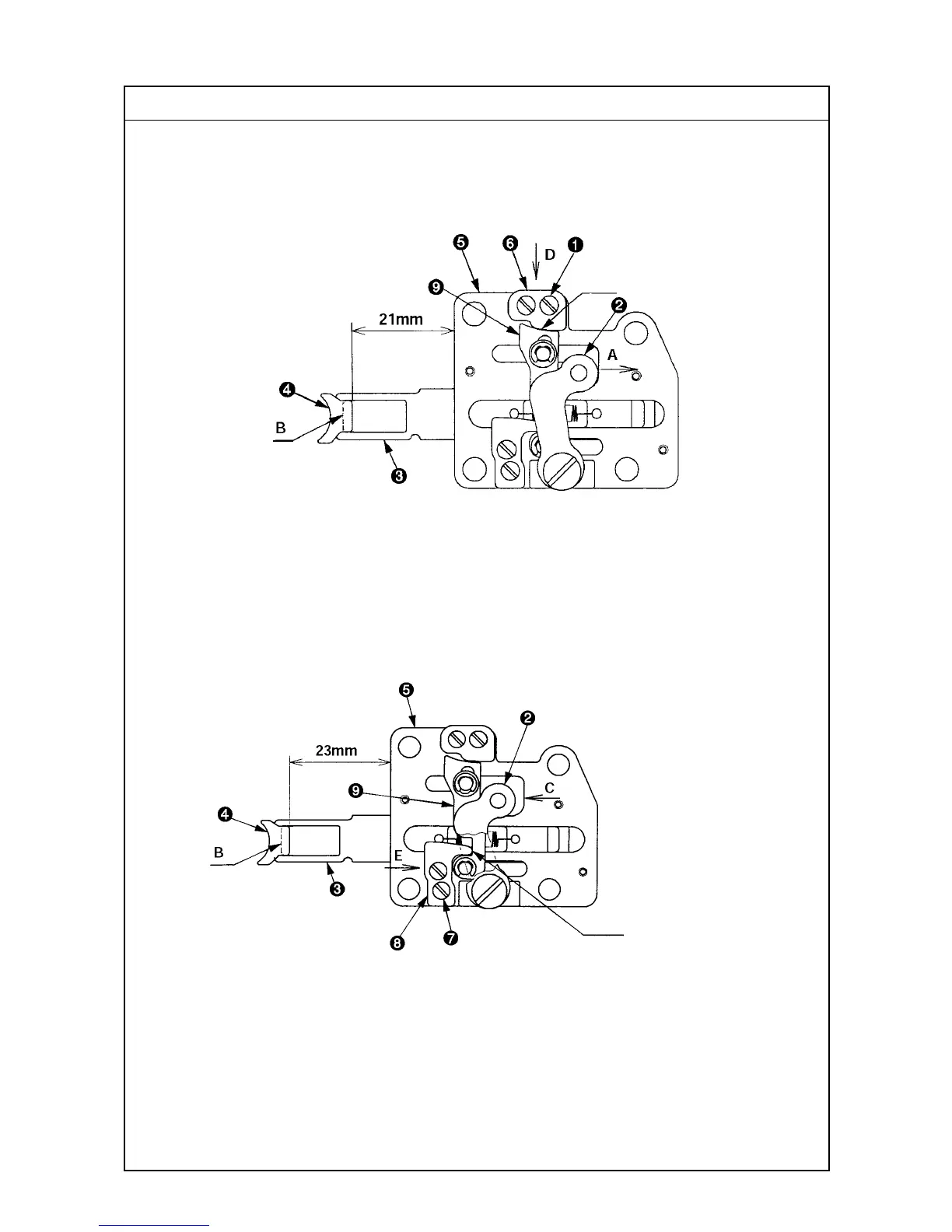

(38) Adjustment of the needle thread clamp notch
Standard adjustment
1. Needle thread clamp notch R position
1) When the needle thread clamp link complete
2
is pushed in Direction A and Part B of the needle
thread clamp support plate complete
3
and the needle thread clamp
4
begins to open, the
distance between the needle thread clamp
4
and the needle thread clamp base
5
becomes 21
mm.
2. Needle thread clamp notch F position
1) When the needle thread clamp link complete
2
is pushed in Direction C and Part B of the needle
thread clamp support plate complete
3
and the needle thread clamp
4
begins to open, the
distance between the needle thread clamp
4
and the needle thread clamp base
5
becomes 23
mm.
