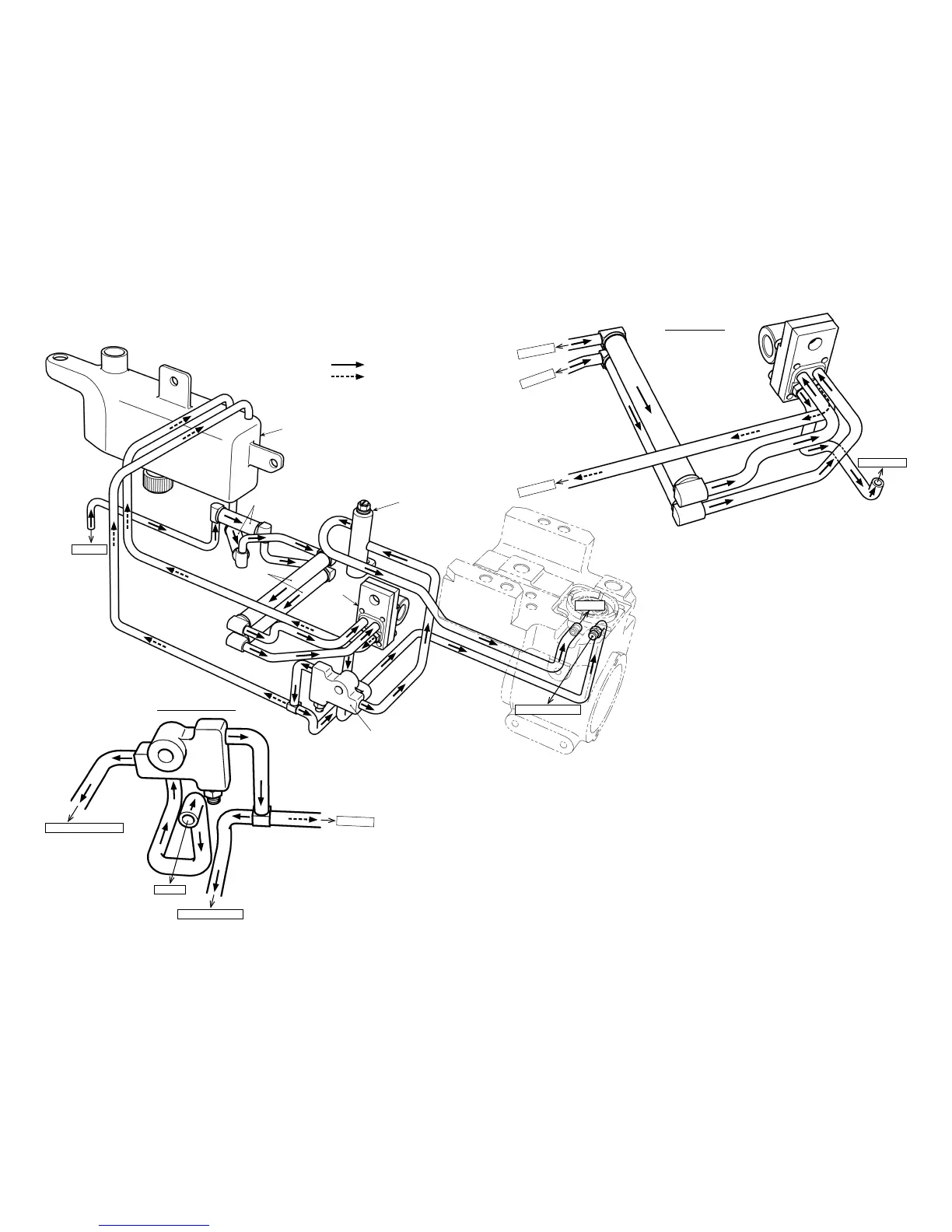

9. Lubrication route diagram
(1) LU-2810, 2810-6, 2810-7, 2828-6, 2828-7, 2818-7
: Lubrication
: Circulation
Oil tank
Oil regulating valve
Pump
To oil pan
Oil lter
Oil lter
Distributor
To hook shaft gear
To hook
To oil pan
To oil tank
To oil tank
Details of pump
To distributor
Details of distributor
To pump
To oil regulating valve
To oil tank
To hook shaft gear
