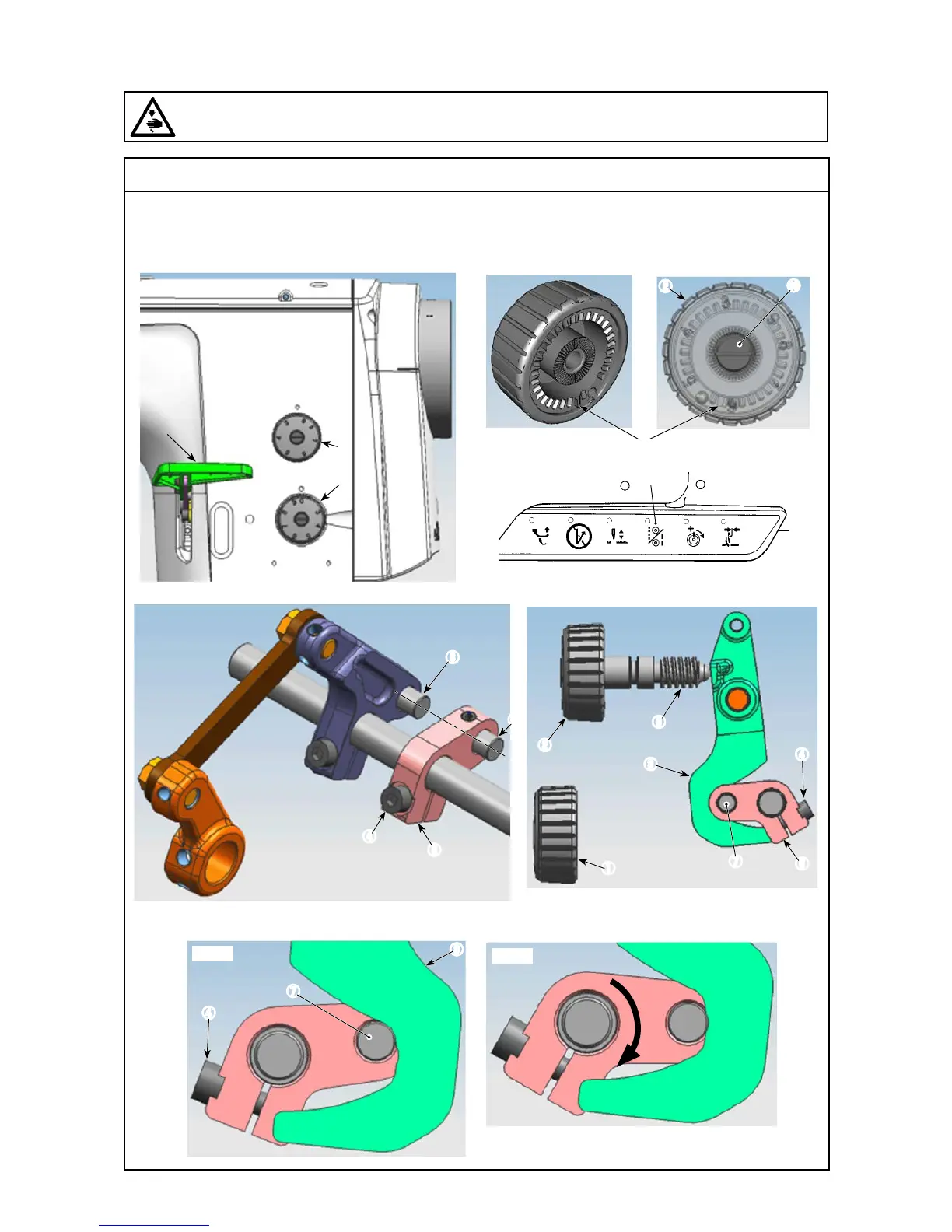

(21) 2P feed adjustment
WARNING :
As the work is performed while the power is ON, never touch the switches other than the necessary
one so as to prevent accidents caused by the malfunction of switches.
Standard adjustment
1) LU-2810-6, 2810-7, 2860-6, 2860-7
①
Zero-point alignment for 2P feed adjustment
②
Forward/reverse stitch length of 2P feed adjustment
❶
❷
❽
❷
❻
❹
❺
❼
❷
❶
❸
❾
❺
❹
❼
❹
❾
❼
Fig. A
Fig. B
