JUKI LU-2828-7 User Manual

– 4 –
2. Standard adjustment

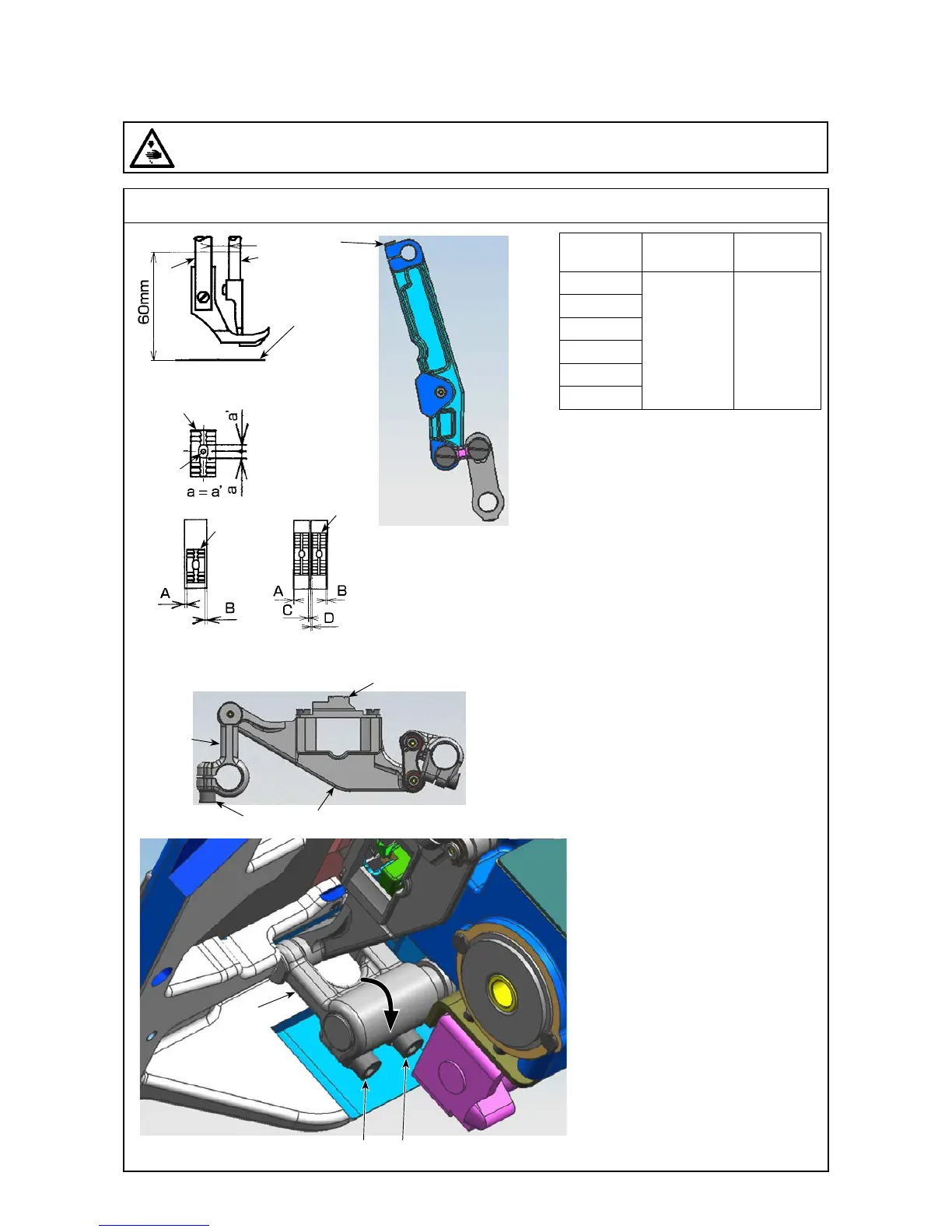

(1) Needle entry position (Standard gauge type)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
Model
Dimension E
(mm)
Gauge type
LU-2810
7.5 ± 0.1
Standard
gauge type
LU-2810-6
LU-2810-7
LU-2860
LU-2860-6
LU-2860-7
[Conditions]
• Needle bar at lowest dead point
• Feed amount : 0 mm
• Height of feed dog : 0.5 to 0.6 mm
(Highest position)
❶
E
Top surface of
❸
❽
❼
❷
❻
❹
❺
❷
󱢳
,
󱢴
❹
󱢳
󱢴
❷
❷
In case of 2-needle

JUKI LU-2828-7 Specifications

General

Type	Lockstitch
Lubrication	Automatic
Needle Bar Stroke	36 mm
Lift of the Presser Foot	6 mm
Weight	30 kg
Feed Mechanism	Walking foot
Hook	Rotary hook
Motor	AC Servo Motor
Max Sewing Speed	2, 800 rpm
