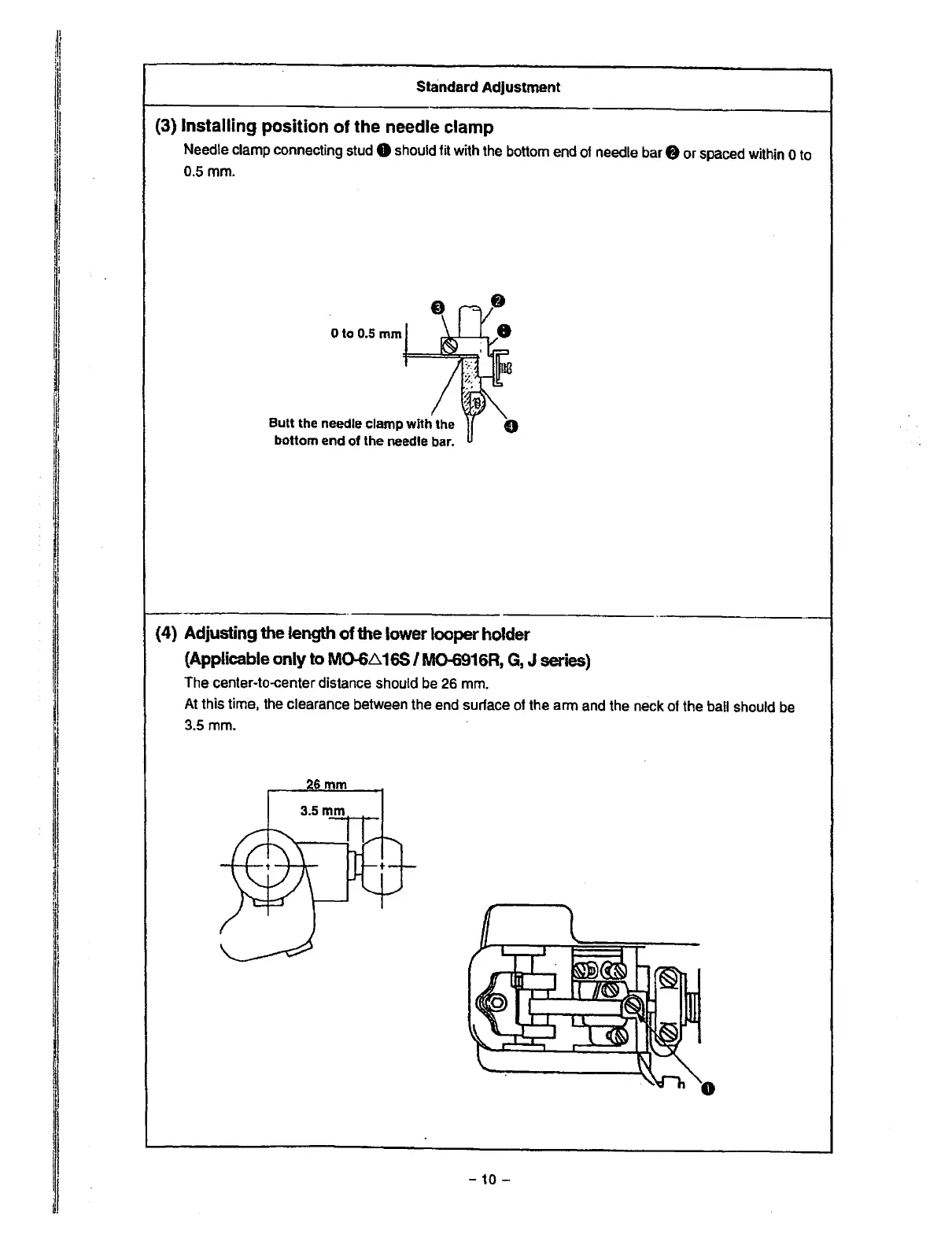

Standard Adjustment
(3) Installing position of the needle clamp
Needle clamp connecting stud O should fit with the bottom end of needle bar 8
or
spaced within o to
0.5mm.
Oto 0.5 mm
Butt the needle clamp with the
bottom
end
of
the
needle bar.
0
( 4)
Adjusting
the
length
of
the
lower
looper
holder
(Applicable
only
to
M0-6~
16S
/ M0-6916R,
G,
J
series)
The center-to-center distance should be 26 mm.
At this time, the clearance between the end surface of the arm and the neck of the ball should be
3.5mm.
26mm
-10
-
