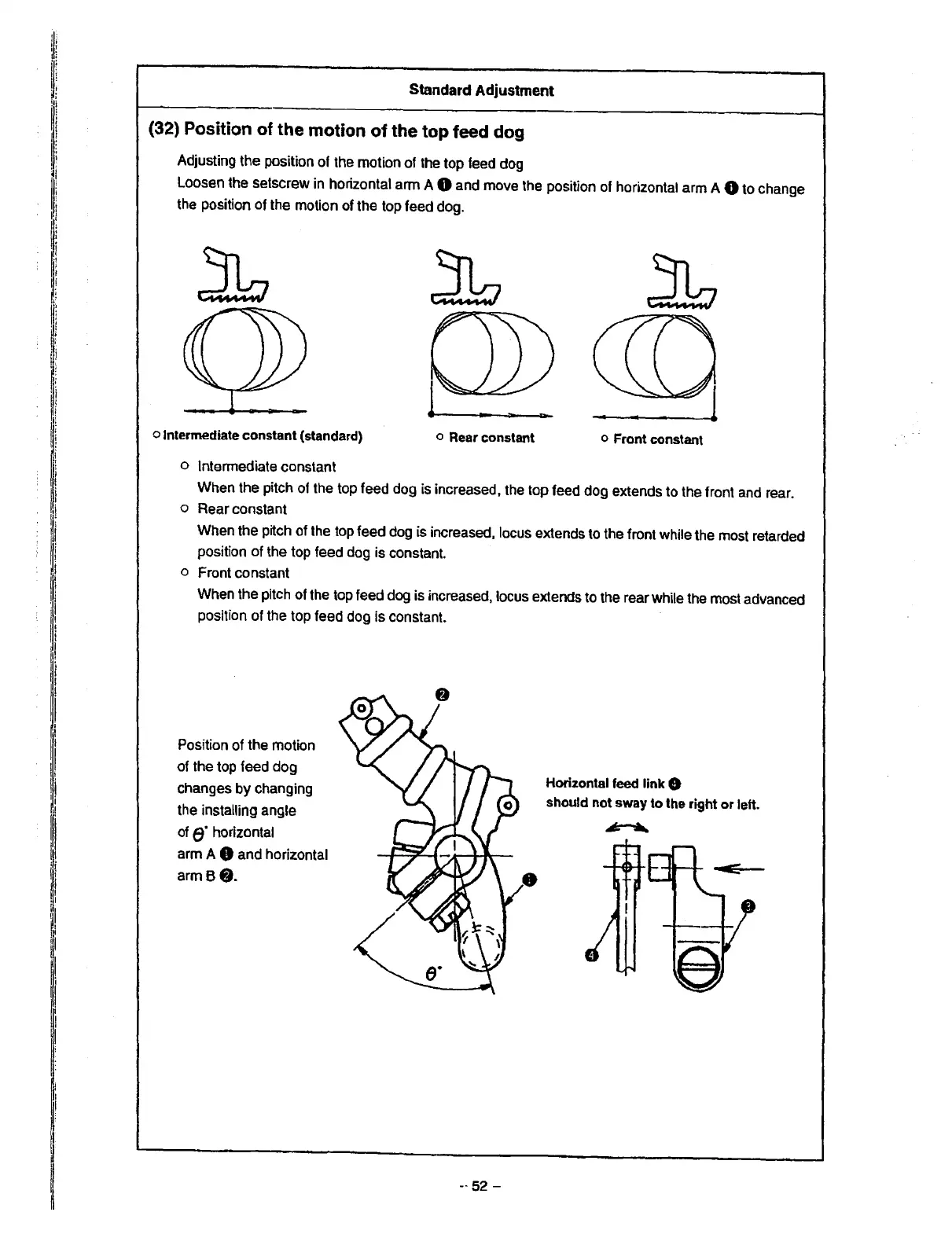

Standard Adjustment
(32) Position of the motion
of
the top feed dog
Adjusting the position of
the
motion
of
the
top
feed
dog
Loosen
the setscrew in horizontal ann A O
and
move
the
position
of
horizontal
arm
A O
to
change
the
position of the motion
of
the
top
feed dog.
o Intermediate constant (standard)
o Rear constant
o Front
constant
o Intermediate constant
When the pitch
of
the
top
feed
dog
is
increased,
the
top feed dog extends
to
the front
and
rear.
o Rear constant
When
the pitch of
the
top
feed
dog
is increased, locus extends
to
the front while the
most
retarded
position of the
top
feed
dog
is
constant.
o Front constant
When
the
pitch
of
the
top
feed
dog
is
increased, locus extends
to
the
rear while
the
most advanced
position of the top feed
dog
is
constant.
Position of the motion
of the
top
feed dog
changes
by
changing
the installing angle
of
f!f
horizontal
arm
A 8 and horizontal
armB9.
Horizontal
feed
link 8
should
not
sway
to
the
right or left.
~
--52
-
