Various sealants
Maker's
name
Part
No.
*:
It is commonly called "JUKI
sear.
Three Bond
11040 *
Three Bond
1104
Three Bond
1212
JUKI exclusive part Nos. of the above 3 kinds of the sealants are not set.

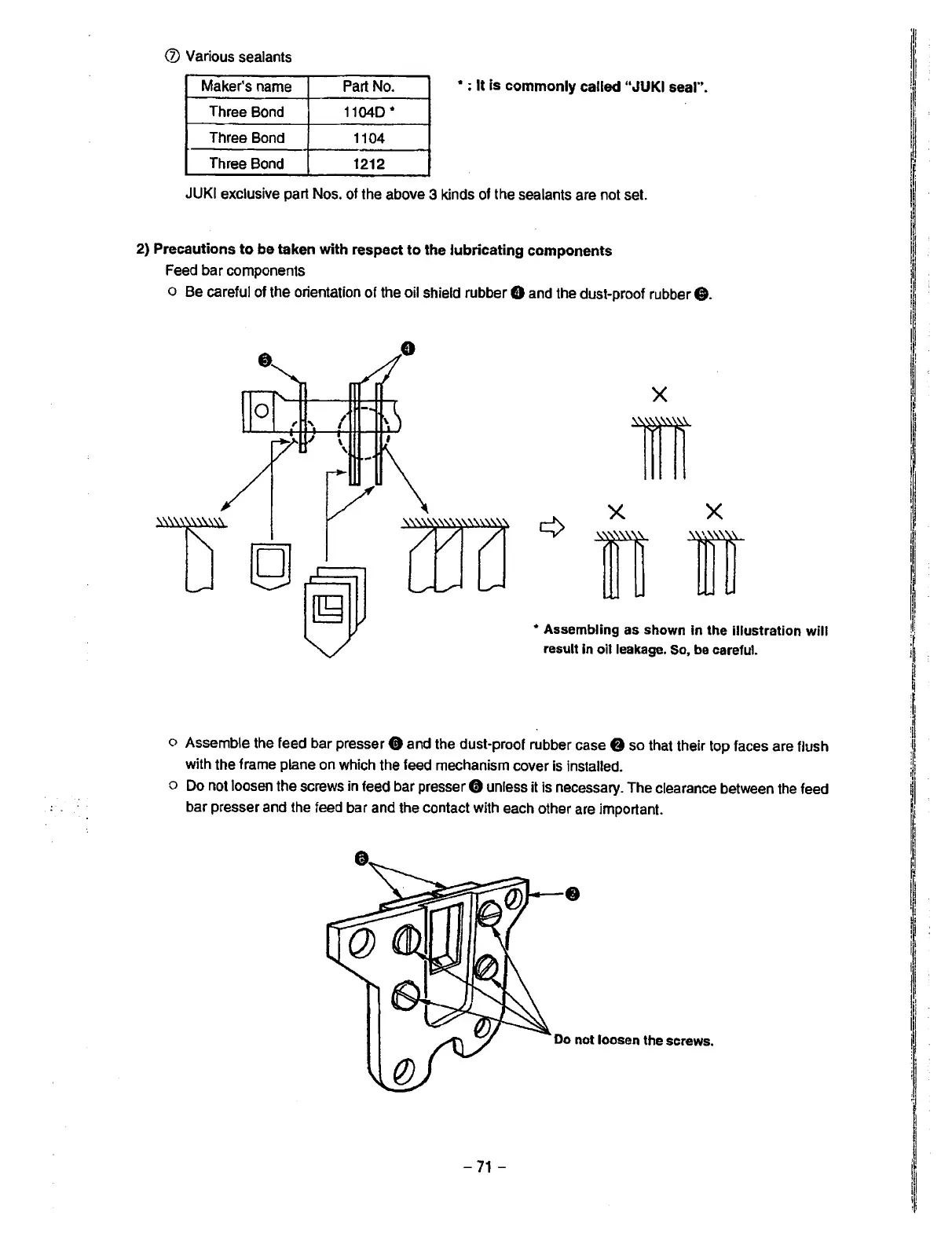

2) Precautions
to
be
taken with respect to the lubricating components
Feed
bar
components
o
Be
careful of the orientation of the oil shield rubber 8 and the dust-proof rubber 8 .
•
D
g
X
X X
n
1T
* Assembling
as
shown
in
the
illustration will
result in oil leakage. So, be careful.
o Assemble the feed bar presser 0 and the dust-proof rubber case @ so that their top faces are flush
with the frame plane on which the feed mechanism cover is installed.
o
Do
not loosen the screws in feed bar presser 8 unless it is necessary. The clearance between the feed
bar presser and the feed bar and the contact with each other are important.
Do not loosen the screws.
-71
-
I
i
JI
!I
1,1!
,j
