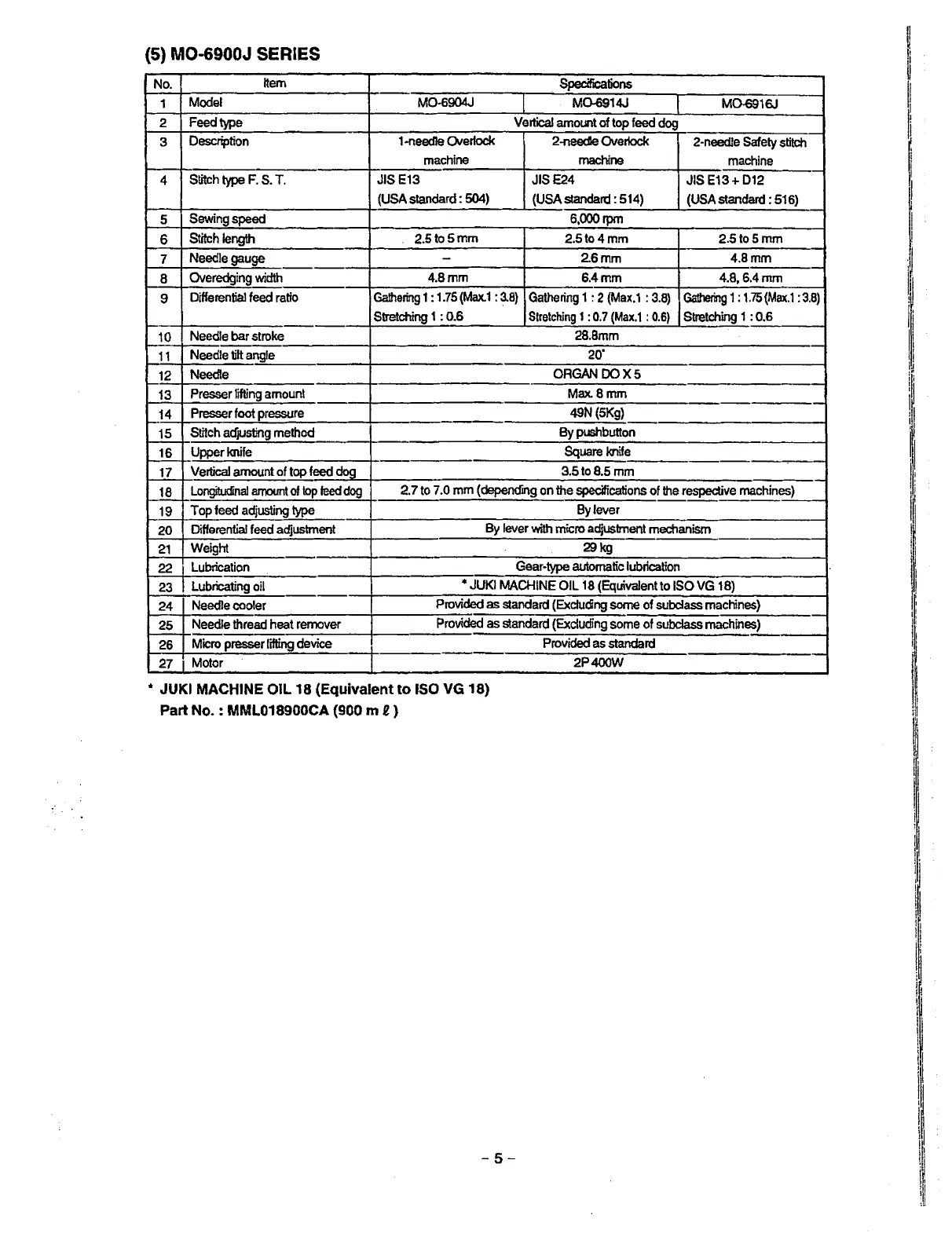

JUKI MO-6714S Engineer's Manual

(5) MO-6900J SERIES
No.
Item
. Specifications
1
Model M0-6904J
M0-6914J
M0-6916J
2
Feed type Vertical amount of top feed dog
3
Description 1-needle Orerlock 2-needle Overlock
2-needle Safety stitch
machine
machine
machine
4
Stitch type F. S. T. JIS E13
JISE24
JIS E13+ 012
(USA standard: 504)
(USA standard: 514)
(USA standard : 516}
5
Sewing speed 6,000rpm
6
Stitch length
2.5to5mm
2.5to4mm 2.5to5mm
7
Needle gauge
-
2.6mm
4.8mm
8
Overedging width
4.8mm 6.4mm
4.8,6.4mm
9
Differential feed ratio
Gathering 1 : 1.75 (Max.1 : 3.8)
Gathering 1 : 2 (Max.1 : 3.8) Gathering 1: 1.75 (Max.1: 3.8)
Stretching 1 : 0.6
Stretching 1: 0.7 (Max.1 : 0.6) Stretching 1 : 0.6
10
Needle bar stroke
28.8mm
11
Needle tilt angle
20·
12
Needle
ORGAN DOX5
13
Presser lifting amount
Max.8mm
14
Presser foot pressure
49N (5Kg)
15
Stitch acfJUsting method
By pushbutton
16
Upper knife
Square knife
17
Vertical amount of top feed doa
3.5to8.5mm
18
Longitudinal amount of top feed dog
2.7 to 7.0 mm (depending on the specifications of the respective machines)
19
Top feed adjusting type
By lever
20
Differential feed adjustment
By lever with micro adjustment mechanism
21
Weight
29kg
22
Lubrication
Gear-type automatic lubrication
23
Lubricating oil
* JUKI MACHINE OIL 18 (Equivalent to ISO VG 18}
24
Needle cooler
Provided as standard (Exduding some of subclass machines)
25
Needle thread heat remover
Provided as standard (Excluding some of subclass machines)
26
Micro presser lifting device
Provided as standard
27
Motor
2P400W
* JUKI MACHINE OIL 18 (Equivalent to ISO VG 18)
Part No. : MML018900CA (900 m £ )
