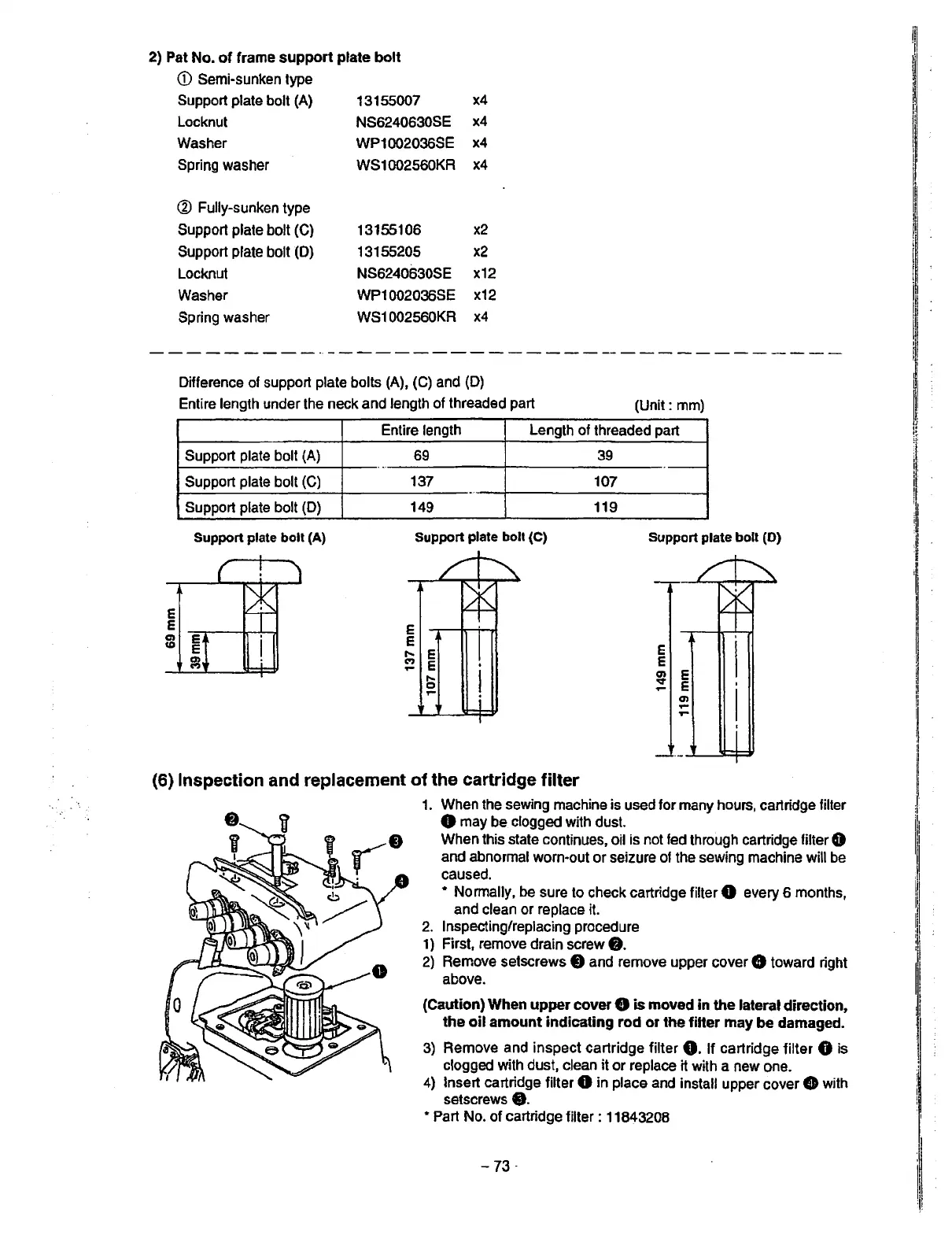

2)
Pat
No. of
frame
support plate bolt
CD
Semi-sunken type
Support plate bolt (A)
13155007
x4
Locknut
NS6240630SE
x4
Washer
WP1002036SE
x4
Spring washer
WS1002560KR
X4
CID
Fully-sunken type
Support plate bolt (C)
13155106
x2
Support plate bolt (D) 13155205 x2
Locknut NS6240630SE
x12
Washer
WP1002036SE
x12
Spring washer
WS1002560KR
x4
Difference of support plate bolts
(A),
(C) and (D)
Entire length under the neck and length of threaded part
(Unit:
mm)
Entire length Length
of
threaded part
Support plate bolt (A)
69
39
..
·-
Support plate
bolt
(C)
137
107
Support plate bolt (D)
149 119
Support plate
bolt
(A)
Support plate bolt (C)
Support plate
bolt
(0)
E
E
E
en
E
co
E
......
E
C')
E
E
-
,....
en
E
~
C
-
E
-
en
-
T'"
(6) Inspection and replacement of the cartridge filter
1. When the sewing machine is used for many hours, cartridge filter
0
may
be
clogged with dust.
When
this state continues, oil is not fed through cartridge filter O
and abnormal worn-out
or
seizure of the sewing machine will be
caused.
• Normally,
be
sure
to
check cartridge filter O every 6 months,
and
clean
or
replace it.
2. Inspecting/replacing procedure
1)
First, remove drain
screw&.
2)
Remove setscrews 8
and
remove upper
cover
8 toward right
above.
(Caution)
When
upper cover 9
is
moved
in
the lateral direction,
the oil amount indicating
rod
or
the fitter
may
be damaged.
3)
Remove
and
inspect
cartridge
filter
8.
If
cartridge
filter
O is
clogged with dust, clean
it
or
replace
it
with a new one.
4) Insert cartridge filter O
in
place and install
upper
cover
G with
setscrews
8.
" Part No.
of
cartridge filter : 11843208
-73
·
