– 1 –
ENGLISH
!
. SPECIFICATIONS
@

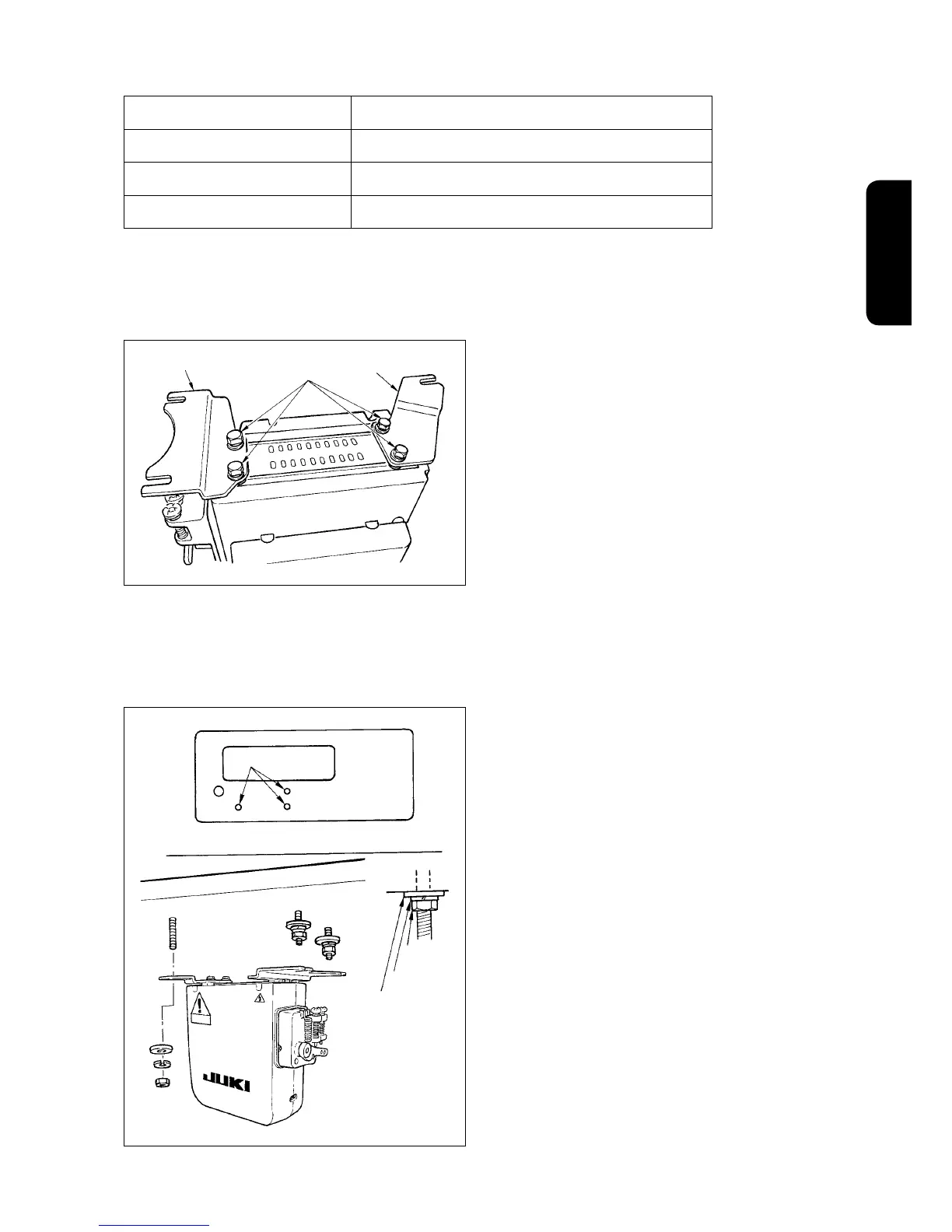

. SET-UP
Install the motor unit to the control box following the instructions below.
2. Installing the control box
Spring
washer
Nat
Convex
washer
Supply voltage Single phase 220 to 240V
Frequency 50 Hz / 60 Hz
Operating environment
Temperature : 0 to 40˚C Humidity : 90% or less
Input 320VA
1
Install the control box on the table with the tting bolt
asm. supplied with the unit as accessories.
At this time, insert the nuts and washers supplied
with the unit as accessories as shown in the gure
so that the control box can be securely xed on the
table.
1) Press three bolts
1
supplied with the unit as ac
-
cessories into the hanging bolt hole in the table
and x them.
2) Temporarily tighten convex washer, spring wash-
er and nut on the side where two bolts are at-
tached.
3) Hang the control box to the washer which has
been temporarily tightened, and attach convex
washer, spring washer and nut to the other bolt
on the opposite side.
4) After adjusting the installing position of the con-
trol box, securely tighten the respective nuts.
2
1
1. Installing the box bracket
Fix box bracket, right
1
and box bracket, left
2
in
the direction as shown in the gure using the bolts
supplied with the unit as accessories.
To Next Page
