13. Adjustment of bobbin winder

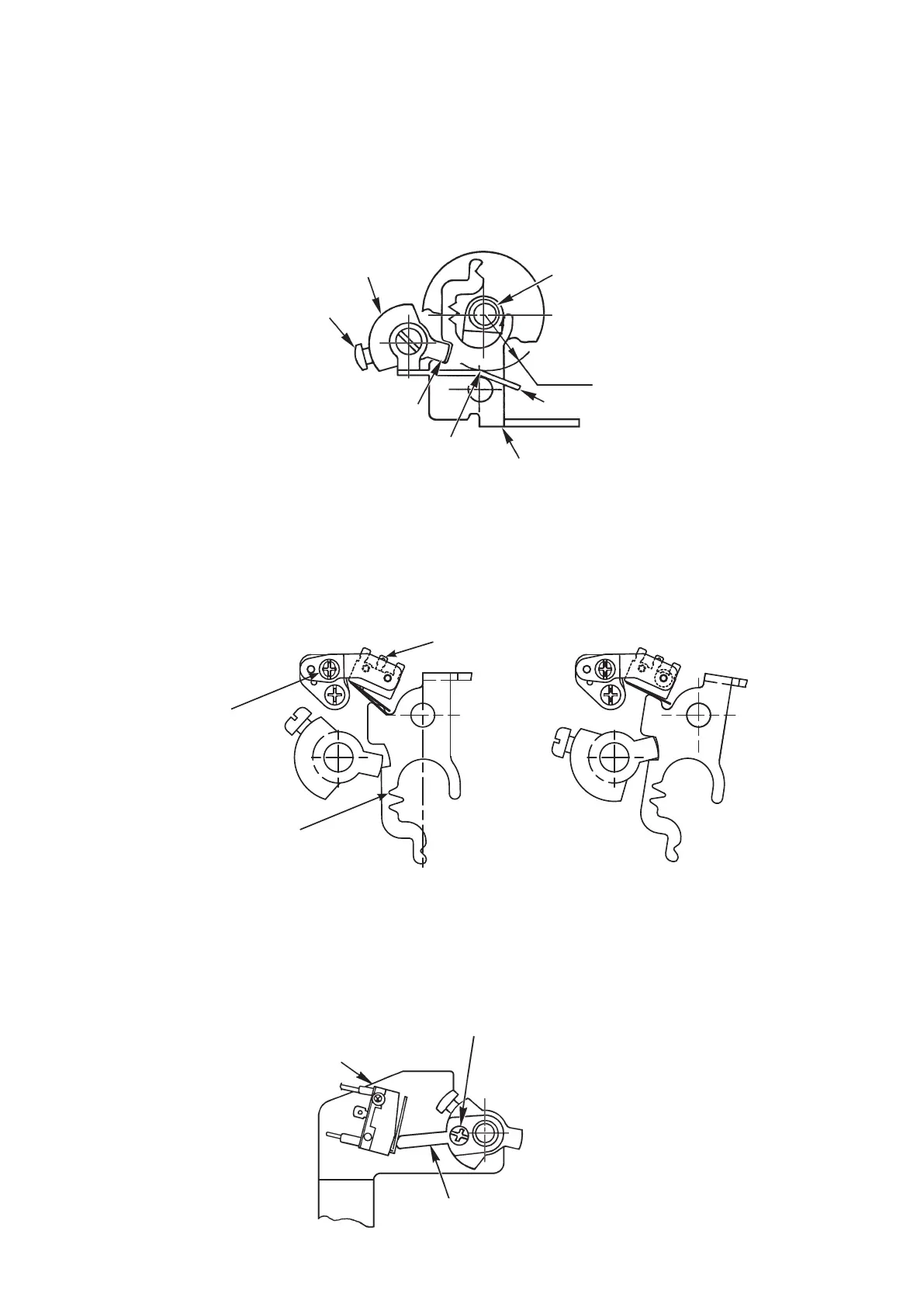

[Position of disengaging bobbin winder]
How to adjust
1. Set
❶
bobbin presser to the position where it is 16 mm away from
❷
bobbin winding shaft.
2. Tighten
❹
bobbin winder controller asm. with setscrew when concave portion of
❸
bobbin winding shaft
base adjusting plate is engaged with convex portion of
❹
bobbin winder controller asm..
[Position of micro switch]
How to adjust
1. Adjust so that
❶
micro SW should be OFF when bobbin winding shaft is ON and so that micro SW is se-
curely turned ON with
❷
bobbin winding shaft base adjusting plate when bobbin winding shaft is OFF. Then
tighten
❸
micro SW setscrew.
[Adjustment of amount of bobbin thread wound round bobbin]
How to adjust
1. Tighten
❶
bobbin winder switch contactor plate with setscrew at the position where
❷
bobbin winder switch
is turned OFF when amount of bobbin thread wound round bobbin becomes 18 mm in diameter.
❷
Bobbin winding shaft
base adjusting plate
Bobbin winding shaft OFF (micro SW ON)
To strike
❸
Bobbin winding shaft base adjusting plate
❶
Bobbin presser
❷
Bobbin winding shaft
❹
Bobbin winder controller asm.
Setscrew
To engage with each other
16 mm
Bobbin winding shaft ON (micro SW OFF)
❸
Micro SW
setscrew
❶
Micro SW
❷
Bobbin winder SW
Bobbin winder SW contactor setscrew
❶
Bobbin winder SW contactor plate
