Automatic Thread Trimmer Mechanism

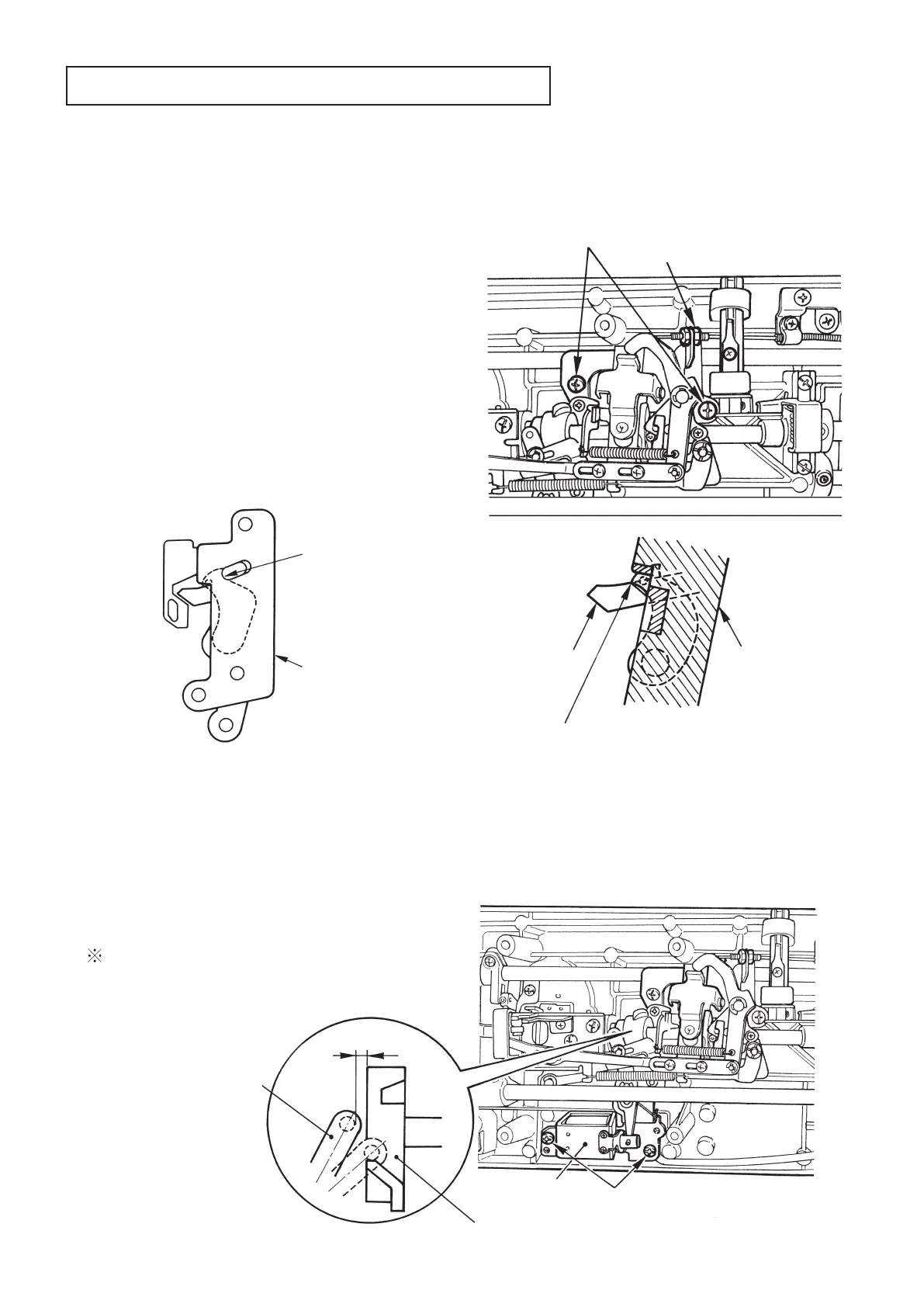

1. Positioning of moving knife arm installing plate
(Adjustment of position of moving knife)
○ Loosen
❶
nut of setscrew
○ Loosen
❷
setscrews in installing plate and move
installing plate to the right or left to obtain position
A
.
○ Tighten
❷
setscrews in installing plate.
Reference (substitution)
Position of moving knife (see from under side of
bed.)
Overlapping amount of slot
❹
of moving knife base
with portion R of moving knife is 0 to 0.5 mm.
(To such an extent that portion R of moving knife is
slightly seen from slot
❹
)
2. Installing position of thread trimmer SOL (solenoid)
○ Move
❸
thread trimmer solenoid asm. to the right
and left to adjust so that clearance between
❶
thread trimmer auxiliary link and
❷
thread trim-
mer auxiliary cam is 0.5 to 1.0 mm, and tighten it
with
❹
setscrews.
When thread trimmer solenoid asm. is set to ON,
it has to interlock thread trimmer auxiliary cam.
Moving knife base
❹
❷
Moving knife arm
installing plate setscrew
❶
Nut of setscrew
❸
Thread trimmer
solenoid
❹
Thread trimmer solenoid setscrew
0.5 to 1.0
Moving knife base
Counter knife
Align top end of moving knife with border of black
coloring section and polished plane of counter knife.....
A
Figure observed from the
rear after removing hook.
❷
Thread trimmer auxiliary cam
❶
Thread trimmer
auxiliary link
