JVC DLA-RS2100 User Manual

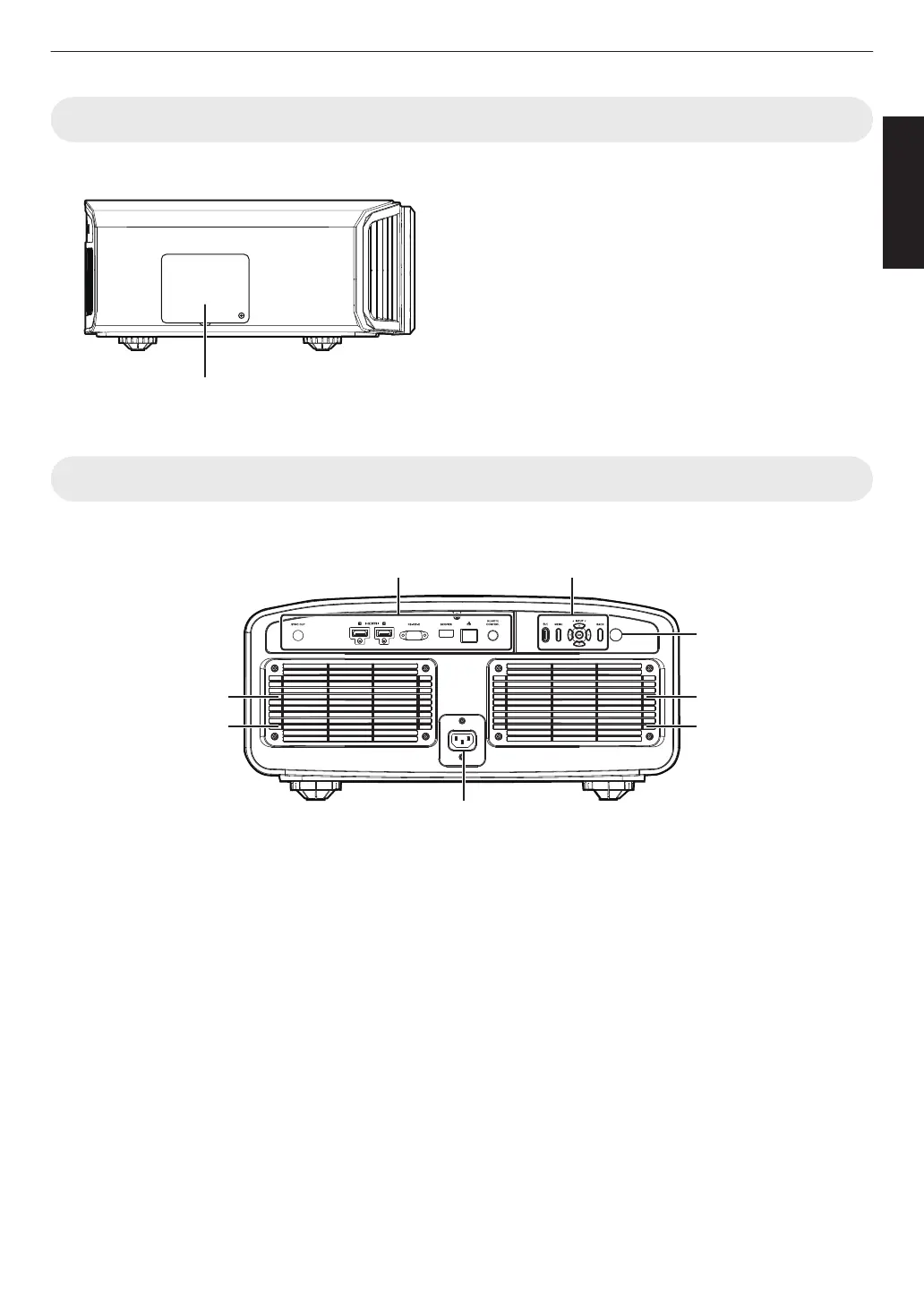

Main Unit - Side
4 8
F
Lamp Cover
When replacing the light source lamp, remove this cover.
(P. 91)
F
Main Unit - Rear
x y z 5 6 7
I
K
L
K
L
J
H
G
G
Input terminals
For details
on the terminals, refer to “Main Unit - Input
Terminals”P. 23.
H
Operation panel
For more details, please refer to the “Operation
panel”P. 22.
I
Remote Sensor (rear)
Please aim the remote control at this area when using
it.
* There is also a remote sensor at the front.
J
Power input terminal
Connect the supplied power cord to this terminal.
K
Air Inlets
The inlets take in air to cool down the internal
temperature.
Do
not block the inlet. Do not blow hot air on the inlet.
Doing so may cause the unit to malfunction.
L
Filter Cover
To perform maintenance of the filter, remove this
cover. (P. 94)
21
Getting Started

JVC DLA-RS2100 Specifications

General

Lens Shift	Vertical: ±80%, Horizontal: ±34%
Resolution	4096 x 2160
Contrast Ratio	100, 000:1
HDR Support	Yes
Zoom	2x (Motorized)
Display Technology	D-ILA
3D Support	Yes
HDMI Inputs	2 (48 Gbps)
