JVC DLA-RS2100 User Manual

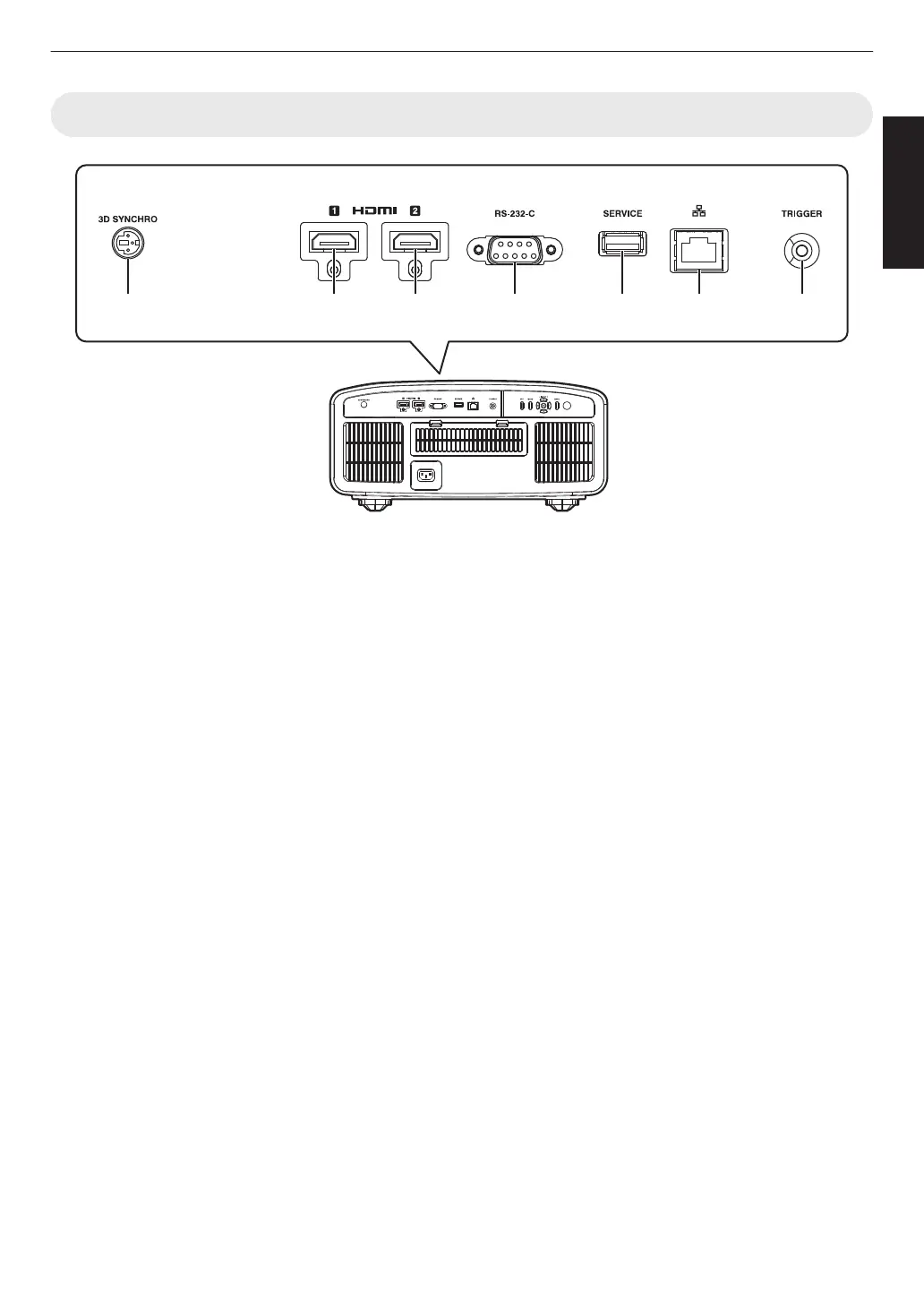

Main Unit - Input Terminals
A B C D E F G
A
[3D SYNCHRO] terminal
By connecting
a 3D Synchro Emitter (sold separately)
to this terminal, you can view 3D movies.
B
[HDMI 1] input terminal
C
[HDMI 2] input terminal
For connecting to devices that support HDMI output.
(P. 30)
D
[RS-232C] terminal (D-sub 9-pin
male)
The projector can be controlled by connecting a PC to
this terminal.
E
[SERVICE] terminal
For updating the software using a commercially
available USB flash drive.
F
[LAN] terminal (RJ-45)
The projector can be controlled by connecting it to a
PC through the computer network for control
commands to be sent to the projector.
G
[TRIGGER] terminal
Output
terminal for DC 12 V, 100 mA power supply. It
is used for sending output signals to control devices
such as an elevating screen that is equipped with a
trigger function.
Note that improper connection may damage the
projector. (Tip=DC +12 V, Sleeve=GND)
23
Getting Started

JVC DLA-RS2100 Specifications

General

Lens Shift	Vertical: ±80%, Horizontal: ±34%
Resolution	4096 x 2160
Contrast Ratio	100, 000:1
HDR Support	Yes
Zoom	2x (Motorized)
Display Technology	D-ILA
3D Support	Yes
HDMI Inputs	2 (48 Gbps)
