Network
For specifying the settings for external control from a PC or smartphone.
Setting Description
DHCP Client On Obtains the IP address automatically from the DHCP server inside the connected
network.
Off For configuring the network settings manually.
IP Address For configuring the IP address.
Subnet Mask For configuring the subnet mask.
Default Gateway For configuring the default gateway.
MAC Address Displays the MAC address of the unit.
Set Applies the network settings.
Control4 SDDP Set to “On” to allow Control4 SDDP to detect this unit.
When this
unit is not connected to an environment under the control of the controller
and Control4 SDDP from the Control4 Corporation, set this to “Off”.
Glossary of Network Terminology
DHCP :
Abbreviation for Dynamic Host Configuration Protocol. This is a protocol for the network
to assign an IP address automatically to the connected device.
IP Address : Numeric characters for identifying the device that is connected to the network.
Subnet Mask : Numeric characters that define the bit count used for the network address that is a
segment of the IP address.
Default Gateway : Server for communicating beyond the network that is divided by the subnet mask.
MAC Address : Abbreviation for Media Access Control address. This is a number that is unique to each
network adapter. Each of the network adapters is assigned with a unique MAC address.

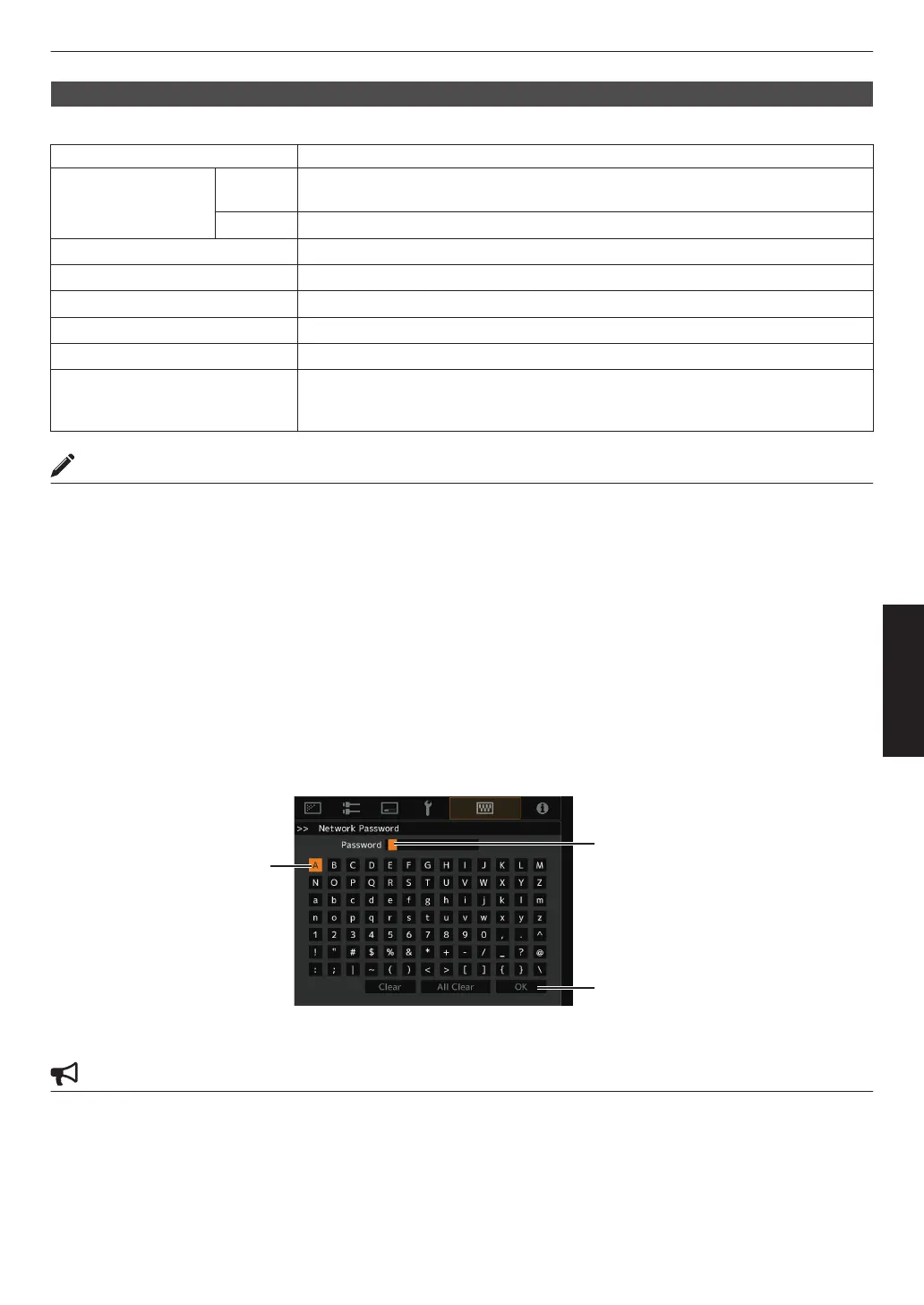

Network Password
DLA-NZ9BK, DLA-NZ8BK, DLA-NZ7BK, DLA-NP5BK, DLA-RS4100K, DLA-RS3100K, DLA-RS2100K, DLA-
RS1100K only
For configuring the password during LAN connection.
0
Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols.
0
Enter a password with at least 8 characters and not more than 10 characters.
After entry is complete, select
“OK” and press the [OK] button
Selection Cursor
Input Cursor
CAUTION
0
Configuration of a network password is necessary before connecting to the LAN terminal.
