58 EN
Master Page: Left
GR-DVP7-5EG_37-79.fm Page 58

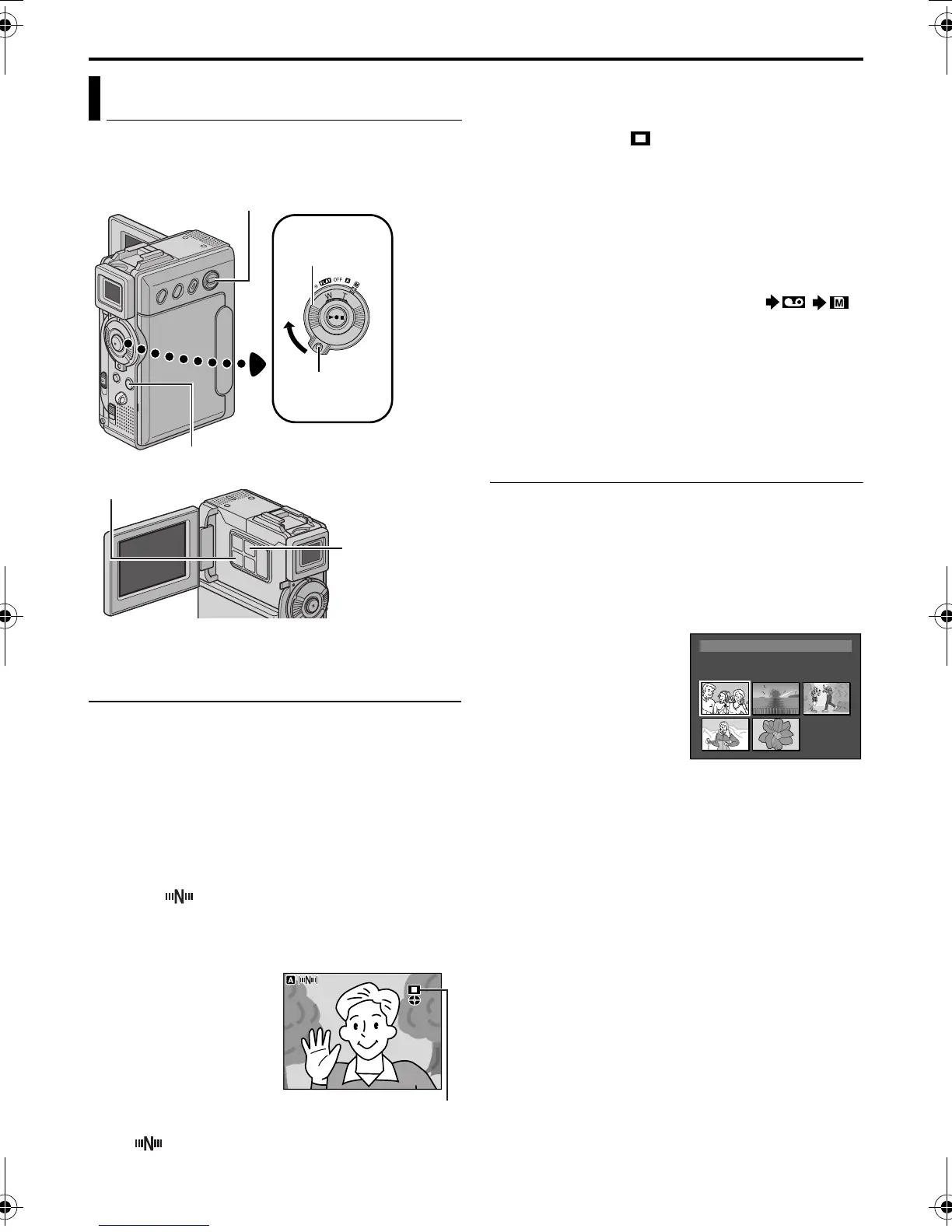

The Navigation Function helps you check tape
contents by making thumbnail images on a memory
card.
To make thumbnail images during tape
recording
1
Load a cassette. (墌 pg. 16)
2 Load a memory card. (墌 pg. 17)
3 Set the VIDEO/MEMORY switch to “VIDEO”.
4 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
5 Set “NAVIGATION” to the desired navigation
storing time. (墌 pg. 38, 47)
● The “ ” appears blinking on the screen.
Wait until it stops blinking. If it does not stop
blinking after a while, check if a memory card
is loaded.
6 Press the Recording
Start/Stop Button to
start tape recording.
The image of the point
where recording is
started is captured.
● If the Recording
Start/Stop button is
pressed before
“” stops
blinking, the image
of the point where the loaded memory card is
recognised is captured.
● If the recording time is over the navigation time
set in step 5, “ ” appears briefly and the
captured image is stored in the memory card as
a thumbnail image.
7 Press the Recording Start/Stop Button to stop tape
recording.
NOTES:
● The remaining number of storable thumbnail
images also appears on the screen when it reaches
10 or less. If “REC SELECT”is set to “ / ”
in DSC Menu, the number shows how many
640 x 480 pixel images can be stored.
● If “5S” is set to “5S” or “Anim.” in MANUAL
menu, the NAVIGATION function will not work
properly.
To find scenes on tape using thumbnail images
(NAVIGATION Search)
1
Load a cassette. (墌 pg. 16)
2 Load a memory card. (墌 pg. 17)
3 Set the VIDEO/MEMORY switch to “VIDEO”.
4 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
5 Press NAVI during video playback or stop mode.
● The loaded cassette’s
NAVIGATION
thumbnail image
screen appears.
● Turn the SHUTTLE
SEARCH Ring to the
left (3) to display
the previous page.
Turn the SHUTTLE SEARCH Ring to the right
(5) to display the next page.
6 Press + or – to select the desired image, and press
SET/SELECT.
● The “NAVIGATION SEARCH” indication
appears blinking and the camcorder starts
searching the tape for the relevant point of the
selected thumbnail image.
To cancel NAVIGATION search midway...
Press 4/9 or 8, or turn the SHUTTLE SEARCH Ring
to the left (3) or to the right (5).
CAUTION:
Do not remove the memory card or perform any
other operation (such as turning off the camcorder)
during deletion. Also, be sure to use the provided
AC Power Adapter/Charger, as the memory card may
be corrupted if the battery becomes exhausted
during deletion. If the memory card becomes
corrupted, initialise it.
NAVIGATION Function
Power Switch
MENU Button
SNAPSHOT Button
VIDEO/MEMORY Switch
Lock Button
NAVI Button
PL 01 min
min
0
PAUSE
PAUSE
PL 01 min 0
PAUSE
Displayed while the
captured image is being
stored in the memory
card.
TC : 1 3 : 23 : 15
35 2.4DATE : 2 :’30:229
ONITNAV I GA
1 2 3
4 5 006
FEATURES FOR RECORDING (cont.)
