8. PLAYBACK MODE
8-5 Outputting CH-3, CH-4 Channel Audio
The DV format is capable of recording up to 4 channels when the 12-bit, 32 kHz sampling frequency is employed. The GY-DV5000
records audio on the two channels CH-1 and CH-2. (4-channel recording is possible in the case of DV input.)
When the GY-DV5000 is used for playback of a tape that was recorded on another unit with audio recorded on the CH-3 and CH-
4 channels, the AUDIO SELECT item on the AUDIO/VIDEO menu screen must be set.
MONITOR
EDITSEARCH
FILTER
STATUS
SHUTTER
MENU
AUTO IRIS
BACK L
NORMAL
SPOT L
STRETCH
NORMAL
COMPRESS
FULL AUTO BLACK LOLUX
MODE
POWER
ON OFF
VTR
OPEN
VTR
CAM
1
3200K
5600K
5600K
5600K
ND /
/
ND
2
.3
.4
1
8
1
64
CH-1
AUDIO INPUT
AUDIO SELECT
CH-2
CH-1 CH-2
FRONT
REAR
AUTO
MANUAL
AUDIO
LEVEL
CH-1 CH-2
PULL
OPEN
LCD BRIGHT DISPLAY
STATUS
SHUTTER
MENU
AUTO IRIS FULL AUTO
5600K
5600K
/ ND
.3
.4
1
64
––– MENU –––
AUDIO/VIDEO..
LCD/VF..
TC/UB/CLOCK..
OTHERS..
FILE MANAGE..
MENU ALL RESET CANCEL
EXIT
––– AUDIO/VIDEO –––
TEST TONE ON
AUDIO MODE 32K
A.OUT AT SEARCH ON
CH1 FRONT VR ENABLE
WIND CUT BOTH
AUDIO REF.LEVEL –20dB
AUDIO SELECT CH3/4
AUDIO MONITOR MIX
SET UP 7.5%
PAGE BACK

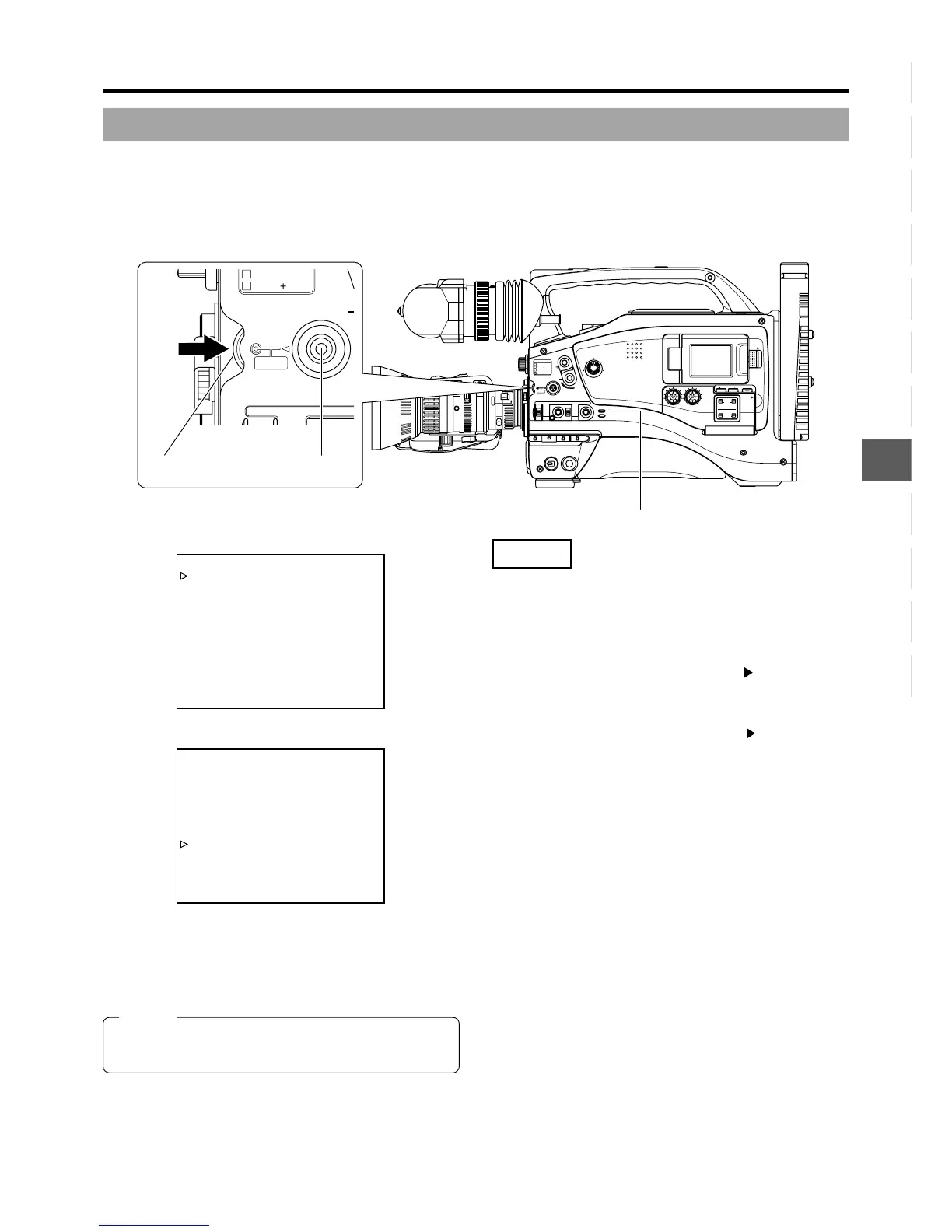

AUDIO/VIDEO menu screen
MEMO:
After-recording on the CH-3 and CH-4 channels is not
possible.
Setting
■ Confirm that the GY-DV5000 is in the VTR mode. (VTR
indicator: On)
1. Press the STATUS button for 1 second or longer to display
the TOP MENU screen.
2. Rotate the SHUTTER to align the cursor ( ) with the AUDIO/
VIDEO menu, and then press the SHUTTER dial.
● The AUDIO/VIDEO menu screen appears.
3. Rotate the SHUTTER to align the cursor ( ) with the AUDIO
SELECT item, and then press the SHUTTER dial.
● The setting area of the selected item starts blinking.
4. Rotate the SHUTTER dial to change the setting.
CH1/2 : To reproduce the sound (CH-1, CH-2)
recorded during shooting.
MIX : To reproduce the sound recorded during
shooting (CH-1, CH-2) and the after-recorded
sound (on CH-3 and CH-4) simultaneously.
CH3/4 : To reproduce the sound after-recorded on CH-
3 and CH-4.
5. When the SHUTTER dial is pressed, the set value is
confirmed.
6. To return to the normal screen, use either of the following
methods.
● Press the STATUS button
or
● Return to the TOP MENU screen and then select the EXIT
item before pressing the SHUTTER dial.
STATUS button
VTR indicator
TOP MENU screen
SHUTTER dial
