JVC KW-AVX820 User Manual

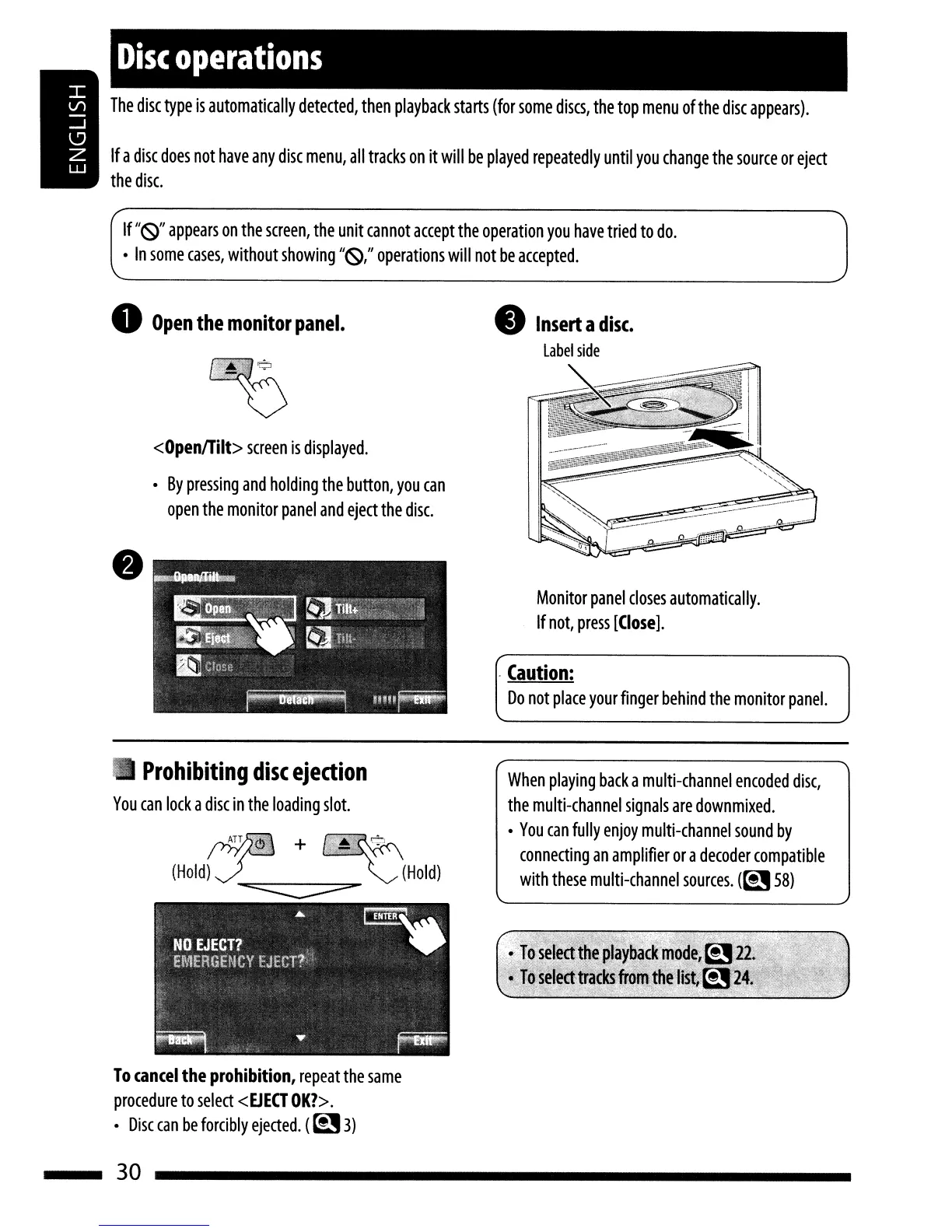

Disc operations
The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears).
If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject
the disc.
If "~" appears on the screen, the unit cannot accept the operation you have tried to do .
•
In some cases, without shOWing "~," operations will not be accepted.
__ Open the monitor panel.
<OpenlTilt> screen is displayed.
• By pressing and holding the button, you can
open the monitor panel and eject the disc.
•
• Prohibiting disc ejection
You can lock a disc in the loading slot.
(HOld~ + li41~(HOld)
~
To cancel the prohibition, repeat the same
procedure to select <EJECT OK?>.
• Disc can be forcibly ejected. (@J 3)
30
• Insert a disc.
Label side
Monitor panel closes automatically.
If not, press [Close] .
. Caution:
00 not place your finger behind the monitor panel.
When playing back a multi-channel encoded disc,
the multi-channel signals are down mixed .
•
You can fully enjoy multi-channel sound by
connecting an amplifier or a decoder compatible
with these multi-channel sources. (@J 58)

JVC KW-AVX820 Specifications

General

Audio system	DTS/Dolby Digital/MPEG
MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Impedance	4 Ω
Product color	Black
Audio output channels	4.0 channels
Equalizer bands quantity	7
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	95 dB
Display type	LCD
Display diagonal	7 \
Digital audio optical out	1
I/O ports	1 x USB, 1 x Composite Video Out

Weight and Dimensions

Weight	3300 g
Dimensions (WxDxH)	188 x 10 x 117 mm
