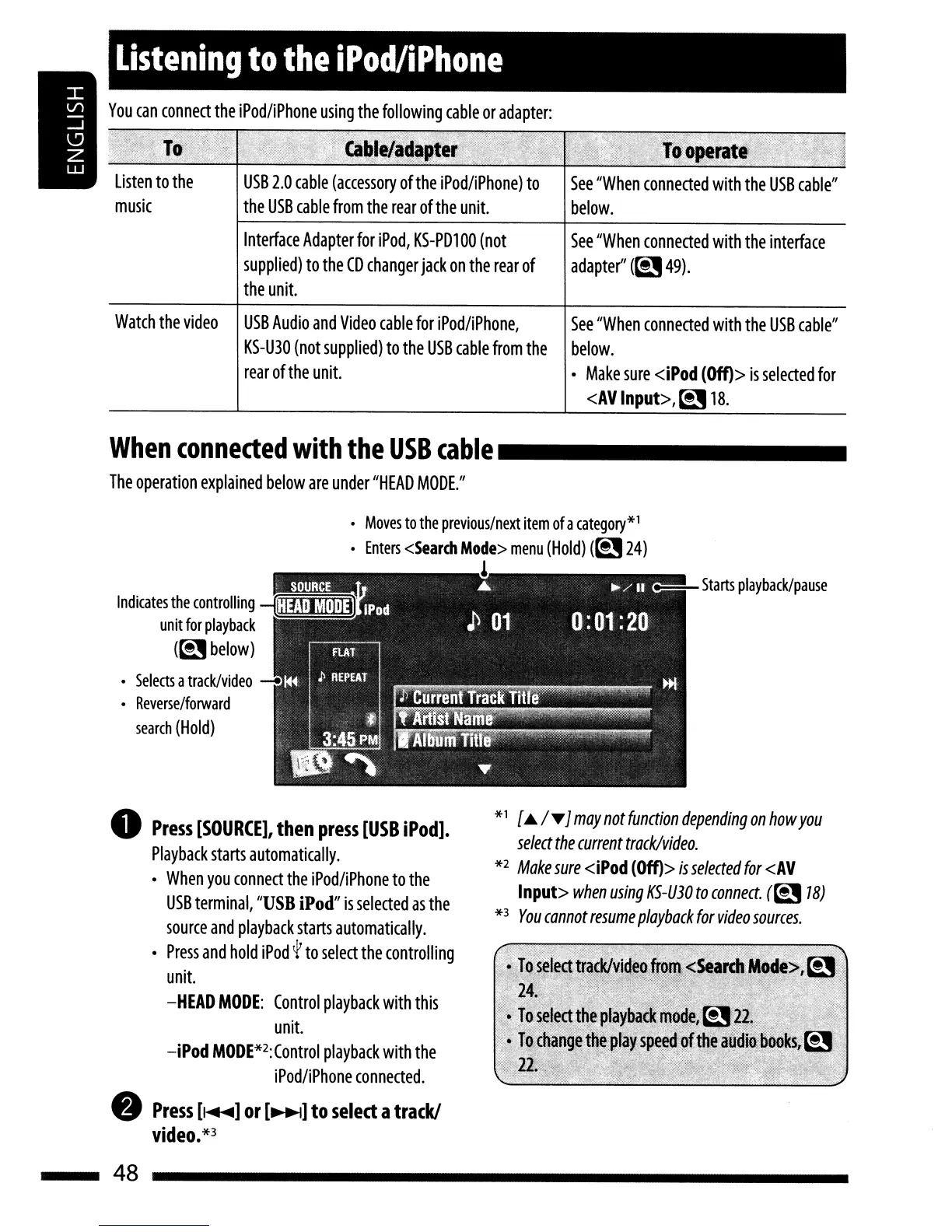

Listening to the iPod/iPhone
You can connect the iPod/iPhone using the following cable or adapter:
music
Watch the video
Interface Adapter for iPod, KS-PD100 (not
supplied) to the CD changer jack on the rear of
the unit.
USB Audio and Video cable for iPod/iPhone,
KS-U30 (not supplied) to the USB cable from the
rear of the unit.
See "When connected with the interface
adapter" (~49).
See "When connected with the USB cable"
below.
• Make sure <iPod (Off» is selected for
<AVlnput>,~ 18.
When connected with the USB cable _
The operation explained below are under "HEAD MODE."
• Moves to the previous/next item of a category*l
• Enters <Search Mode> menu (Hold) (~24)
!
• Selects a track/video -
• Reverse/forward
search (Hold)
• Press [SOURCE], then press [USB iPod].
Playback starts automatically.
• When you connect the iPod/iPhone to the
USB terminal, "USB iPod" is selected as the
source and playback starts automatically.
• Press and hold iPod tf to select the controlling
unit.
-HEAD MODE: Control playback with this
unit.
-iPod MODE*2:Control playback with the
iPod/iPhone connected.
8 Press [~] or [~] to select a track!
video. *3
48
*
1
[
... / ... ] may not function depending on how you
select the current track/video.
*2 Make sure <iPod (Off» is selected for <AV
Input> when using KS-U30 to connect. (~ 18)
*3 You cannot resume playback for video sources.

JVC KW-AVX820 Specifications

General

Audio system	DTS/Dolby Digital/MPEG
MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Impedance	4 Ω
Product color	Black
Audio output channels	4.0 channels
Equalizer bands quantity	7
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	95 dB
Display type	LCD
Display diagonal	7 \
Digital audio optical out	1
I/O ports	1 x USB, 1 x Composite Video Out

Weight and Dimensions

Weight	3300 g
Dimensions (WxDxH)	188 x 10 x 117 mm
