JVC KW-AVX820 - Basic Operations; Monitor Panel Detach;Attach Guide

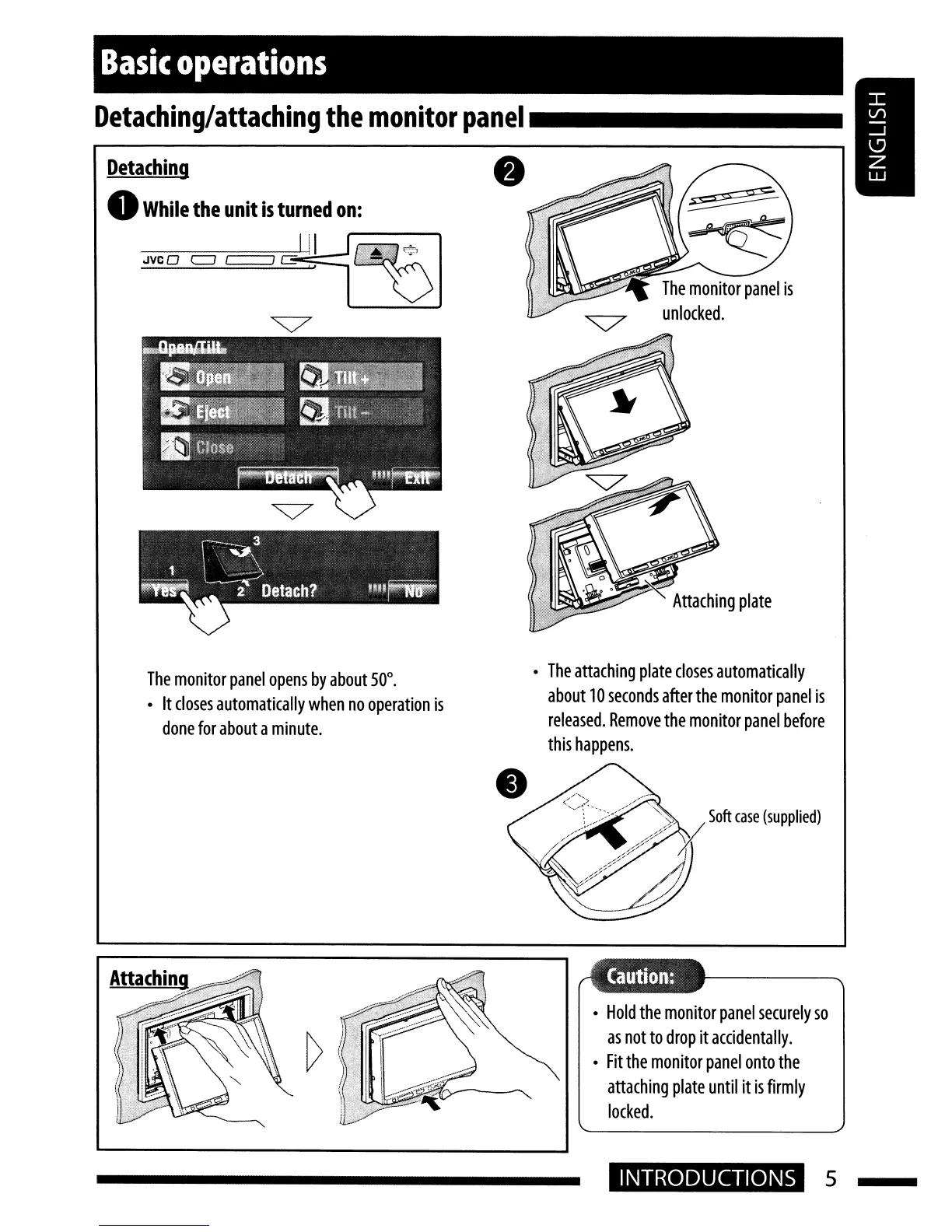

Detaching/attaching the monitor panel _
The monitor panel is
unlocked .
.
~ Attaching plate
•
"
UI
I {3
.. veo c:.J I
Detaching
• While the unit is turned on:
Basic operations
The monitor panel opens by about 50°.
• It closes automatically when no operation is
done for about a minute.
• The attaching plate closes automatically
about 10 seconds after the monitor panel is
released. Remove the monitor panel before
this happens.
• Hold the monitor panel securely so
as not to drop it accidentally.
• Fit the monitor panel onto the
attaching plate until it is firmly
locked.
INTRODUCTIONS
5
