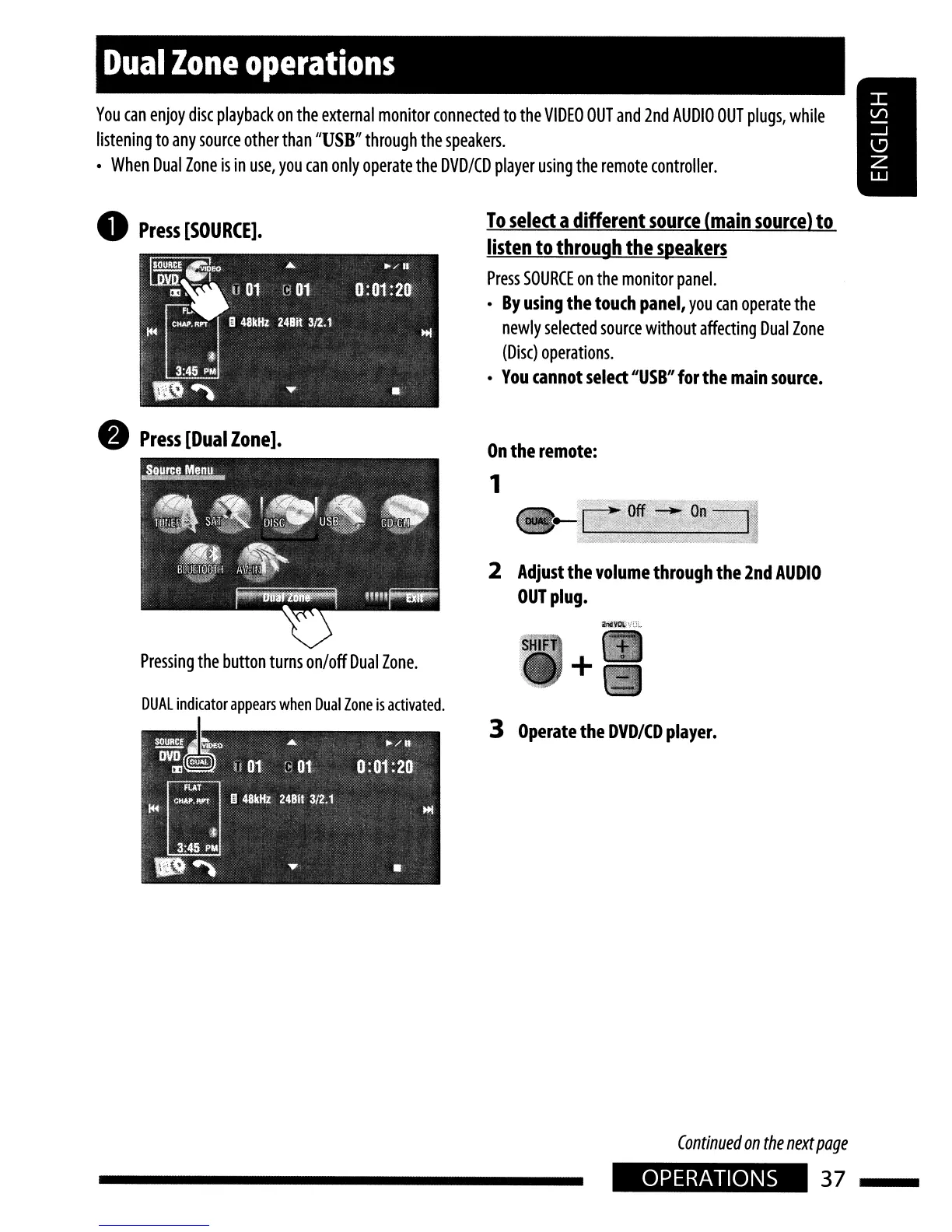

Dual Zone operations
You can enjoy disc playback on the external monitor connected to the VIDEO OUT and 2nd AUDIO OUT plugs, while
listening to any source other than "USB" through the speakers .
•
When Dual Zone is in use, you can only operate the DVD/CO player using the remote controller.
__ Press [SOURCE].
To select a different source (main source~
listen to through the speakers
Press SOURCE on the monitor panel.
• By using the touch panel, you can operate the
newly selected source without affecting Dual Zone
(Disc) operations .
• You cannot select "USB" for the main source.
8 Press [Dual Zone].
On the remote:
+
3 Operate the DVDICD player.
2ndYQI; VOL
2 Adjust the volume through the 2nd AUDIO
OUT plug.
1
DUAL indicator appears when Dual Zone is activated.
Pressing the button turns on/off Dual Zone.
Continued on the next page
OPERATIONS
37

JVC KW-AVX820 Specifications

General

Audio system	DTS/Dolby Digital/MPEG
MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Impedance	4 Ω
Product color	Black
Audio output channels	4.0 channels
Equalizer bands quantity	7
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	95 dB
Display type	LCD
Display diagonal	7 \
Digital audio optical out	1
I/O ports	1 x USB, 1 x Composite Video Out

Weight and Dimensions

Weight	3300 g
Dimensions (WxDxH)	188 x 10 x 117 mm
