JVC KW-M565DBT User Manual

Connection/Installation
49English

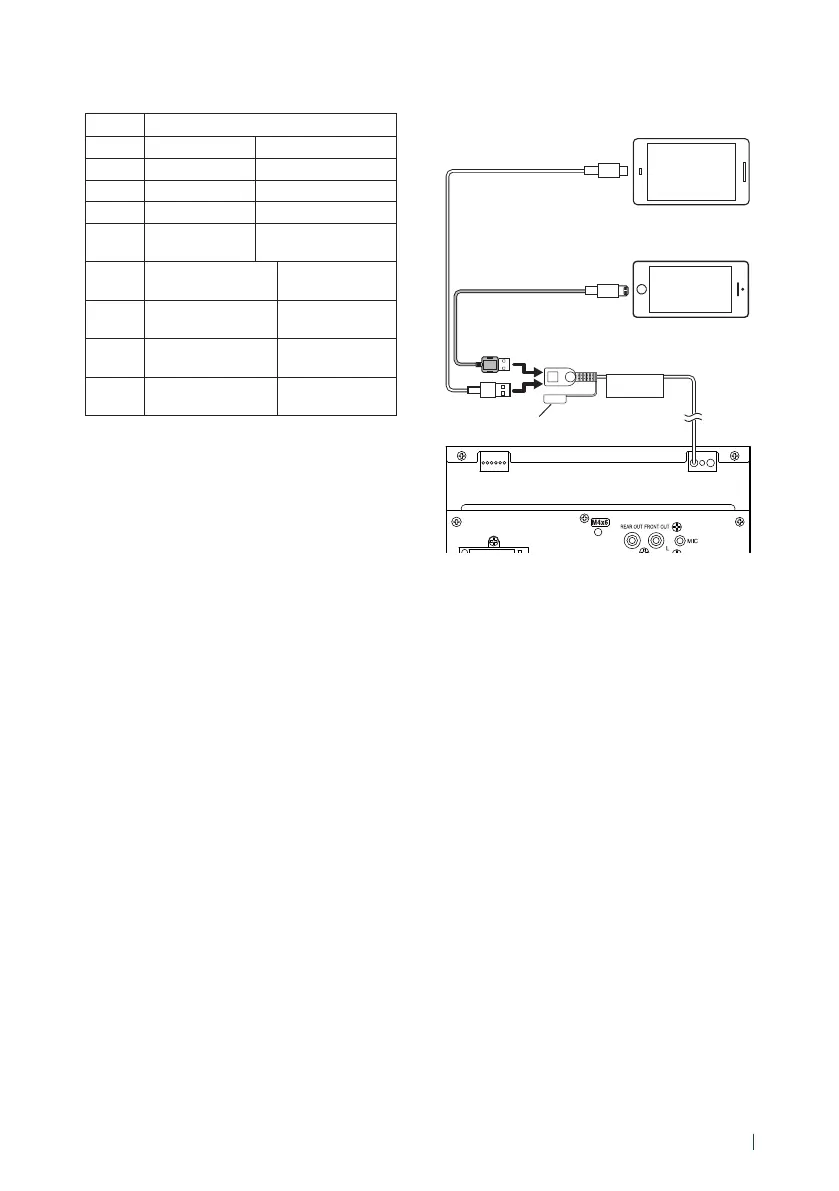

Ñ Connecting an iPhone/Android
5V
=
1.5A
KS-U62 (0.8m)
[3]
USB cable
[2]
iPhone
[2]
Lightning connector
Android smartphone
[2]
Cap
USB terminal
[1]
(1.0 m)
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
Ñ ISO Connector function guide
Pin Color and function
A-4 Yellow Battery
A-5 Blue Power Antenna
[1]
A-6 Orange/White Illumination
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground)
Connection
B-1/ B-2 Purple (+) /
Purple/Black (–)
Rear Right
B-3/ B-4 Gray (+) /
Gray/Black (–)
Front Right
B-5/ B-6 White (+) /
White/Black (–)
Front Left
B-7/ B-8 Green (+) /
Green/Black (–)
Rear Left
[1]
Max. 150 mA, 12V
• Speaker Impedance: 4-8 Ω
! CAUTION
Before you connect the commercially
available ISO connectors to the unit, check the
following condition:
• Make sure that the pin assignment of the
connector matches with the JVC unit.
• Take extra notice of the power wire.
• In case battery wire and ignition wire are not
corresponding then change them accordingly.
• In case the car does not have an ignition wire,
use a commercially available interface.
!B5H-0357-06_JVC_KWM_E_En.indb 49 2020/08/21 13:43

JVC KW-M565DBT Specifications

General

AM band range	531 - 1.611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, DAB+, FM, LW, MW
Radio Data System (RDS)	Yes
Preset stations quantity	20
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	-
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	- W
USB port position	Rear
Bluetooth profiles	HFP, PBAP
USB ports quantity	1
Bluetooth functions	Audiostreaming, Handsfree calling
Audio formats supported	AAC, FLAC, MP3, SBC, WAV, WMA, WMV
Video formats supported	H.264, MPEG1, MPEG2, MPEG4
Display diagonal	6.8 \
Display resolution	640 x 480 pixels

Weight and Dimensions

Weight	1300 g
